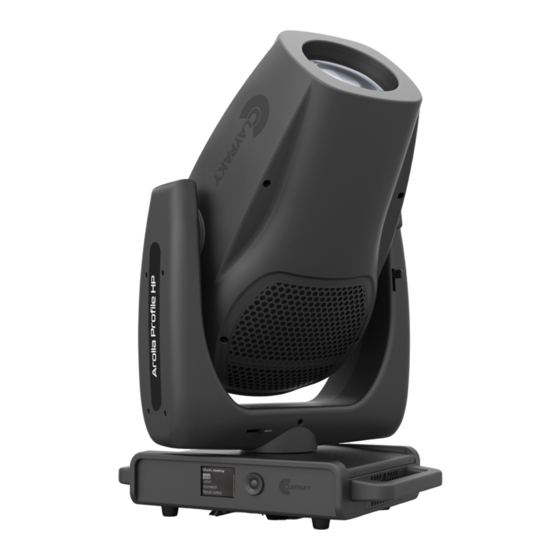

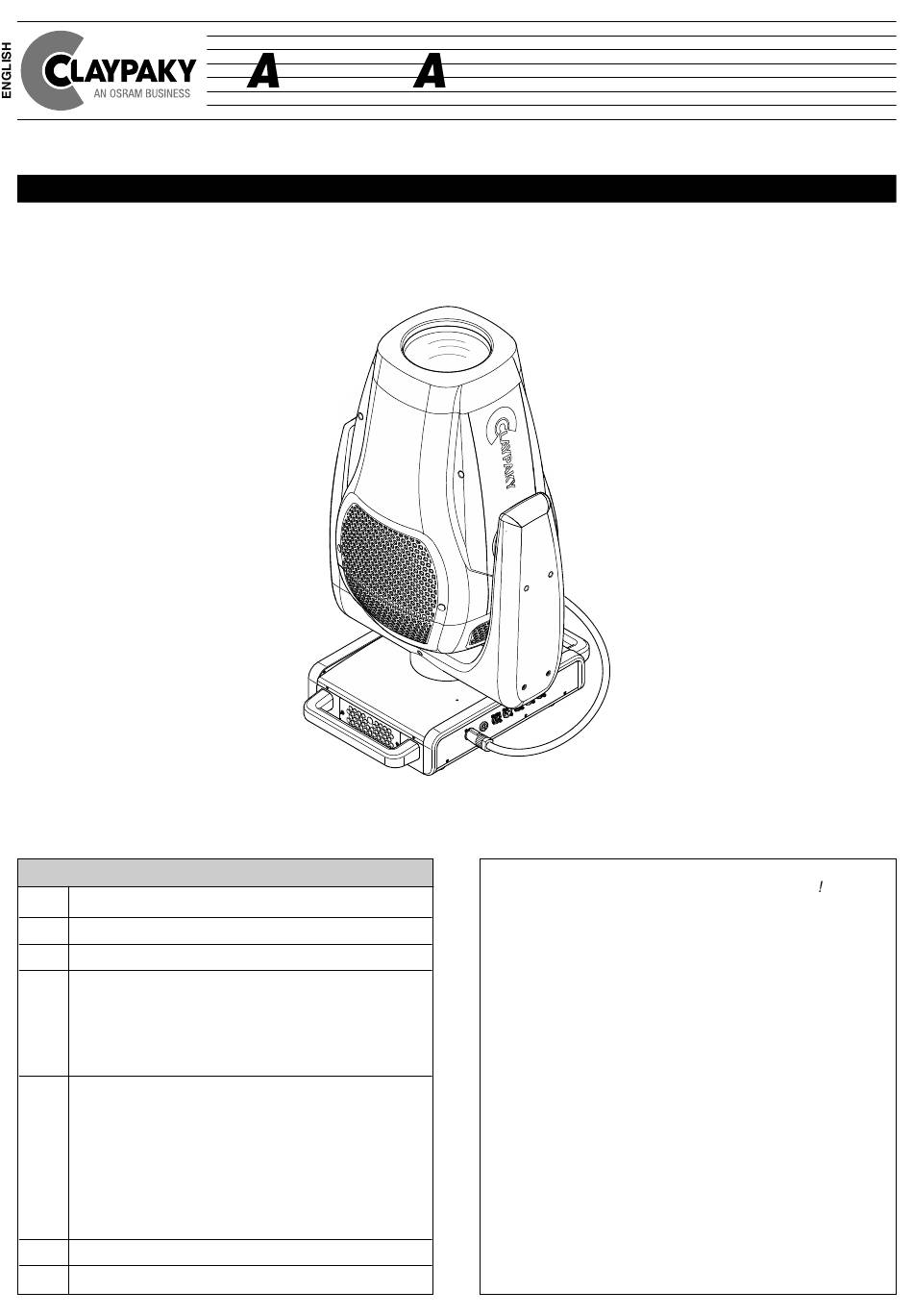

ROLL PROFILE HP
INSTRUCTION MANUAL
INDEX
Congratulations on choosing a Claypaky product
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
CL3014
Advertisement
Table of Contents
Related Manuals for Claypaky CL3014
Summary of Contents for Claypaky CL3014
-
Page 1: Table Of Contents
Safety information Please note that this product, as all the others in the Unpacking and preparation rich Claypaky range, has been designed and made with total quality to ensure excellent performance and best Installation and start-up 3.1 Installing the fixture meet your expectations and requirements. -
Page 2: Safety Information
1. SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link: www.claypaky.com Ref: FIS024 - Safety Information Arolla Profile HP INFORMAZIONI DI SICUREZZA... -
Page 3: Unpacking And Preparation
2. UNPACKING AND PREPARATION 2 x 183102/805 Packing contents - Fig. 1 UNLOCKED LOCKED LOCKED UNLOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 TILT Mechanism Lock and Release (every 45°) - Fig. 3 ROLL PROFILE HP... -
Page 4: Installation And Start-Up
3. INSTALLATION AND START-UP 3.1 Installing the fixture Installing the projector - Fig. 4 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. -
Page 5: Connecting To Manis Supply
3.2 Connecting to manis supply Connecting and disconnecting power cable - Fig. 6 Mains Connecting to the mains supply - Fig. 7 3.3 Connecting the control signal line: DMX / Art-Net DMX 512 DMX 512 3 PIN 3 PIN SIGNAL SIGNAL SCREEN SCREEN... -
Page 6: Switching On The Fixture And Basic Setup
3.4 Switching on the fixture and basic SetUp Fixture ID Dmx Address Warning Message Switching on the projector - Fig. 9 Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display: Model Firmware Dmx Address xxx... - Page 7 Functions of the buttons - Using the menu Confirms the displayed value, or activates the displayed function, or enters the successive menu. Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu. DOWN Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu. Return to the top level LEFT Commute from units, tens, hundreds, in the Address and Calibration menù.
-
Page 8: Maintenance
4. MAINTENANCE 4.1 Opening the covers 1/4 Turn 1/4 Turn Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 11. Closing the head covers - Fig. 12. ROLL PROFILE HP... -
Page 9: Periodical Cleaning
• General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky. • General visual check of the internal components, cabling, mechanical parts, etc. -
Page 10: Effects Module Removal
4.3 Effects module removal Upper side Extraction of the effect modules - Fig. 14. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 13, 14, 15 and 16 in reverse order. ROLL PROFILE HP... - Page 11 Upper side Extraction of the effect modules - Fig. 15. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 13, 14, 15 and 16 in reverse order. Continue ROLL PROFILE HP...
- Page 12 Upper side Extraction of the effect modules - Fig. 16. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 13, 14, 15 and 16 in reverse order. ROLL PROFILE HP...
-
Page 13: Cleaning Of The Filters
4.4 - Cleaning of the filters 1/4 Turn Cleaning of the filters - Fig. 17. Continue ROLL PROFILE HP... - Page 14 1/4 Turn Cleaning of the filters - Fig. 18. ROLL PROFILE HP...
-
Page 15: Rotating Gobos
Replacing rotating gobos (ø 31.9 mm – max 24 mm image – thickness 1.1 mm) - Fig. 20 - The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos); - For more information contact Claypaky; Continue... -
Page 16: Fixed Gobos
4.6 - Fixed gobos Replacing fixed gobos (ø 31.9 mm – max 24 mm image – thickness 1.1 mm) - Fig. 21 WARNING: Before using personalised gobos contact Claypaky. COATED GLASS GOBOS TYPE 1 COATED GLASS GOBOS TYPE 2 GOBO DI VETRO DICROICI TIPO 1... -
Page 17: Battery Removal
4.7 - Battery removal This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. ROLL PROFILE HP... -
Page 18: Dimensions
5. DIMENSIONS (26.65") (23.23") (31.50") (18.50") (24.69") (20.08") (12.28") 6. CAUSE AND SOLUTION OF PROBLEMS THE PROJECTOR WILL NOT SWITCH ON ELECTRONICS NON-OPERATIONAL PROBLEMS DEFECTIVE PROJECTION REDUCED LUMINOSITY POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. Light source exhausted or defective. - Page 19 ROLL PROFILE HP...
- Page 20 CLAYPAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035 -654311 - www.claypaky.com S.p.A.
