The WeiShi Multifunction Timegrapher
No.1000 User Manual
1． INSTRUMENT FUNCTION ................................. 1
2． KEYS AND DISPLAY .................................... 1
2.1
2.2
2.3
....................................................3
3． INSTALLATION ........................................ 3
3.1
3.2
3.2.1 The Power Supply .........................................3
3.2.2 Microphone Connection ....................................4
4． OPERATION ........................................... 4
5． THE USE OF KEYS ..................................... 4
5.1
5.2
5.3
V
↓ ...................................................4
5.4
V
↑ ...................................................5
6． PARAMETERS .......................................... 5
6.1
6.2
....................................................5
6.3
........................................................6
7． TECHNICAL DATA ...................................... 6
8． COMMON FAULTS AND HANDLING .......................... 7
8.1
8.2
8.3
Table fo Contents
...................................................1
...........................................2
....................................3
...........................................3
................................................4
...............................................4
) ..................................5
,
,
,
..........................7
",
.........................7
......7
Advertisement
Table of Contents
Related Manuals for Weishi 1000
Summary of Contents for Weishi 1000
-
Page 1: Table Of Contents
The WeiShi Multifunction Timegrapher No.1000 User Manual Table fo Contents 1． INSTRUMENT FUNCTION ......... 1 2． KEYS AND DISPLAY ........1 ...........1 UNCTION ...........2 ARAMETERS AND ISPLAY ............3 ONNECTION 3． INSTALLATION ........3 ........3 ASIC QUIPMENT OMPONENTS ...........3 QUIPMENT NSTALLATION 3.2.1 The Power Supply .........3... -
Page 2: 1． Instrument Function

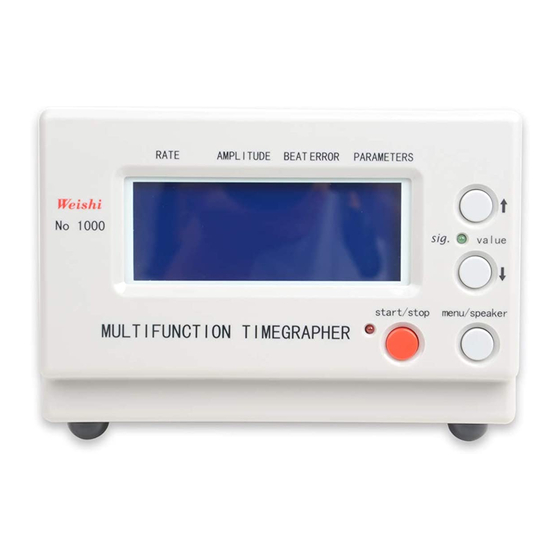

1． Instrument function The WeiShi Multifunction Timegrapher N .1000 is a precise mechanical watches test instrument, it is used for multi-testing by watch manufacturers and watch technician. The frequency diagram of the watch can be displayed in the LCD screen. -
Page 3: Parameters And Display
A. Start/Stop Key The key used for start/stop to test the watch B. Menu/Speaker Key Selection of adjustment item or turn on/off speaker C. Value↓Key Selection of the next lower value or adjustment of dips’ contrast D. Value↑Key Selection of the next higher value or adjustment of dips’ contrast 2.2 Parameters and Display A. -
Page 4: Connection
2.3 Connection Power Microphone Frequency Calibration A. Frequency calibration Connector (Only the company's engineers can calibrate the frequency) B. Sensor Connector C. Power Switch 3． Installation 3.1 The Basic Equipment Components Testing equipment host Microphone Power cable User Manual 3.2 Equipment Installation The instrument is to be installed in such a way that it is not exposed to direct sunlight or to extreme temperature of 60 ℃.The microphone should be placed at a sufficient distance from noisy machines, loudspeakers, sharp stroke sound and particularly from ultrasonic... -
Page 5: Microphone Connection
3.2.2 Microphone Connection The sensor plugs to connect to the host interface Department of sensors. 4． Operation Place the watch on After connecting of the power and the sensor, the instrument will be testing status. the signal sensor and the uplift of watch (leader) should the sheet metal. Test position can be changed freely;... -
Page 6: Value Key
next lower parameter. 5.4 Value Key↑ Press the Value Key↑can increase the LCD’s contrast, when the instrument running. After pressed the Menu Key to select the adjustment, press the Value Key↑can select the next higher parameter. 6． Parameters 6.1 Beat Numbers (Frequency Numbers) The following beat numbers are selected by automatic selection mode: 12000、14400、18000、19800、21600、25200、28800、36000、43200 (If the tested beat is not in automatically selection, the instrument will display the closest... -
Page 7: Period
6.3 Period The measuring period selectable: 2s、4s、8s、12s、20s、30s、60s Use to recalculate the average values of the test result. 7． Technical Data Measuring possibilities: Rate deviation, amplitude, beat error of mechanical watches and diagram recording of the beat noise. Frequency numbers: It can selected out the common beat number automaticly, also can selected out the less common beat number by manual. -
Page 8: 8． Common Faults And Handling
8． Common faults and handling 8.1 After insert the socket, the screen is dark Check the power pilot LED is bright or not. 8.2 The instrument can enter testing state with the sound of “Di", but after placed the watch on the sensor, the instrument do not work Check the second hand whether rotation (and amplitude must be more than 100 °), the crown of watch (leading) is against at the sheet metal of sensor.
