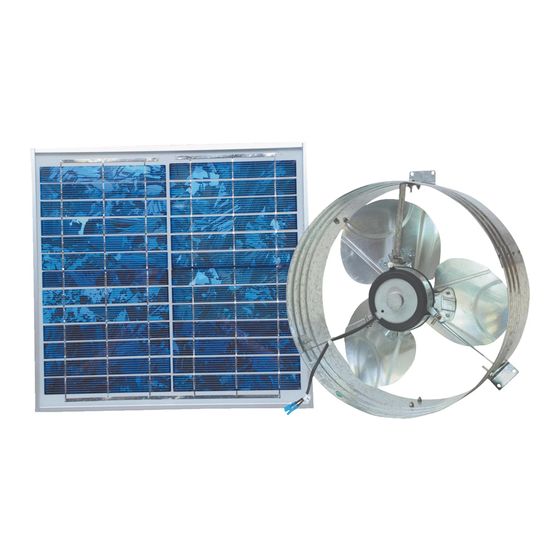

SOLAR GABLE-MOUNTED VENTILATORS
Read all warnings and instructions before starting installation of this fan
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY OR EVEN DEATH
1. Use this unit only in the manner intended by the manufacturer. If you have any
questions, contact the manufacturer.
2. Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards, including fire-rated construction.
3. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
4. The combustion airflow needed for safe operation of fuel-burning equipment may be
affected by this unit's operation. Follow the heating equipment manufacture's
guideline and safety standards such as those published by the National Fire and
Protection Association (NFPA), and the American Society for Heating, Refrigeration
and Air-conditioning Engineers (ASHRAE), and the local code authorities.
1. This fan is controlled by a solar panel and may start unexpectedly if the
panel is exposed to sunlight. Keep the panel securely covered until the
fan is mounted, or when servicing the fan.
2. This unit has an unguarded propeller. Do not use in locations readily
accessible to people or animals.
3. Mount with the lowest moving parts at least 8 feet above floor level.
4. For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
5. Carbon monoxide is an odorless, colorless gas that can kill. It may be
drawn into the house by operating this fan if your fuel-burning equipment
is not properly maintained, or if you lack adequate attic intake vents.
FOR
Models: CXSOLGB, VX2515SOLARGABL
CAUTION
VENTAMATIC, LTD.
P.O. Box 728, MINERAL WELLS, TX 76068
PHONE: (800) 433-1626 - FAX: (940) 325-9311 -
www.MYMAXXAIR.com
