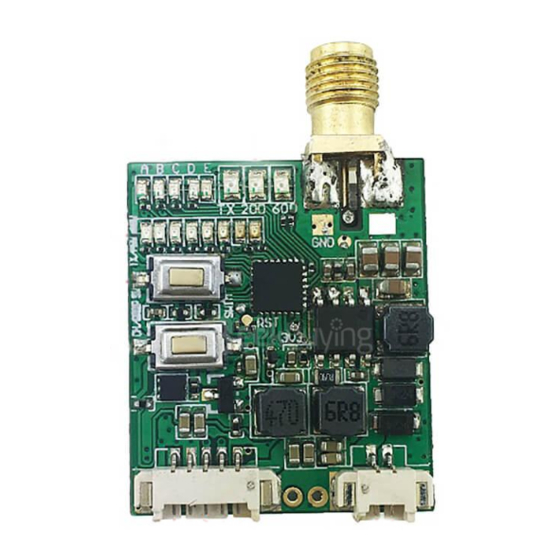

AOMWAY TX001 Quick Start Manual

Model#:
Product Name:

Introduction:

Now you can select transmission power, band, channel & microphone function all of them just
by simply push the button for different purpose of use. No interference to nearby channels
when power on, start transmitting only after all set as good.

Specifications:

Electrical:
Power Supply:
–
Current:
–
Power Switchable:
–
Output Voltage:
–
Format:
–
Port:
–
Channel Display:
–
Power Indication:
–
Band/Channel Selection: Push Button
–
Transmitter Type:
–
Frequencies:
–
Band\Channel CH1
Band A 5705MHz
Band B 5733MHz
Band C 5725MHz
Band D 5740MHz
Band E
5658MHz
(RaceBand)
Audio:
Microphone:
–
Mechanical:
Dimensions:
–
Transmitter Weight:
–
Accessories:
–

Operation:

TX001
Power Switchable Transmitter
DC 6-28V
150mAh @12V (200mW)
25mW / 200mW / 600mW (by push button)
4.9~5.1V(for camera)
NTSC / PAL
2p JST (Power Supply, GND)
5p JST (Right Audio, Left Audio, Video, GND, Output Voltage)
LED light
LED light
TX001A: Regular SMA; TX001B: 50mm Extension Cable
CH2 CH3
5685MHz 5665MHz 5645MHz
5752MHz 5771MHz 5790MHz
5745MHz 5765MHz 5785MHz
5760MHz 5780MHz 5800MHz
5695MHz 5732MHz 5769MHz
Available
29*25*10mm
TX001A:11g;TX001B:12g
1 X Power Cable, 1 X AV Cable, 1 X 5db Omni Antenna
CH4 CH5 CH6
5885MHz 5905MHz
5809MHz 5828MHz
5805MHz 5825MHz
5820MHz 5840MHz
5806MHz 5843MHz
CH7 CH8
5925MHz 5945MHz
5847MHz 5866MHz
5845MHz 5865MHz
5860MHz 5880MHz
5880MHz 5917MHz
