- Page 1 AOMWAY RC Vision System Nexus V2 Full HD Digital Link User Manual V 1.0 Please read through this manual before use, thank you! www.aomway.com...
-
Page 2: Product Introduction

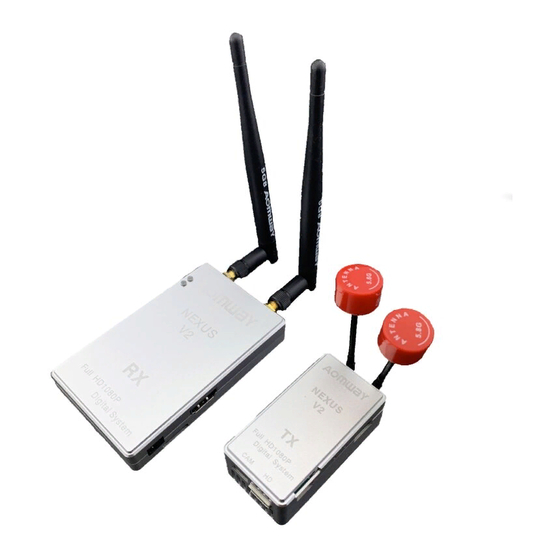

RC Vision System 1. Product Introduction Nexus V2 is equipped with high performance decoding chip and can do the most advanced low latency algorithm for HD video transmission. The whole system latency is estimated to be 70ms and reach up to 7km transmission distance, also adapt to multiple antennas for different application purposes. - Page 3 AOMWAY RC Vision System > Dimensions：Transmitter 32x62x24mm; Receiver 93x58x17mm > Working voltage range：DC7-26V（2S-6S battery） 3. Attentions! > Please learn how to use the product before starting operation on this device, it is high precision electronic equipment, read this manual thoroughly to avoid any unwanted problems or damages.
- Page 4 AOMWAY RC Vision System 4x antennas 5. Interface diagram and button functions > Transmitter unit： 1. UART port: for connection with controller, use RX pin on transmitter to adopt flight controller’s TX. 2. TF Card : for HD recording and firmware upgrade on transmitter, maximum support to 128GB.
- Page 5 AOMWAY RC Vision System 1. BUT1: Long press 3s to display menu options (long press 3s to save settings and quit menu). 2. BUT2: downward selection only (cycle operation). 3. ANT1 ,ANT2 :receiver’s antenna port as SMA-JACK type. 4. DC7-26V: power supply for receiver（3.5mm DC barrel connector, inner plus outer minus type）.
-
Page 6: Menu Selection
AOMWAY RC Vision System > When the TF card is full or there is a card error, the recording process will be stopped 7. Digital HD Link Operation > Transmitter and Receiver unit already bind together (factory setting). Manual re-binding process:... - Page 7 AOMWAY RC Vision System > RF CH: Channel/Frequency selection (AUTO for automatic selection). > Output Power Levels: 1mw/25mm/200mw/500mw. > Color：change OSD info color option（red/white/yellow/black/green /blue）. > Roll：cooperating with Radio controller（when direction is reversed）. > Pitch：cooperating with Radio controller（when direction is reversed）...
-
Page 8: 11. Trouble Shooting
AOMWAY RC Vision System 10. Firmware Upgrade Manufacturer will upgrade the firmware version later. The upgrade zip file can be provided to users when it is available. Firmware upgrade steps: firstly download the zip file to the TF card, and then insert the card to the device card slot. - Page 9 AOMWAY RC Vision System try to do manual selection on other frequency. > Signal Source: 1. This device recognizes the signal source automatically, when HD input is available then give the priority for HD signal. 2. Most HD connection issue is caused by the data cable. Recommended to try alternative HD signal source or change to a good quality HD cable.
