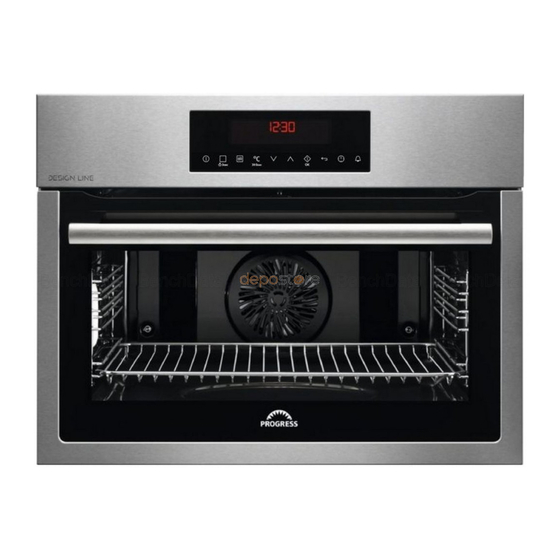

Progress PCM43100X User Manual

Microwave combi-oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
Microwave combi-oven
PCM43100X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCM43100X and is the answer not in the manual?

Questions and answers

Related Manuals for Progress PCM43100X

Summary of Contents for Progress PCM43100X

  • Page 1 User Manual Microwave combi-oven PCM43100X...

  • Page 2: Table Of Contents

    2 Progress CONTENTS Safety information Automatic programmes Safety instructions Using the accessories Product description Additional functions Control panel Hints and tips Before first use Care and cleaning Daily use Troubleshooting Microwave mode Installation Clock functions Technical data Subject to change without notice.
  • Page 3 Progress 3 General Safety Only a qualified person must install this appliance and • replace the cable. WARNING: The appliance and its accessible parts become • hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

  • Page 4: Safety Instructions

    4 Progress When heating food in plastic or paper containers, keep an • eye on the appliance due to the possibility of ignition. The appliance is intended for heating food and beverages. • Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
  • Page 5 Progress 5 power supply. If not, contact an • Do not let the appliance stay unattended electrician. during operation. • Always use a correctly installed • Deactivate the appliance after each use. shockproof socket. • Be careful when you open the appliance •...
  • Page 6 6 Progress damage to the appliance, the housing • Do not clean the catalytic enamel (if unit or the floor. Do not close the applicable) with any kind of detergent. furniture panel until the appliance has Internal light cooled down completely after use.

  • Page 7: Product Description

    Progress 7 PRODUCT DESCRIPTION General overview Control panel Electronic programmer Heating element Microwave generator Lamp Shelf support, removable Shelf positions Accessories Baking tray Wire shelf For cakes and biscuits. For cookware, cake tins, roasts. CONTROL PANEL Electronic programmer...
  • Page 8 8 Progress Use the sensor fields to operate the appliance. Sensor Function Description Field DISPLAY Shows the current settings of the appliance. ON / OFF To activate and deactivate the appliance. OPTIONS To set an oven function or an automatic programme (only when the appliance is activated).

  • Page 9: Before First Use

    Progress 9 Other indicators of the display: Symbol Name Description Automatic programme You can choose an automatic programme. Microwave function The microwave function operates. kg / g An automatic programme with a weight in- put operates. h / min A clock function operates.

  • Page 10: Daily Use

    10 Progress Changing the time flashes in the display. To set the new time of day, refer to "Setting You can change the time of day only when the time". the appliance is off. Touch DAILY USE • the manual mode WARNING! Refer to Safety •...
  • Page 11 Progress 11 Oven function Application Bottom Heat To bake cakes with crispy bottom and to preserve food. ECO Roasting When you use this function during cooking, it allows you to optimize the energy consumption. To get more information about the recommended settings, refer to the cooking ta- bles with the equivalent function (Turbo Grilling).

  • Page 12: Microwave Mode

    12 Progress heat inside the oven will continue to 10% earlier. The fan and lamp cook. continue to operate. • Cooking with the lamp off - – Use the residual heat to warm up other foods. deactivate the lamp during the cooking •...
  • Page 13 Progress 13 Defrosting fruit, vegetables: • Ready meals in metal packaging or plastic trays with metal covers can only • If fruit and vegetables should remain be defrosted or heated in the microwave raw, do not defrost them fully in the...
  • Page 14 14 Progress Cookware / Material Microwave Grilling Defrost- Heating Cooking Ready meals in packaging 1) With no silver, gold, platinum or metal plating / decorations. 2) Without quartz or metal components, or glazes which contain metals 3) You must follow the manufacturer’s instructions about the maximum temperatures.
  • Page 15 Progress 15 Microwave functions Functions Description Microwave Creates the heat directly in the food. Use it to heat pre-prepared meals and drinks, to defrost meat or fruit, and to cook vegetables and fish. Combi Use it to operate the oven function and the microwave mode together.

  • Page 16: Clock Functions

    16 Progress 2. Touch to activate the Quick Start If you set the END function function. the normal oven function, it Each touch of adds 30 seconds to the changes to the DURATION duration time. the Combi function. If you set the DURATION You can change the microwave power (refer to "Setting the...
  • Page 17 Progress 17 Clock function Application TIME OF DAY To show the time of day. To change the time of day, refer to "Setting the time". DURATION To set how long the appliance operates. To set when the appliance deactivates. You can use Dura- tion and End at the same time (Time delay) if you want the appliance to activate and deactivate automatically later.

  • Page 18: Automatic Programmes

    18 Progress 4. Touch a sensor field or open the oven When the Time delay function is door to stop the acoustic signal. activated, the display shows a static symbol of the oven Setting the Time delay function function, with a dot and...

  • Page 19: Using The Accessories

    Progress 19 5. When the set time ends, an acoustic The display shows: the cooking time, the signal sounds for two minutes. The duration symbol , a default weight, a unit symbol flashes. of measurement (kg, g). The appliance deactivates.

  • Page 20: Additional Functions

    20 Progress ADDITIONAL FUNCTIONS Using the Child Lock 2. Activate an oven function or setting. 3. Touch and hold at the same The Child Lock prevents an accidental time for 2 seconds. operation of the appliance. An acoustic signal sounds.

  • Page 21: Hints And Tips

    Progress 21 • Day brightness: – when the appliance is activated. Temperature (°C) Switch-off time – if you touch a sensor field during the night brightness (apart from ON / 200 - 230 OFF), the display goes back to the...
  • Page 22 22 Progress Tips on baking Baking results Possible cause Remedy The bottom of the cake is not The shelf position is incor- Put the cake on a lower shelf. browned sufficiently. rect. The cake sinks and becomes The oven temperature is too The next time you bake, set a soggy, lumpy or streaky.
  • Page 23 Progress 23 Food Function Tem- Time (min) Shelf posi- pera- tion ture (°C) Sponge cake / Sponge Top / Bottom 35 - 50 cake Heat Flan base - short pas- True Fan 170 - 10 - 25 Cooking Flan base - sponge mix-...
  • Page 24 24 Progress Food Function Temper- Time (min) Shelf posi- ature tion (°C) Buttered almond cake / Top / Bottom 190 - 210 20 - 30 Heat sugar cakes Fruit flans (made with True Fan 150 - 160 35 - 55...
  • Page 25 Progress 25 Food Function Temper- Time (min) Shelf posi- ature tion (°C) Top / Bottom 190 - 210 10 - 25 Rolls Heat Small cakes / Small True Fan 20 - 35 Cooking cakes Small cakes / Small Top / Bottom...
  • Page 26 26 Progress Food Temperature (°C) Time (min) Shelf posi- tion Dry streusel cake 150 - 160 30 - 45 1 / 3 1) Preheat the oven. Biscuits / small cakes / pastries / rolls Food Temperature (°C) Time (min) Shelf posi-...
  • Page 27 Progress 27 Pizza Setting Food Temperature (°C) Time (min) Shelf position 200 - 230 15 - 20 Pizza (thin crust) Pizza (with a lot of top- 180 - 200 20 - 30 ping) Tarts 180 - 200 40 - 55...
  • Page 28 28 Progress Roasting tables Beef Food Func- Quantity Power Tempera- Time (min) Shelf tion (kg) (Watts) ture (°C) position Pot roast Top / 1 - 1.5 60 - 80 Bottom Heat Pork Food Func- Quantity Power Tempera- Time (min) Shelf...
  • Page 29 Progress 29 Poultry Food Func- Quantity Power Tempera- Time (min) Shelf tion (kg) (Watts) ture (°C) posi- tion Poultry Turbo 0.2 - 200 - 220 20 - 35 portions Grilling 0.25 each Chicken Turbo 0.4 - 0.5 190 - 210...
  • Page 30 30 Progress Food Func Quantity Power Tempera- Time (min) Shelf tion (kg) (Watts) ture (°C) posi- tion Savoury True 400 - 160 - 180 30 - 45 dishes with raw Cook- ingredi- ents (po- tatoes, vegeta- bles) Grilling • Grill only flat pieces of meat or fish.
  • Page 31 Progress 31 Food Time (min) Shelf position 1st side 2nd side Fillet steaks / veal 7 - 10 6 - 8 steaks Toast / Toast 1 - 3 1 - 3 Toast with topping 6 - 8 Frozen foods • Do not cover it with a bowl or a plate.
  • Page 32 32 Progress Food Function Temper- Time (min) Shelf position ature (°C) Top / Bottom 200 - 220 as per manufac- Chips (300 - Heat or Turbo turer's instruc- 600 g) Grilling tions Top / Bottom as per as per manufac-...
  • Page 33 Progress 33 Preserving - Bottom Heat • The jars cannot touch each other. • Put approximately 1/2 litre of water into • Use only preserve jars of the same the baking tray to give sufficient moisture dimensions available on the market.
  • Page 34 34 Progress Food Temperature (°C) Time (h) Shelf position Mushrooms 50 - 60 6 - 8 Herbs 40 - 50 2 - 3 Plums 60 - 70 8 - 10 Apricots 60 - 70 8 - 10 Apple slices 60 - 70...
  • Page 35 Progress 35 Defrosting poultry Food Power Quantity Time (min) Standing Comments (Watts) (kg) time (min) Chicken 25 - 30 10 - 20 Turn half- through, cover de- frosted parts with aluminium foil. Chicken 0.1 - 0.2 3 - 5 10 - 15...
  • Page 36 36 Progress Defrosting sausage Food Power Quantity Time (min) Standing Comments (Watts) (kg) time (min) Sliced saus- 2 - 4 20 - 40 Turn half- through. Defrosting dairy products Food Power Quantity Time (min) Standing Comments (Watts) (kg) time (min) Quark 0.25...
  • Page 37 Progress 37 Food Power Quantity Time (min) Standing Comments (Watts) time (min) Dry cake (e. 1 piece 2 - 4 15 - 20 Turn plate g. Pound halfway cake) through. Fruit cake 1 piece 1 - 2 15 - 20...
  • Page 38 38 Progress Defrosting or heating Food Power Quantity Time (min) Standing Comments (Watts) time (min) Baby food in 0.2 kg 2 - 3 Stir halfway jars through, check tem- perature. Baby milk 1000 0.2 kg 0:20 - 0:40 Put spoon...
  • Page 39 Progress 39 Food Power Quantity Time (min) Standing Comments (Watts) time (min) Fish fillets 0.5 kg 6 - 8 Cook cov- ered, turn container several times during cooking. Vegetables, 0.5 kg 12 - 16 Add approx. short cook- 50 ml water,...
  • Page 40 40 Progress Food Power Quantity Time (min) Standing Comments (Watts) time (min) Popcorn 1000 3 - 4 Put the popcorn on a plate on the bottom level. Egg custard 1 kg 34 - 36 Turn con- tainer around by 1/4, halfway...

  • Page 41: Care And Cleaning

    Progress 41 Food Ovenware Tem- Shel Comments pera- f po- ture tts) (°C) tion Potatoes au Gratin dish 39 - Turn contain- gratin (1.1 er around by 1/4, halfway through cooking time. 5 min stand- ing time. Roast pork Glass dish with strainer Turn in be- neck (1.1 kg)

  • Page 42: Troubleshooting

    42 Progress 1. Deactivate the appliance. WARNING! Danger of 2. Remove the fuses from the fuse box or electrocution! Disconnect the deactivate the circuit breaker. fuse before you replace the lamp. The top lamp The lamp and the lamp glass cover can be hot.

  • Page 43: Installation

    Progress 43 Problem Possible cause Remedy It takes too long to cook the The temperature is too low or Adjust the temperature if dishes or they cook too too high. necessary. Follow the advice quickly. in the user manual. Steam and condensation set-...
  • Page 44 44 Progress min. 20mm min. 548mm 450mm 560mm 455mm 15mm 450mm 440mm min. 550mm 594mm 546mm 21mm 548mm min. 20mm 450mm 455mm 15mm 450mm min. 440mm 560mm 450mm 455mm 450mm min. 550mm 546mm 594mm 21mm...
  • Page 45 Progress 45 548mm 15mm min. 455mm 20mm 450mm 450mm 440 mm 455mm 450mm 450mm 440mm min. 450mm 560mm 455mm 450mm min. 550mm 440mm 546mm 594mm 21mm 548mm min. 20mm 450mm 455mm 15mm 450mm 440mm 590mm min. 560mm 594mm 589mm min.
  • Page 46 46 Progress H05VV-F H05RR-F min.1,60 m alternativ 90° 13mm 2x3,5x25...

  • Page 47: Technical Data

    Progress 47 TECHNICAL DATA Technical data Voltage 220 - 240 V Frequency 50 Hz ENVIRONMENTAL CONCERNS dispose appliances marked with the symbol Recycle the materials with the symbol with the household waste. Return the Put the packaging in applicable containers product to your local recycling facility or to recycle it.
  • Page 48 867325011-C-152016...
