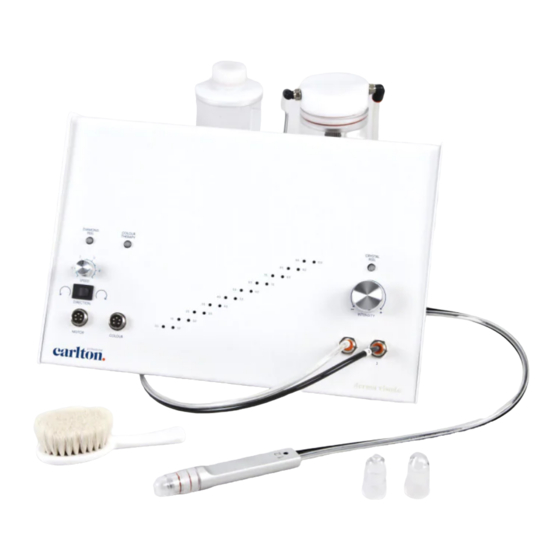

- Page 1 DERMAVISAGE MAINTAINENCE AND TROUBLESHOOTING GUIDE IN C O R P O R AT IN G M O D ELS C C 3 0 40 | C C 3 0 4 5 | C C 3 0 50 Setting the standard in electrotherapy equipment...
- Page 2 Index Introduction page 3 Operating Instructions page 4 Looking After Your Machine page 8 Troubleshooting Guide page 10 Setting the standard in electrotherapy equipment...
- Page 3 Introduction to the Dermaviasge Unit Thank you for purchasing the CARLTON DERMAVISAGE Microdermabrasion machine. Your microdermabrasion machine is equipped with the most reliable and modern technology available, ensuring absolute safety and ease of use. Technical And Manufacturer Details There are no particular requirements with regards to the...
-
Page 4: Installation And Preparation For Use
Dermavisage Operating Instructions Crystal Dispensing Canisters Colour Therapy Selector Button Vacuum Suction Intensity Level Diamond Peeling Selector Diamond Peeling Intensity Dial Crystal Peeling Selector Diamond Peeling Directional Rotation Crystal Peeling Vacuum Switch Suction Intensity Dial Outlet for Diamond Peeling Handpiece Outlet for Tube 2 Outlet for Colour... - Page 5 When the Crystal Peeling Selector Button is pressed, and this part of the machine is active, the Cooling Fan will switch on. The fan only operates The Diamond Peeling when the Crystal Peeling function is selected, and will continue to operate for and Colour Therapy 15 minutes after the Crystal Peel function has been switched off.
- Page 6 Beginning Treatment: Once you have checked the following, the machine is ready to use: Vacuum pressure The more sensitive the skin the less pressure Tubing attached securely to Handpiece and to DermaVisage. should be used. Plastic treatment tip securely attached to Handpiece Too much pressure is uncomfortable for the client and may lead to a greater...
-
Page 7: Tips And Tricks
Tips & Tricks Turning and Setting the Vacuum Regulator When setting the regulator to maximum, you will notice that after one revolution you cannot turn the regulator any more. This is normal and means you have reached the maximum pressure possible. Do not try to turn the regulator further, otherwise it may stick. Depth of peeling The depth of peeling can be regulated in addition to the vacuum pressure by three other means:... - Page 8 Looking after your machine Although your machine is itself extremely robust, the crystals used are extremely fine and therefore sensitive to the conditions under which they are used. The following tips are designed to keep your machine in top condition and to minimize the risk of downtime due to crystal flow problems.
- Page 9 Flushing the machine through. The Fresh Crystal Container should be empty before commencing. Turn the machine on. Turn the vacuum control knob fully clockwise (but do not force the control knob past its natural stopping point). Lift the fresh crystal container away from the base plate and using your thumb and index finger, block both the filter underneath the container, and the small hole on the metal section of the tubing connector (Picture 3).
- Page 10 Dermavisage – Troubleshooting Guide There are two possible scenarios, excessive high vacuum or very low vacuum. In general, excessive high vacuum will be caused by a crystal blockage in the machine and low vacuum will be caused by air leaks and poor tubing connections. Both of these conditions will result in poor performance and lack of crystal flow.
- Page 11 Step by Step Guide CHECK The following procedure tests for vacuum at the various sections of the Unless otherwise stated. please ensure the hand machine and will pin point the cause of any problems very quickly. piece is connected properly, the vacuum STEP 1 control on the front of...
- Page 12 STEP 2 Disconnect the clear hand piece tubing from the front panel connector, Outlet 1 as illustrated in picture below Switch on the Crystal Peel and cover both the open end of the tubing and the hole in the hand piece Treatment tip with your fingers. The front display should indicate full vacuum (-8.5 to -10psi) and should drop to -0.5 or no display when you remove your finger from the Treatment Tip or the end of the tubing.
- Page 13 If you are experiencing recurring issues with Using your thumb and forefinger, block both the filter underneath the your Carlton machine please contact us by container and the small hole on the top of the metal section of the container calling 01242 538334 tubing connector, as shown in the picture below.
