Poly VVX D230 WiFi Handset
Quick Reference Guide

Device overview

Overview

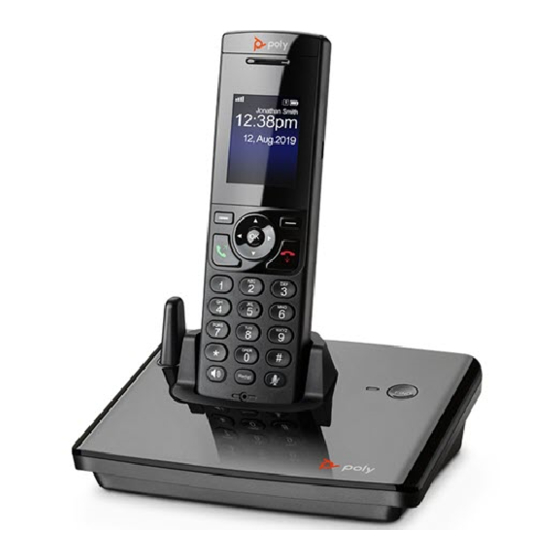

The VVX D230 DECT IP phone is a standalone IP based wireless phone that enables you to manage calls to your line at any time while
you're away from your desk. The system consists of a base station which supports up to 10 handsets. This guide provides overview
information on using the VVX D230 DECT IP phone.
Seamless call management while 'on-the-go', workspace mobility:
•
Easy to operate, reliable performance
•
Range - indoors 165 feet, outdoors 980 feet
•
Battery capacity - 10 hours talk time, 100 hours standby
•
10 handsets per base station
•
Shared call appearances, call park, pickup, intercom

Device setup overview

Handset features
1. Soft Keys - select feature and menu options at the bottom of the
display
2. Navigation Keys / OK Button - increase/decrease ringer
volume, scroll through menus, or move the cursor within various
fields; press the OK button to access the main menu, select
highlighted items, or save entries or settings while in the menu
3. Call Button - make or answer calls, view recent calls
4. End Button - disconnect your call
5. Keypad - enter numbers or characters
6. Speakerphone - make or answer calls using the speakerphone;
or move from the handset to a handsfree call
7. Redial Button - redial the last number dialed
8. Mute Button - mute or unmute while on an active call
9. Microphone - transmits your audio on the handset or
speakerphone
10. LED Light - flashes to indicate an incoming call, missed call or
new voicemail message
11. Earpiece - allows you to hear audio during active calls
12. Headphone Port - headset connection port
Base unit features
1. FIND - press to register wireless handset
2. Status Indicator - indicates whether the handset is charging, or
the phone is in use
3. Charging Cradle - charges the wireless handset when placed in
the cradle

Handset registration

1. On the wireless handset, navigate to Menu > Settings > Features
> Registration
2. Select Register and press the OK button
3. Press and hold the FIND button on the base station for 5 seconds
4. Press the Yes soft key to confirm registration with the base station
"Registration Successful" displays if the phone successfully
registered.
Services not available everywhere. Business customers only. Lumen may change, cancel or substitute products and services,
or vary them by service area at its sole discretion without notice. ©2020 Lumen Technologies. All Rights Reserved.
Handset hardware
Base unit hardware
Base unit tips
For maximum coverage and to reduce interference, follow these
recommendations:
•
Make sure the base station is at least 3 ft from other electrical
appliances to avoid interference
•
If the reception for the base station location isn't satisfactory, move
it to another location, placing it as high as possible ensures the
best signal
•
Depending on surrounding conditions, as well as spatial and
structural factors, the range may reduce
page 1 of 3
