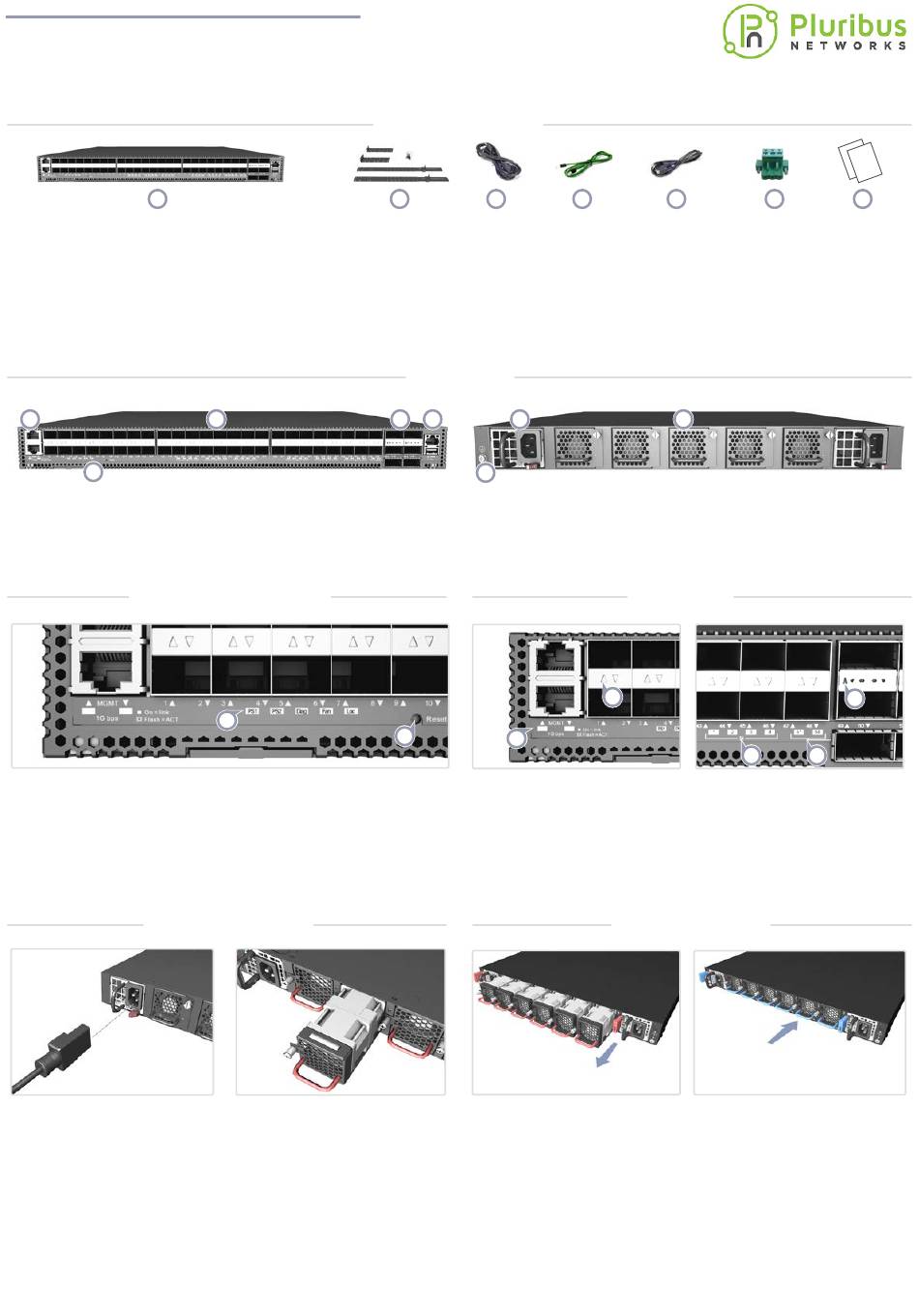

Pluribus Networks F9460-X Quick Start Manual

Q u i c k S t a r t G u i d e
54-Port 10G/100G Ethernet Switch
F9460-X (F/B) | F9460-T (F/B)
1
1. 54-Port 10G/100G Ethernet Switch F9460-X
2. Rack mounting kit—2 front-post brackets, 2 rear-post brackets, 20
screws, and 2 ear-locking screws
3. Power cord (included with AC PSUs only)
4.
Grounding wire (included with DC PSUs only)
1
2
1.
2 x 1000BASE-T RJ-45 management ports
2. Product label
3.
48 x 10G SFP+ ports
4.
6 x 100G QSFP28 ports
System LEDs/Buttons
PS1/PS2: Green (OK), Amber (fault)
OS Diag: Green (OK), Amber (fault)
Fan: Green (OK), Amber (fault)
Loc: Flashing Amber (switch locator)
Reset Button
FRU Replacement
PSU Replacement
1.
Remove the power cord.
2.
Press the release latch and
remove the PSU.
3.
Install replacement PSU with
matching airflow direction.
www.pluribusnetworks.com
Package Contents
3
Fan Tray Replacement
1.
Loosen the fan tray screw.
2.
Remove fan tray from the
chassis.
3.
Install replacement fan with
matching airflow direction.
2 3
5. Console cable—RJ-45 to D-Sub
6.
DC power connector (included with 48 VDC PSU only)
7. Documentation—Quick Start Guide (this document) and Safety and
Regulatory Information
Overview
4 5 7
6
5.
Console port, USB
6. Grounding screw
7.
2 x AC or DC PSUs
8.
5 x fan trays
SFP+ LEDs
Green (10G)
Amber (1G)
MGMT LEDs
Green (1G)
1. F2B Airflow
Remove front-to-back (F2B)
airflow fan trays (red handles) and
PSUs (red release latches).
– 1 –
4 5
8
Port LEDs
QSFP28 LEDs
1 LED Green (100G)
1 LED Blue (40G)
1-4 LEDs Amber (25G breakout)
1-4 LEDs Purple (10G breakout)
Airflow Reversal
2. B2F Airflow
Install back-to-front (B2F) airflow
fan trays (blue handles) and PSUs
(blue release latches).
6 7
19-0045
