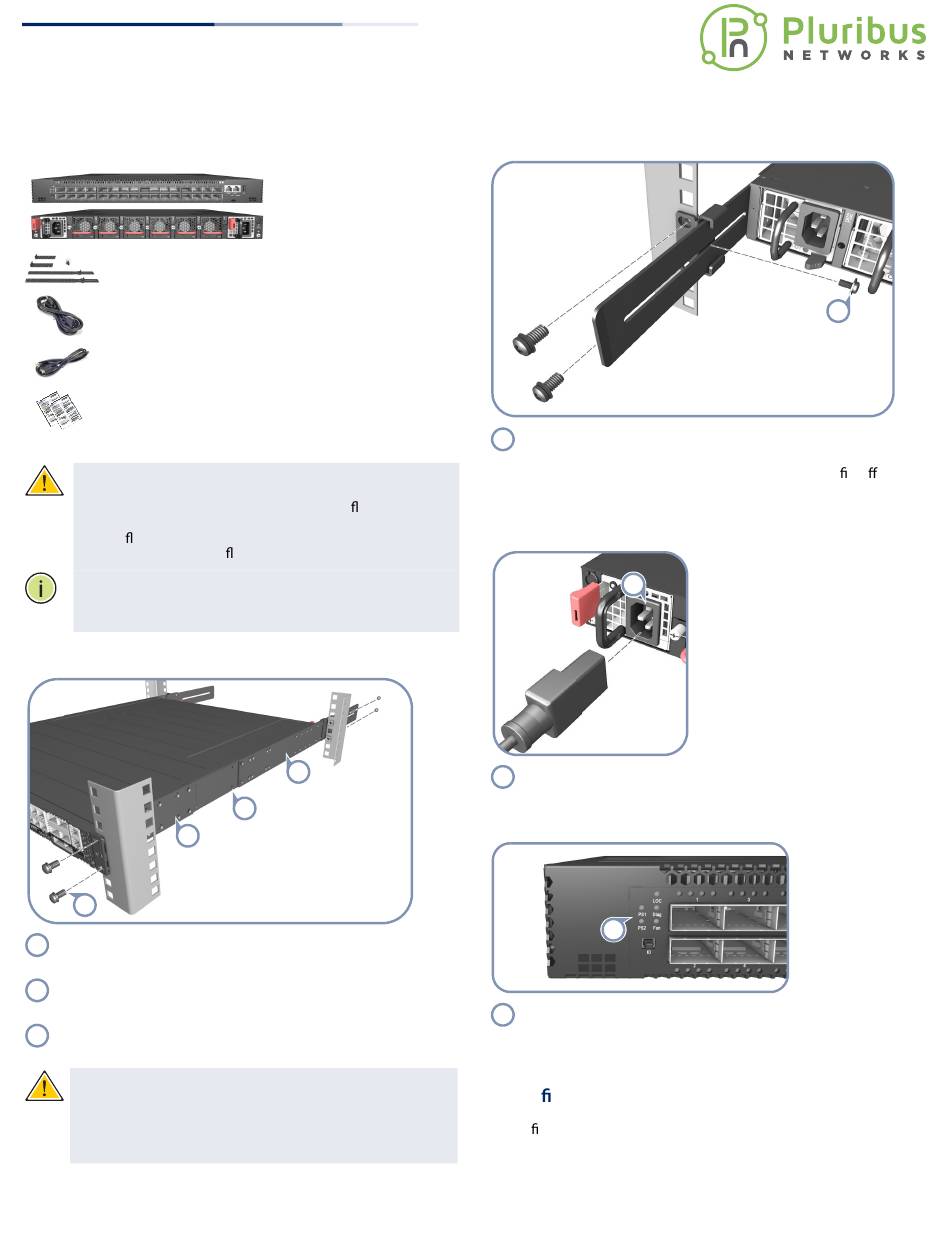

Pluribus Networks F9532-C Quick Start Manual

Quick Star t Guide
32-Port 100G Fiber Ethernet Switch
F9532-C | F9532B-C
1. Unpack the Switch and Check Contents
Rack Mounting Kit—2 front-post brackets, 2 rear-post
brackets, 20 screws, and 2 ear-locking screws
Power Cord (included with AC PSUs only)
Console Cable—RJ-45 to DB-9
Documentation——End-User License Agreement, Quick
Start Guide (this document) and Safety and Regulatory
Information
Caution:
The switch includes plug-in power supply (PSU)
and fan tray modules that are installed into its chassis. All
installed modules must have a matching air ow direction.
That is, if the installed power modules have a front-to-back
(F2B) air ow direction, all the installed fan tray modules
must also have a F2B air ow direction.
Note:
The switch drawings in this document are for
illustration only and may not match your particular switch
model.
2. Attach the Brackets
1
3
1 Attach each of the front- and rear-post brackets to the
switch using four of the included bracket screws.
2 Use an additional two screws to secure each of the rear-post
brackets at the mid-point on the sides of the switch.
3 Use the screws and cage nuts supplied with the rack to
secure the switch in the rack.
Caution:
Installing the switch in a rack requires two
people. One person should position the switch in the rack,
while the other secures it using the rack screws.
装置の吸排気に必要な領域を マニ ュ アル上に規定 し て
い る。
www.pluribusnetworks.com
F9532-C or F9532B-C
1
2
3. Adjust Rear-Post Bracket Ears
1 Lock the position of the rear-post bracket ears using the
included position-locking screws.
You can also adjust the rear-post bracket ears to t di erent
rack depths from 56 cm to 75 cm.
4. Connect Power
1
1 Connect an external AC power source to the modules.
5. Verify Switch Operation
1
1 Verify basic switch operation by checking the system LEDs.
When operating normally, the PSU1/PSU2, Diag, and Fan
LEDs should all be on green.
6. Con guring the switch
To con gure your switch please refer to the Pluribus Networks
Quick Start Guide available at this location:
http://www.pluribusnetworks.com/get-started/
– 1 –
1
19-0019
