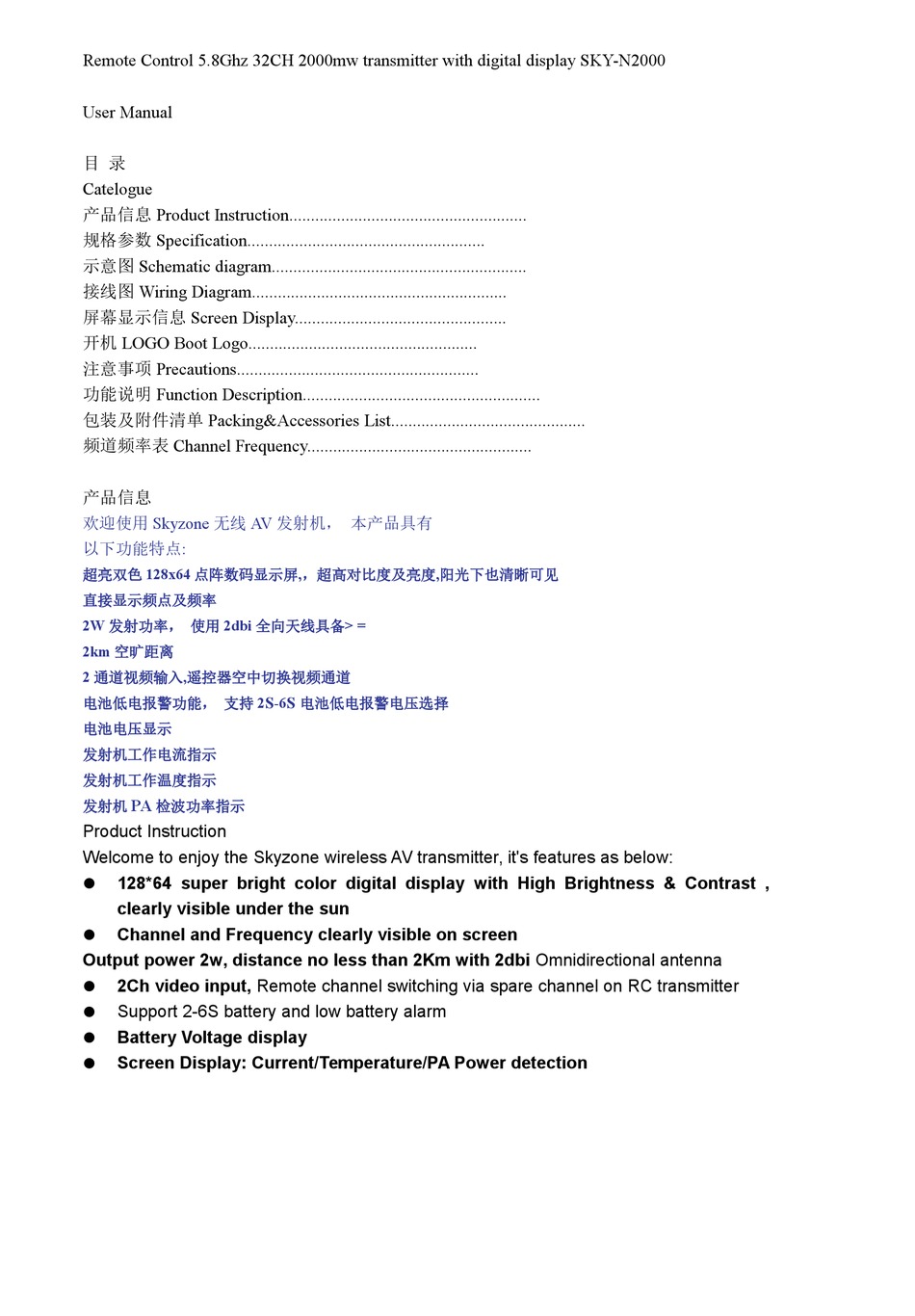

SkyZone SKY-N2000 User Manual

Remote Control 5.8Ghz 32CH 2000mw transmitter with digital display SKY-N2000
User Manual
目 录
Catelogue
产品信息 Product Instruction.......................................................
规格参数 Specification.......................................................
示意图 Schematic diagram...........................................................
接线图 Wiring Diagram...........................................................
屏幕显示信息 Screen Display.................................................
开机 LOGO Boot Logo.....................................................
注意事项 Precautions........................................................
功能说明 Function Description.......................................................
包装及附件清单 Packing&Accessories List.............................................
频道频率表 Channel Frequency....................................................
产品信息
欢迎使用 Skyzone 无线 AV 发射机， 本产品具有
以下功能特点:
超亮双色 128x64 点阵数码显示屏,，超高对比度及亮度,阳光下也清晰可见
直接显示频点及频率
2W 发射功率， 使用 2dbi 全向天线具备> =
2km 空旷距离
2 通道视频输入,遥控器空中切换视频通道
电池低电报警功能， 支持 2
电池电压显示
发射机工作电流指示
发射机工作温度指示
PA
发射机 检波功率指示
Product Instruction
Welcome to enjoy the Skyzone wireless AV transmitter, it's features as below:
 128*64 super bright color digital display with High Brightness & Contrast ,
clearly visible under the sun
 Channel and Frequency clearly visible on screen
Output power 2w, distance no less than 2Km with 2dbi Omnidirectional antenna
2Ch video input, Remote channel switching via spare channel on RC transmitter

 Support 2-6S battery and low battery alarm
 Battery Voltage display
Screen Display: Current/Temperature/PA Power detection

S S
-6
电池低电报警电压选择
