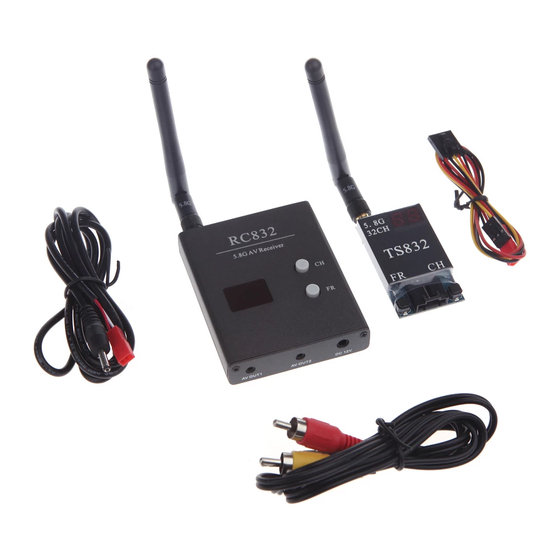

SkyZone RC832 Instruction Manual

Specification：

1.Technical specification

RC832
5.8GWireless
receiver

2. Features:

· 32 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all
frequencies compatible;
· Two buttons: CH button for
switching
for
frequencies bands switching;
·
Two digital display: one for CH and the other for FR, real-time positioning
frequency band and which channel received;
· Power off memory: Replay the very last
· Independent video and audio signal outputs
3.
Operation Instructions：
A. Pin Description：
RC832
Instruction Manual
Sensitivity
Working Frequency
Available Channel
Power supply
Consumption Current
Antenna Input Impedance
Antenna Connector
Antenna Gain
Video Output Level
Audio Output Level
Audio Carrier
Type Standard
Dimension (L x W x H)
Weight
frequencies channels switching,
frequency band and channel
≤-90dBm
ISM 5.8GHz
32CH
DC 12V
200mA, Max.
50ohm Typ.
SMA
2dBi
1.0Vp-p Typ, 75Ω
1.0Vp-p Typ, 10KΩ
6.5MHz
NTSC/PAL
80x65x15 mm
85 g
FR button
which
