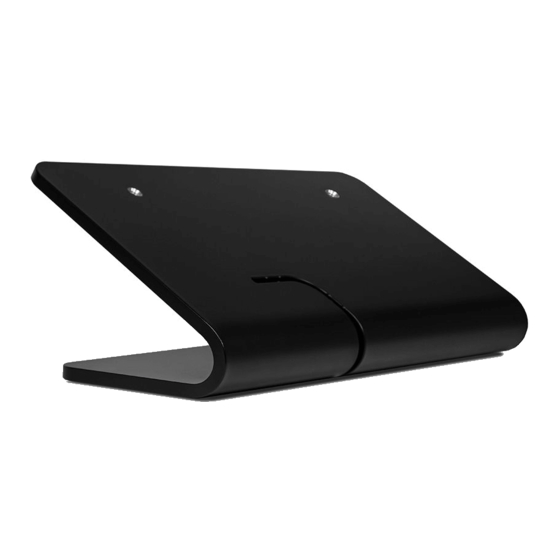

Basalte Eve Curve Quick Start Manual

1
Identification of the parts (product number: 0693-03)
a. curve
b. rotation box & center
c. 3 x inbus M3x5 screws
d. 3 x inbus M3x50 screws
e. security ring
f. 3 x inbus M3x10 inbus
g. 2 x Philips M6x8 screws
h. velvet feet
i. rubber feet
j. custom angled USB-C to USB-A cable
(-> Max power 5V 2A / No data transfer)
2
Mounting the curve
1. Attach the velvet feet (in combination with rotation center)
or rubber feet (when free standing)
2. Attach the rotation center to the curve with the 3 x inbus
M3X5 screws
3. Place the rotation box in the surface (68 mm opening)
-> Replace M3x20 mounting screws with included M3x50 if
necessary for thicker surface
4. Click the curve with rotation center on the rotation box
5. Mount security ring with the 3 x inbus M3x10 if necessary
3
Angled USB cable
Click the included angled USB cable in the cable cutout.
4 Installing the Eve frame
(not included)
Screw the Eve frame onto the curve (with the 2 inbus M6 screws),
taking into account the position of the frame.
Ensure the screws are positioned correctly, so they cannot
damage the iPad.
5
Mounting the iPad
Mount the iPad in the Eve frame (not included) as described in
the Eve installation manual.
Puck power supply
(not included - product number: 610-02)
Install the Puck according to the instructions of the Puck manual.
Connect the included angled USB cable to the Puck.
6
Removing the iPad
Remove the iPad from the frame as described in the Eve manual.

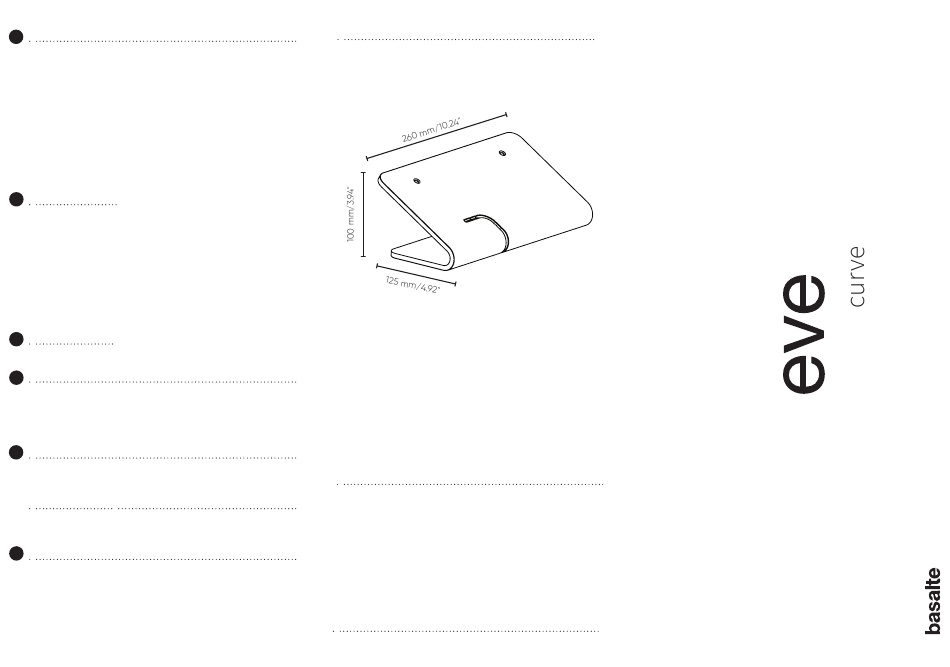

Dimensions
100 mm/3.94" x 125 mm/4.92" x 260 mm/10.24"
Perspective View
Eve Curve is compatible with Eve Air 11" (0676-xx not included)
Made in Belgium
