Basalte Eve glass mount kit Installation Manual

Eve glass mount kit
Installation Manual

Description

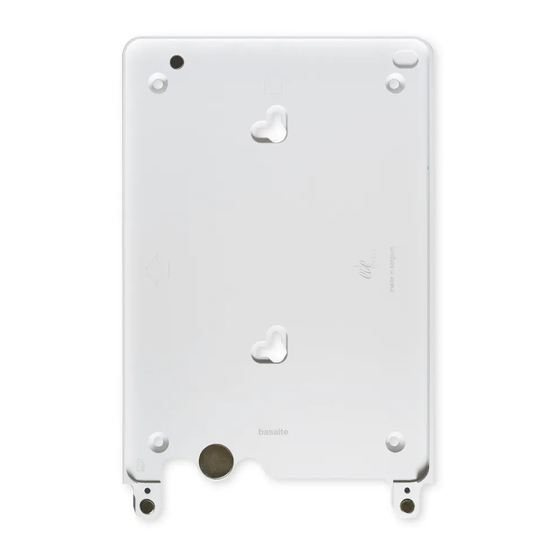

The 'Eve glass mount kit' is a customized solution to elegantly mount your iPad on a
glass surface, using the Eve mounts by Basalte. This product contains the mounting kit
itself and the optional customisation of a cable opening in the Eve cover.
· The glass mount solution is the combination of strong adhesive transfer tape
installed on the Eve frame and a self-adhesive cover film to hide the back of the
frame. The film is available in a black or white finish and should be applied on the
glass prior to installing the Eve.
· The optional customization is for when you need to run the charging cable to an
external power source, hidden nearby. We can custom machine a cable opening on
the left/right side or the bottom of the cover.

Installing instructions

The 'Eve glass mount kit' should be applied to a glass surface which is clean, dry and free from grease, dirt or other contaminants.
· Exposure to direct sunlight might reduce the bond strength of the Eve glass mount kit. It might also increase the temperature of the
!
glass, which might lead to increased risk of glass breakage. Therefore we strongly advice to apply the Eve glass mount kit only on
interior glass which is not exposed to direct sunlight.
!
· The Eve wall mount can only be installed vertically with the cover on the bottom or horizontally with the cover on the left side.

Set-up process glass mount kit

The glass surface must be cleaned thoroughly before applying the adhesive film. Cleaning methods:
1
a. Washing with a mild detergent solution, after which the surface should be rinsed and dried with a lint free cloth.
b. Wiping with a solvent-saturated cloth, until al dirt and/or grease has been removed.
The 'Eve glass mount kit' should be applied to a glass surface which is clean, dry and free from grease, dirt or other contaminants.
2
Verify the exact position of the Eve before applying the film. Use masking tape to position the film on the window
and follow next steps accordingly to the drawings.
Align sticker on surface and
apply tape in centre
Be careful and don't scratch the sticker
while stroking !!!
Peel the backing of the sticker
Remove the tape
Carefully hold up the sticker while
cutting the backpaper
Peel the rest of the backing
of the sticker
Gently stroke away from the
centre with a small ruler
Gently stroke the rest of the sticker away
from the centre with the ruler
