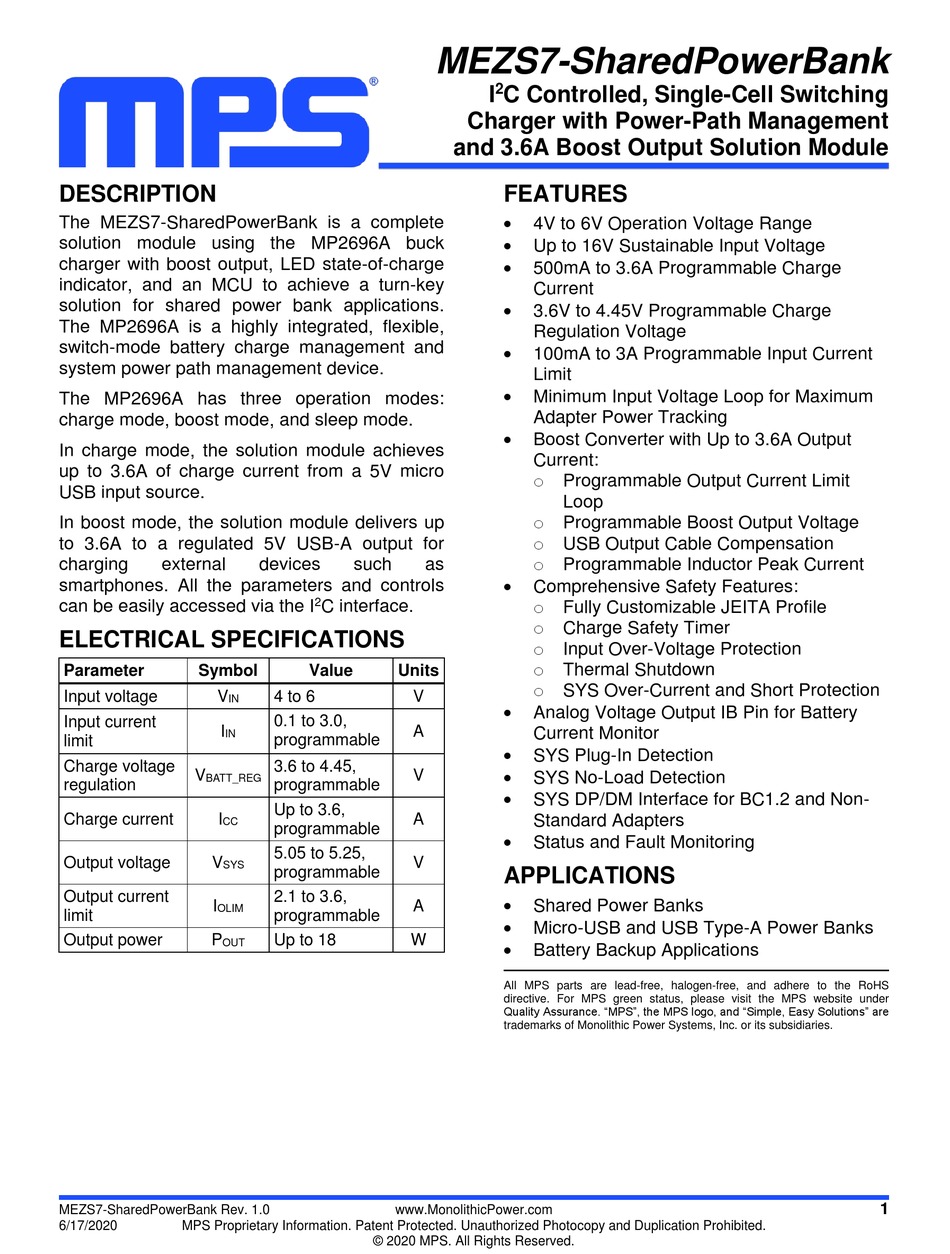

MPS SharedPowerBank MEZS7 Quick Start Manual

DESCRIPTION
The MEZS7-SharedPowerBank is a complete
solution module using the MP2696A buck
charger with boost output, LED state-of-charge
indicator, and an MCU to achieve a turn-key
solution for shared power bank applications.
The MP2696A is a highly integrated, flexible,
switch-mode battery charge management and
system power path management device.
The MP2696A has three operation modes:
charge mode, boost mode, and sleep mode.
In charge mode, the solution module achieves
up to 3.6A of charge current from a 5V micro
USB input source.
In boost mode, the solution module delivers up
to 3.6A to a regulated 5V USB-A output for
charging external
smartphones. All the parameters and controls
can be easily accessed via the I
ELECTRICAL SPECIFICATIONS
Parameter Symbol
Input voltage V
IN
Input current
I
IN
limit
Charge voltage
V
BATT_REG
regulation
Charge current I
CC
Output voltage V
SYS
Output current
I
OLIM
limit
Output power P
OUT
MEZS7-SharedPowerBank Rev. 1.0
6/17/2020 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
MEZS7-SharedPowerBank
devices such as
2
C interface.
Value Units
4 to 6 V
0.1 to 3.0,
A
programmable
3.6 to 4.45,
V
programmable
Up to 3.6,
A
programmable
5.05 to 5.25,
V
programmable
2.1 to 3.6,
A
programmable
Up to 18 W
www.MonolithicPower.com
© 2020 MPS. All Rights Reserved.
2
I C Controlled, Single-Cell Switching
Charger with Power-Path Management
and 3.6A Boost Output Solution Module
FEATURES

4V to 6V Operation Voltage Range

Up to 16V Sustainable Input Voltage

500mA to 3.6A Programmable Charge
Current

3.6V to 4.45V Programmable Charge
Regulation Voltage

100mA to 3A Programmable Input Current
Limit

Minimum Input Voltage Loop for Maximum
Adapter Power Tracking

Boost Converter with Up to 3.6A Output
Current:
o Programmable Output Current Limit
Loop
o Programmable Boost Output Voltage
o USB Output Cable Compensation
o Programmable Inductor Peak Current

Comprehensive Safety Features:
o Fully Customizable JEITA Profile
o Charge Safety Timer
o Input Over-Voltage Protection
o Thermal Shutdown
o SYS Over-Current and Short Protection

Analog Voltage Output IB Pin for Battery
Current Monitor

SYS Plug-In Detection

SYS No-Load Detection

SYS DP/DM Interface for BC1.2 and Non-
Standard Adapters

Status and Fault Monitoring
APPLICATIONS

Shared Power Banks

Micro-USB and USB Type-A Power Banks

Battery Backup Applications
