Actron OMEGA Series Assembly Instructions

Latch assy - double paddle, double bolt

REV

DATE

A23909

OMEGA SERIES

CORONA, CALIFORNIA

NC 9/21/12

ASSEMBLY

INSTRUCTIONS

SHEET 1 OF 5

Table of Contents

Need help?

Do you have a question about the OMEGA Series and is the answer not in the manual?

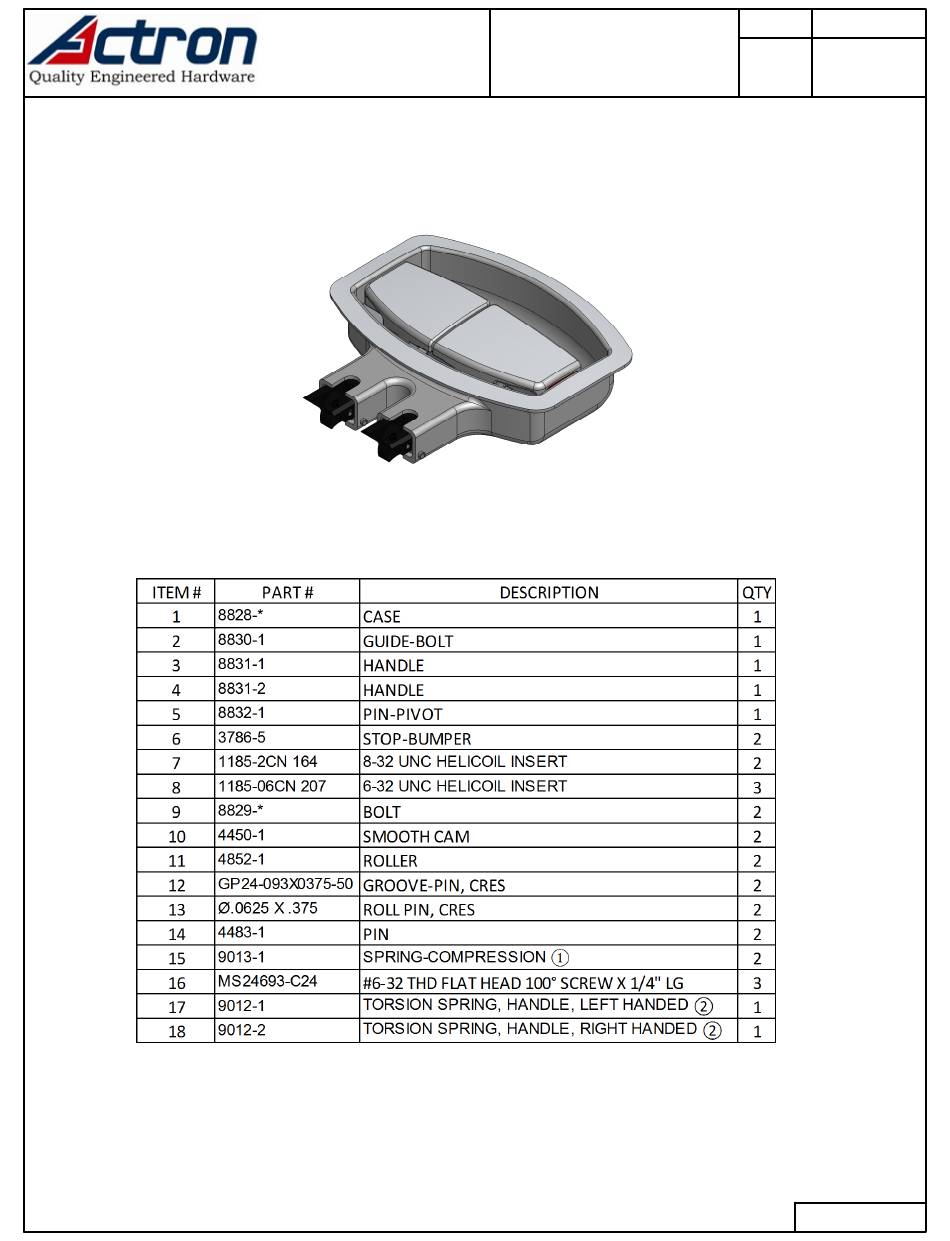

Page 1 DATE A23909 OMEGA SERIES CORONA, CALIFORNIA NC 9/21/12 ASSEMBLY INSTRUCTIONS SHEET 1 OF 5...
Page 2 DATE A23909 OMEGA SERIES CORONA, CALIFORNIA NC 9/21/12 ASSEMBLY INSTRUCTIONS NOTE: FOLLOWING STEPS TO BE PERFORMED AFTER PLATING STEP 1 PAINT BOTH HANDLES AS SHOWN. ALLOW 24 HOURS FOR PAINT TO DRY. PAINT RED PER APS-0500 PAINT RED PER APS-0500...
Page 3 DATE A23909 OMEGA SERIES CORONA, CALIFORNIA NC 9/21/12 ASSEMBLY INSTRUCTIONS STEP 3 GLUE RUBBER BUMPER INTO HANDLE CAVITY AS SHOWN. REPEAT FOR OPPOSITE HANDLE. STEP 4 PLACE BOTH HANDLE ASSEMBLIES IN SLOTS OF GUIDE BOLT. COMPRESS TORSION SPRINGS AND PLACE IN CORRECT SLOTS INSIDE HANDLES.
Page 4 DATE A23909 OMEGA SERIES CORONA, CALIFORNIA NC 9/21/12 ASSEMBLY INSTRUCTIONS STEP 6 PLACE BOLTS INTO CASE AS SHOWN. INSERT PIN THRU HOLE IN CASE AND HOLE IN SMOOTH CAM. REPEAT FOR SECOND BOLT. STAKE BOTH ENDS OF EACH PIN TO PREVENT PINS FROM FALLING OUT.
Page 5 DATE A23909 OMEGA SERIES CORONA, CALIFORNIA NC 9/21/12 ASSEMBLY INSTRUCTIONS STEP 8 INSTALL 3 #6-32 SCREWS AS SHOWN. BE SURE TO USE LOCTITE OR EQUIVALENT THREAD LOCKER. A23909 COMPLETE SHEET 5 OF 5...

A23909
