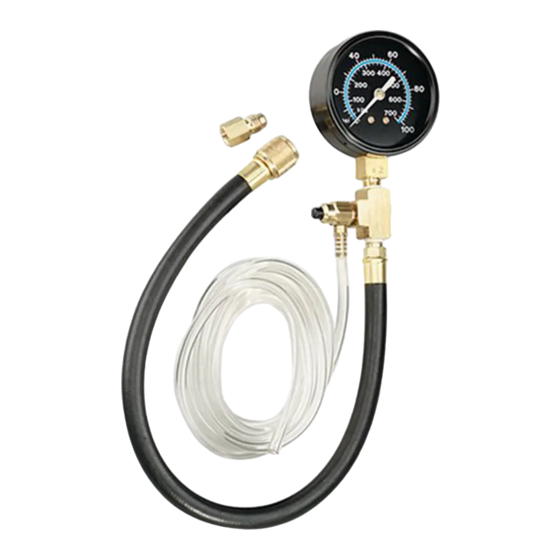

CP7818 – Fuel Pressure Tester Kit
INSTRUCTIONS
• Fuel pressure testing involves some contact with pressurized fuel.
• Do not use the Fuel Pressure Tester Kit on Diesel or Flex Fuel engines.
• Only use the Fuel Pressure Tester Kit on Gasoline powered engines.
• Helps diagnose driveability problems due to abnormally high or low fuel pressure.

VEHICLE APPLICATION LIST

The Fuel Pressure Tester Kit works on most domestic fuel injected vehicles
having a schrader valve test port on the fuel rail. This includes Ford
high pressure central fuel injection and GM, Ford, and Chrysler multi-
port fuel injection. Multi-port means one fuel injector per cylinder.
Domestic FORD,
LINCOLN, MERCURY
High Pressure Central Fuel Injected
(CFI) Vehicles
1981-86 Country Squire, Crown
Victoria, LTD, Colony Park,
Grand Marquis, & Marquis
1985-86 Mustang & Capri
1985-87 Thunderbird & Cougar
1981-85 Continental, Town Car, Mark VI
& Mark VII
1980 Versailles
Most Multi-Port Fuel Injected Vehicles
1983 to 1996.
Not Including:
1.3L Festiva & Aspire
1.6L Capri
1.8L Escort & Tracer
2.0L, 2.2L & 2.5L Probe
3.0L Villager
Domestic GENERAL MOTORS
Most Multi-Port Fuel Injected Vehicles
1984 to 1996.
Not Including:
1988 1.6L Nova
1988-89 1.5L Spectrum
1987-90 Sprint Turbo
* Some 1996 engines may not have a schrader valve fuel rail test port.
Domestic CHRYSLER,
PLYMOUTH, DODGE
Multi-Port Fuel Injected
Passenger Vehicles
Year Engine 8th VIN Digit
1995-96 2.0L C or Y
1984-93 2.2L Turbo E
1995-96 2.4L X
1984-92 2.5L Turbo J
1987-96 3.3L R
1993-96 3.5L F
1987-93 3.8L L
Multi-Port Fuel Injected Trucks & Vans
Year Engine 8th VIN Digit
1996 2.4L B
1989 2.5L Turbo J
1992-96 3.3L R
1994-96 3.8L L
1992-96* 3.9L X
1992-96* 5.2L Y
1993-96 5.9L 5 or Z
1994-96 8.0L W
JEEP
Multi-Port Fuel Injected Vehicles
Year Engine 8th VIN Digit
1991-95 2.5L P
1987-96* 4.0L S
1993-96* 5.2L Y
Domestic EAGLE
Multi-Port Fuel Injected Vehicles
Year Engine 8th VIN Digit
1995-96 2.0L Y
1993-96 3.3L T
1993-96 3.5L F

Vehicle Service Information:

The following is a list of publishers who have manuals containing electronic fuel injection system
information. Some manuals may be available at auto parts stores, your local dealer, or your local
public library. For others, you need to write for availability and prices, specifying the make,
model and year of your vehicle.

Aftermarket Vehicle Service Manuals:

Chilton Book Company
Chilton Way
Radnor, PA 19089
Haynes Publications
861 Lawrence Drive
Newbury Park, CA 91320
Cordura Publications
Mitchell Manuals, Inc.
Post Office Box 26260
San Diego, CA 92126
Motor's Auto Repair Manual
Hearst Company
250 W. 55th Street
New York, NY 10019
Vehicle Service Manuals from
Ford Motor Company:
Ford Publication Department
Helm Incorporated
Post Office Box 07150
Detroit, MI 48207

Customer Service

For product information or customer service
please call 1-800-ACTRON-7 (1-800-228-7667)
Monday through Friday, between 8:30 a.m. and
4:30 p.m. Eastern time or fax anytime at
(216) 651-2388.
Actron can also be reached by Email or on the
Internet.
Email address: sunpro@actron.com
Internet home page: http://www.actron.com
Note
All information, illustrations and specifications contained in this manual are based on the latest
information available from industry sources at the time of publication. No warranty (expressed
or implied) can be made for its accuracy or completeness, nor is any responsibility assumed
by Actron Manufacturing Co. or anyone connected with it for loss or damages suffered through
reliance on any information contained in this manual or misuse of accompanying product.
Actron Manufacturing Co. reserves the right to make changes at any time to this manual or
accompanying product without obligation to notify any person or organization of such changes.
Vehicle Service Manuals from
General Motors Corporation:
Buick
Tuar Company
Post Office Box 354
Flint, MI 48501
Oldsmobile
Lansing Lithographers
Post Office Box 23188
Lansing, MI 48909
Cadillac, Chevrolet, Pontiac
Helm Incorporated
Post Office Box 07130
Detroit, MI 48207
Vehicle Service Manuals from
Chrysler Corporation:
Chrysler Corporation
Dyment Distribution Service
Service Publication
12200 Alameda Drive
Strongsville, Ohio 44136

One Year Warranty

If within one year from the date of
purchase this equipment fails due
to defect in materials or workman-
ship, return it to Actron and Actron
will repair it free of charge.
This warranty gives you specific
legalights, and you may also have
other rights which may vary from
state to state.
