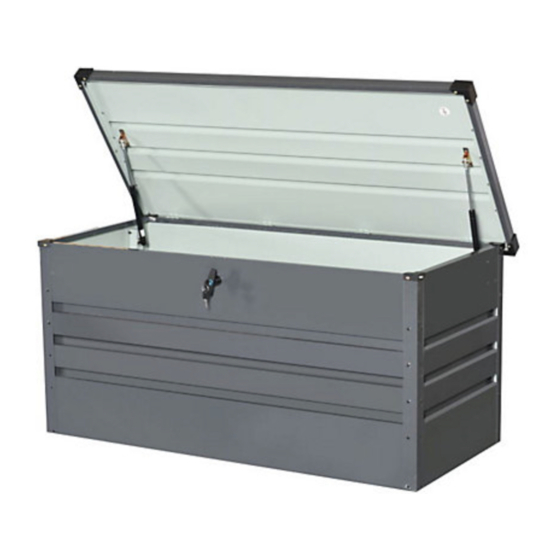

- Page 1 3663602734963 Metal box Boîte en métal Skrzynia metalowa Metallbox tie metali Caja metálica Caixa de metal Metal kutu V11017 3663602734963_Blooma-A4_IM_V03.indb 2 30/10/2017 4:01 PM...
- Page 2 Safety Safety Warranty Period and Conditions Warranty Period and Conditions All express warranties are limited to the warranty period set forth above. Verify that you have read all the instructions below: Limited 2-Year Warranty Some states do not allow exclusions or limitations These instructions are intended to ensure your safety.
- Page 3 3663602734963 Metal box Boîte en métal Skrzynia metalowa Metallbox Cutie metalic Caja metálica Caixa de metal Metal kutu V11017 3663602734963_Blooma-A4_IM_V03.indb 1 30/10/2017 4:01 PM...
- Page 4 IMPORTANT - Please IMPORTANT - Lire WA NE - Przed WICHTIG - Lesen BA HO - read carefully the attentivement le guide u yciem prosz Sie vor Gebrauch separate safety guide de sécurité séparé dok adnie zapozna die separaten before use. avant utilisation.
- Page 5 [PB04] x 1 [P1] x 1 [P2] x 1 640 mm 640 mm [P3] x 1 [P4] x 1 [P5] x 1 1383 mm 1383 mm 1382 mm [S4] x 2 [S5] x 1 [S6] x 1 [S3] x [S8] x 4 [F1] x [F2] x [F8] x...
- Page 6 Exploded view Vue explosée Rysunek z o eniowy Explosionszeichnung Vedere în spa iu Vista detallada Visão detalhada Aç k parça emas [PB04] [G3] [G3] [P4] [C5] [C5] [S4] [S4] [S5] [S6] [B2] [C8] [B1] [C1] [C1] [P2] [C2] [P1] [P3] [C3] [P5] [C4]...
- Page 7 • Remove the protective lms prior to assembly. • IMPORTANT: Only use screws with plastic washers on top of the pre-painted surface. • Retirez les lms de protection avant le montage. • IMPORTANT: Utilisez des vis avec des rondelles en plastique sur le dessus de la surface pré peinte seulement. •...
- Page 8 Installation Installation Instalacja Installation Instalare Instalación Instalação Montaj [F2] [F2] [C1] x 1 [C2] x 1 [P1] [P1] x 1 [C1] [S3] [C2] [F2] x 10 [S3] x 10 [F2] [S3] [P4] [P4] x 1 [F2] x 5 [F2] [S3] x 5 3663602734963_Blooma-A4_IM_V03.indb 6 30/10/2017 4:01 PM...
- Page 9 [F2] [P3] x 1 [F2] x 5 [S3] x 5 [S3] [P3] [C4] [C4] x 3 [F1] x 12 [F1] 3663602734963_Blooma-A4_IM_V03.indb 7 30/10/2017 4:01 PM...
- Page 10 [P5] x 1 [P5] [F2] [P2] [C1] [S3] [C1] x 1 [C3] x 1 [P2] x 1 [F2] [F2] x 10 [C3] [S3] x 10 3663602734963_Blooma-A4_IM_V03.indb 8 30/10/2017 4:01 PM...
- Page 11 [F2] [F2] x 10 [S3] x 10 [S3] [F1] [S3] [F1] x 6 [S3] x 6 [S8] [F8] [F8] x 4 [S8] x 4 3663602734963_Blooma-A4_IM_V03.indb 9 30/10/2017 4:01 PM...
- Page 12 [S4] [S5] [S6] [F1] x 16 [S3] x 16 [S4] x 2 [S3] [F1] [S5] x 1 [S6] x 1 [C8] [F1] [B1] [C8] x 1 [B1] x 1 [F1] x 2 3663602734963_Blooma-A4_IM_V03.indb 10 30/10/2017 4:01 PM...
- Page 13 [B2] [B2] x 1 [PB04] [PB04] x 1 [F2] [F2] x 12 [G3] [F1] [C5] x 2 [C5] [G3] x 2 [F1] x 6 3663602734963_Blooma-A4_IM_V03.indb 11 30/10/2017 4:01 PM...
- Page 14 [F2] x 8 [S3] [F2] [S3] x 8 3663602734963_Blooma-A4_IM_V03.indb 12 30/10/2017 4:01 PM...
- Page 15 Care Entretien Piel gnacja Pflege ngrijire Cuidados Cuidados Bak m 3663602734963_Blooma-A4_IM_V03.indb 13 30/10/2017 4:01 PM...
