CONQUEST PB120E Operator's Manual

Floor sweeper
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

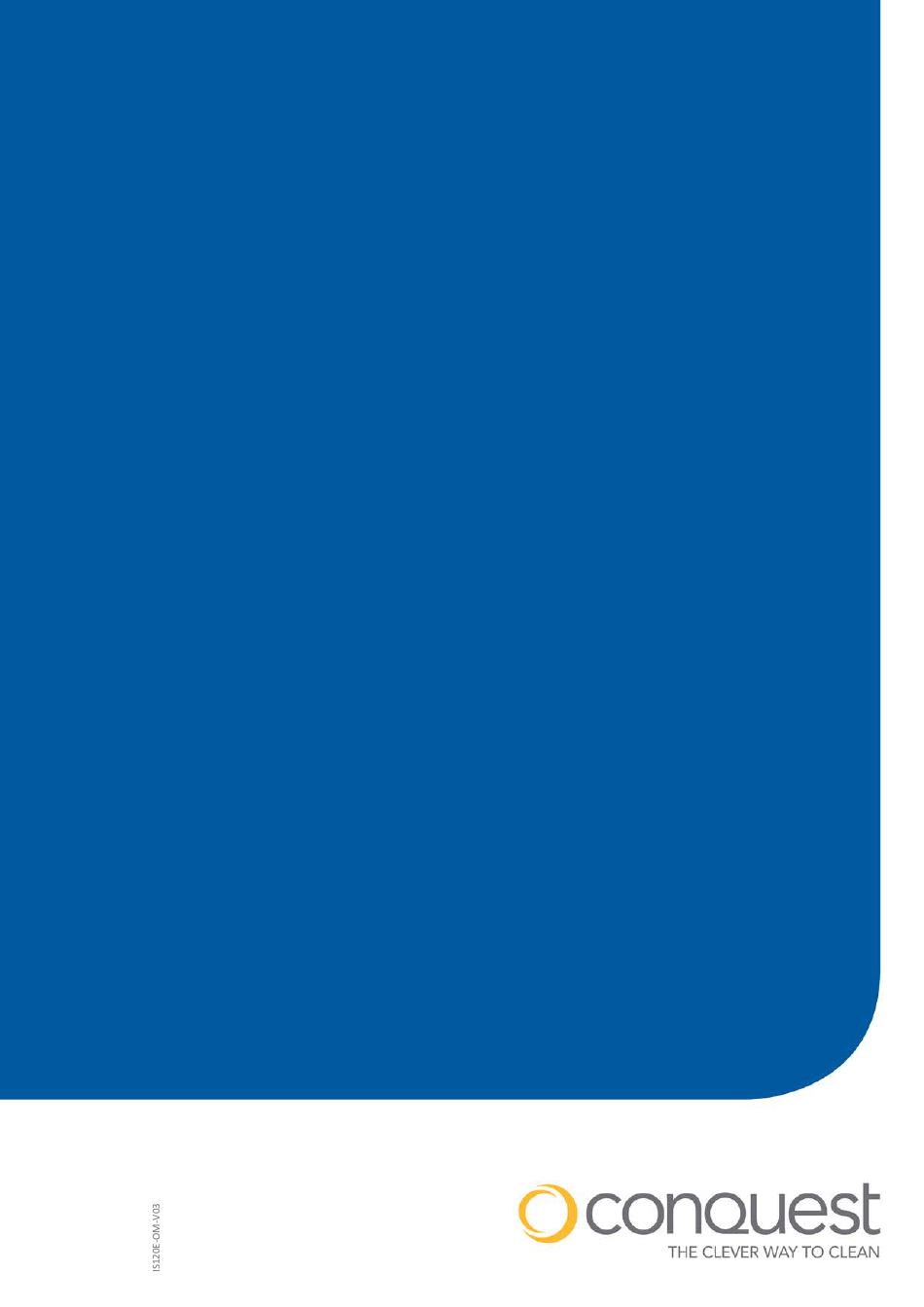

CONQUEST PB120E
FLOOR SWEEPER
OPERATOR MANUAL
T: 1800 826 789
E: support@conquestequipment.com.au
W: conquestequipment.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PB120E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CONQUEST PB120E

Summary of Contents for CONQUEST PB120E

  • Page 1 CONQUEST PB120E FLOOR SWEEPER OPERATOR MANUAL T: 1800 826 789 E: support@conquestequipment.com.au W: conquestequipment.com.au...

  • Page 3: General Notes

    General notes ... . . EN General notes Symbols in the operating Environmental protection instructions Your sales outlet should be informed about Warranty ... . DANGER any transit damage noted when unpacking Accessories and Spare...

  • Page 4: Proper Use

     Never sweep/vacuum up reactive metal  Ensure that the operator wears tight-fit- Beware of dangerous dusts (e.g. aluminium, magnesium, ting clothes. Wear sturdy shoes and electrical current! zinc), as they form explosive gases avoid wearing loose-fitting clothes. when they come in contact with highly ...
  • Page 5 Never leave the batteries in a dis- the device via the battery isolation point – charged state; recharge them as soon (battery plug). as possible.  Always disconnect the battery when Always keep the batteries clean and dry working on the electrics. –...

  • Page 6: Operating And Functional Elements

    Operating and Functional Elements Position 2: Start the engine Illustration of sweeper Operating field 10 Selector for the direction of travel Illustration Illustration 11 Parking brake 1 Nameplate 1 Roller brush and side brush control le- 12 Roller brush wear adjustment / sweep- 2 Seat (with seat contact switch) ing area setting 3 Steering wheel...

  • Page 7: Before Startup

    Disposal! Recommended batteries, chargers Before Startup Order number Lock/ release parking brake Battery pack 36 V, 6.654-282.0  Loosen parking brake; press brake 360 Ah, (in the trough, Do not throw the battery in the pedal at the same time. low maintenance) * dustbin! ...
  • Page 8  Slide seat, release lever and lock in Driving over obstacles Sweeping dry floors place. Driving over fixed obstacles which are 70  Check that the seat is properly locked in mm high or less: position by attempting to move it back- ...

  • Page 9: Care And Maintenance

     Secure the appliance at the lashing Note: Do not use aggressive cleaning points (4x) using tension belts, ropes or agents. chains. Maintenance intervals  Secure the wheels of the machine with Note: The elapsed-time counter shows the wheel chocks. timing of the maintenance intervals.
  • Page 10 2 Safety rod Check hydraulic oil level and refill Replacing roller brush  Fold the safety rod for the high empty- hydraulic oil ing up and insert it into the holder (se- NOTICE cured). The waste container must not be raised. Replace batteries ...
  • Page 11  Drive sweeper on to a smooth, even Manually clean the dust filter surface covered with a visible layer of dust or chalk.  Roller brush and side brush control le- ver (1) backwards: Switches the roller brush on. Roller brush control lever (3) back- wards: Lowers the roller brush.
  • Page 12  Insert and lock the filter cover. Changing the headlight bulb (option)  Unscrew the head lamps.  Take out the head lamps and pull out the plug. Note: Note the positions of the plugs.  Dismantle the head lamps. ...

  • Page 13: Troubleshooting

    Troubleshooting Fault Remedy Device does not drive or drives Sit on the driver seat, the seat contact switch gets activated. only slowly Have the drive motor fuse, FU 13, checked by Customer Service Charging or replacing battery Release parking brake Check for trapped ribbons and strings.

  • Page 14: Eu Declaration Of Conformity

    Roller brush Roller brush diameter Roller brush width Speed Sweeping track Side brushes Side brush diameter Speed (continuous) Solid rubber tyres Size, front 15-4.5 x 8 Size, rear 15-4.5 x 8 Brake Front wheels mechanical Rear wheel Electrical Filter and vacuum system Type Pocket filter Speed...
  • Page 15 120 E TAB. 1 Pag.2...
  • Page 16 TAB.1 Chassis 120 E TAB. POS. Part Nr DENOMINAZIONE Q.ty Description 2101857 Forcella cilindro sollevamento Lifting cylinder fork 2103285 Asta supporto cofano Seat bonnet rod 2108243 Sportello DX spazzola centrale Right door main broom 2108244 Sportello SX spazz.centrale Left door main broom 2103450 Carter lato motore Engine side crankase...
  • Page 17 TAB. 2 120 DY-GPL-E Pag.4...
  • Page 18 TAB.2 Hopper-bumper 120 DY-GPL-E TAB. POS. Part Nr DENOMINAZIONE Q.ty Description 2107783 ASTA DI SICUREZZA "C" Safety rod 2107787 RISCONTRO ASTA DI SICUREZZA "C" Safety rod feedback 2108259 BRACCIO CONTENITORE "C" Hopper lifting arm 2113030 CONTENITORE "C" Hopper 2113042 PARAURTI ANTERIORE "C" Front bumper 2113305 COFANO ANTERIORE Front bonnet...
  • Page 19 TAB. 3 120 E Pag.6...
  • Page 20 Tab.3 Filter.120 E TAB. POS. Part Nr DENOMINAZIONE Q.ty Description 2101731 SUPPORTO SCUOTIFILTRO Filter shaker support 2101845 GRUPPO FILTRANTE Filtering group 2103945 GRUPPO FILTRANTE VERDE Green filtering group 3001675 2° ELEMENTO SCUOTIFILTRO Second element 3001730 COLLARE SUPPORTO SCUOTIFILTRO Collar support filter shaker 3002129 FERMO PER FILTRO A SACCHE Textile filter fastner...
  • Page 21 120 E TAB. 4 Pag.8...
  • Page 22 TAB.4 Fan 120 E TAB. POS. Part Nr DENOMINAZIONE Q.ty Description 2112232 SUPPORTO ELETTROVENTOLA Electric fan support 3012233 SUPPORTO INSONORIZZANTE Insonorizing support 3012234 INSONORIZZANTE PER VENTOLA ASPIRAZIONE Insonorizing for aspiration fan 4201284 ELETTROVENTOLA 36V Electric fan 36V 4300047 VITE TE M6X16 UNI 5739 ZINC. Hexagon screw M6 x 16 ISO 4017 Galvanized 4300048 RONDELLA D.6,4 X 12 UNI 6592 / ZINC.
  • Page 23 TAB. 5 120 E Pag.10...
  • Page 24 Tab.5 Rear whell 120 E TAB. POS. Part Nr DENOMINAZIONE Q.ty Description 2111210 SUPPORTO RUOTA POSTERIORE Motor wheel hub support 3002678 CONTRODADO M16 X 1 Nut M16 x 1 3002686 DISTANZIALE PER IDROGUIDA Spacer 3002708 CILINDRO IDROGUIDA Power steering cylinder 3003639 RONDELLA D.
  • Page 25 120 E TAB. 6 Pag.12...
  • Page 26 TAB. 6 Main broom 120 E TAB. POS. Part Nr DENOMINAZIONE Description 2112939 ALBERO SUPPORTO SPAZZOLA CENTRALE Boom support shaft 6252624 ANTIVIBRANTE M6 Anti vibration M6 3001724 ASTA SOLL.SPAZZOLA CENTRALE Main broom lifting 2102221 BRACCIO MOBILE SPAZZ.CENTRALE Movable arm for main broom 4200618 BUSSOLA K4 10X12X10 Bush K4 10x12x10 4200622 BUSSOLA K4 20X23X20...
  • Page 27 TAB. 7 120 DY-GPL-E Pag.14...
  • Page 28 Tab.7 Side broom 120 DY-GPL-E TAB. Pos. Part Nr DENOMINAZIONE Q.ty Description 2101630 SUPPORTO SPAZZOLA DESTRA Right broom support 4300033 VITE TE M8X20 UNI 5739-8.8 / ZINC Hexagon screw M8x20 ISO 4017/Galvanized 2101498 BRACCIO SPAZZOLA LATERALE DESTRO Right side broom arm 4200622 BUSSOLA K4 20 X 23X 20 Socket K4 20 x 23 x 20...
  • Page 29 120 DY-GPL-E TAB. 8 Pag.16...
  • Page 30 Tab.8 Flap 120 DY-GPL-E TAB. POS. Part Nr DENOMINAZIONE Description 2113048 FLAP 1 Flap 3001360 CERNIERA FLAP 2 Hinge 3001645 SUPPORTO ALBERO FLAP SX 1 Left flap shaft support 2113046 ALBERO APERTURA FLAP 1 Shaft to open flap 3013053 FLAP CONTENITORE 1 Flap hopper 3013052 FERMO GOMMA FLAP 1 Locking strip for flap...
  • Page 31 120 E TAB. 9 Pag.18...
  • Page 32 TAB.9 Front wheel 120 E TAB. POS. Part Nr DENOMINAZIONE Q.ty Description 3007667 PERNO SUPPORTO RUOTA ANTERIORE Front wheel shaft 3007837 MASSA FRENO 180*40 DX CON LEVA Right brake plate 3007838 MASSA FRENO 180*40 SX CON LEVA Left brake plate 4300036 ROSETTA D.8,4 X 17 UNI 6592 / ZINC.
  • Page 33 TAB. 10 120 E Pag.20...
  • Page 34 Tab. 10 Electric motor 120 E TAB. POS. Part Nr DENOMINAZIONE Q.ty Description 3012985 Inverter AC-1 36-48/220A SSL Inverter AC-1 36-48/220A SSL 4200768 Supporto doppio per fusibile Double support for fuse 4212223 Alimentatore 36/12V Power supply 36/12V 3003466 Chiusura tubo aspirazione Suction hose end 4200477 Connettore Anderson SBE 160 A grigio Connector Anderson SBE 160 A gray...
  • Page 35 TAB. 11 120 E Pag.22...
  • Page 36 TAB. 11 Dahsboard 120 E POS. PART Nr DENOMINAZIONE TAB. Q.ty Description 3011253 ANGOLARE ANTERIORE CORTO Dashboard holder 3011254 ANGOLARE ANTERIORE LUNGO Dashboard holder 4201953 BLOCCHETTO AVVIAMENTO Ignition switch 4201225 CHIAVE QUADRO AVVIAMENTO Starting key 3013327 CHIUSURA FORI VOLATA Closing holes 4200653 CLACSON 36V Klaxon 36 V 4211081...
  • Page 37 TAB. 12 120 E Pag.24...
  • Page 38 TAB 12. Hydraulic Plant 120 E TAB. POS. PART Nr DENOMINAZIONE Q.ty Description 3013251 Tubo da pompa ingranaggi a serbatoio olio 1 Hydraulic pipe from gear pump to oil tank 3013252 Tubo da valvola prioritaria a pompa ingranaggi 1 Hydraulic pipe from priority valve to gear pump 3013253 Tubo da idroguida a raccoglitore olio 1 Hydraulic pipe from hydraulics to oil collector 3013254 Tubo da raccoglitore olio a motore spazzola centrale...
  • Page 39 TAB. 13 120 DY-GPL-E Pag.26...
  • Page 40 TAB.13 Kit left broom 120 DY-GPL-E TAB. POS. DENOMINAZIONE Q.ty Description PART Nr 2101512 BRACCIO SPAZZOLA LATERALE SX 1 Left side broom arm 4200702 Bullone forato 3/8" doppia 1 Duble Pipe union 3/8" 4200700 Bullone forato per occhio 3/8" 3 Pipe union 3/8" 4200622 Bussola K4 20 X 23 X 20 2 Socket K4 20x23x20 3003022 Cilindro spazzola laterale...
  • Page 41 TAB.14 120 DY-GPL-E T""" T""" T""" T""" T""" T""" Pag.28...
  • Page 42 TAB.14 Front and rear light kit 120 DY-GPL-E TAB. POS. Part.Nr DENOMINAZIONE Q.ty Desciption 3007829 Supporto fanale posteriore 2 Rear taillight support 4210286 Interruttore stabile “On – Off” 1 2 position switch “On – Off” 4201904 Fanale posteriore rosso 2 Red taillight 4200826 Fanale anteriore a 3 luci 2 Front light 4300261 Vite autofilettante 4,2x32 DIN7981 Zincata...
  • Page 43 120 E Pag.30...
  • Page 44 TAB.15 Closed cabwith plastic curtains 120 E TAB. POS. Part Nr DENOMINAZIONE Q.ty Description Wiper arm 4201857 BRACCIO TERGIVETRO Coupling lever 2108758 ATTACCO LEVA "C" 4200212 CHIUSURA A LEVA Closing with lever 4300012 DADO BASSO M8 UNI 5589 ZINC. Exagon nut M8 ISO 4035/Galvanized 518537009 DADO ESAG.
  • Page 45 120 E TAB.16 Pag.32...
  • Page 46 TAB.16 Dust control cover for side broom 120 E TAB. POS. Part Nr DENOMINAZIONE Q.ty Description 2102623 Side broom protection PROTEZIONE SPAZZOLA LATERALE 4300048 Flat washer 6,4x12 ISO 7089 Galvanized RONDELLA D.6,4X12 UNI 6592 ZINC. 4300047 Hexagon screw M6x16 ISO 4017/Galvanized VITE TE M6X16 UNI5739 ZINC.
