www.railking.com

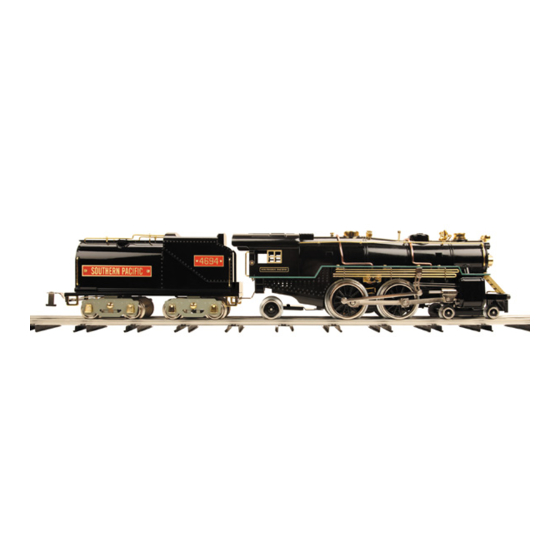

Tinplate 4696
Steam Locomotive
OPERATOR'S MANUAL
Traditional Version
Compatibility
This engine will operate on any traditional
42" diameter STD. Gauge track system,
including M.T.H. ' s traditional tubular
track. It is also compatible with most
standard AC transformers. (See page 7 for
a complete list of compatible transformers
and wiring instructions.)
PLEASE READ BEFORE USE AND SAVE
Advertisement
Table of Contents
Related Manuals for MTHTrains Tinplate 4696
Summary of Contents for MTHTrains Tinplate 4696
- Page 1 Tinplate 4696 Steam Locomotive OPERATOR’S MANUAL Traditional Version Compatibility This engine will operate on any traditional 42” diameter STD. Gauge track system, including M.T.H. ’ s traditional tubular track. It is also compatible with most standard AC transformers. (See page 7 for a complete list of compatible transformers and wiring instructions.)
- Page 2 Table of Contents Set Up Checklist....................3 Lubrication......................3 Basic Operation....................4 Activating Features....................4 Maintenance......................5 Lubricating and Greasing Instructions..............5 Cleaning The Wheels and Track................5 Headlight Replacement Instructions..............6 Transformer Compatibility and Wiring Chart............7 Service & Warranty Information................8 Limited One-Year Warranty...................
- Page 3 To connect the engine and tender properly, the drawbar pin must pass through the top hole, the hole in the drawbar and the lower hole below the engine cab. Drawbar connection Tinplate 4696 Steam Locomotive...
- Page 4 The 4696 Steamer features a mechanical bell ringer. When activated the bell will ring while the engine is moving. To activate the bell, pull up on the rod located behind the sand dome. To discontinue the bell ringing, push down on the rod located behind the sand dome. Tinplate 4696 Steam Locomotive...
- Page 5 Thereafter, keep an eye on the track and clean it when it gets dirty to ensure good electrical contact and to lengthen the life of the tires. Maintenance Kit (30-50010) Track Cleaning Block (40-1099) Tinplate 4696 Steam Locomotive...
- Page 6 The firebox glow light bulb is accessed from the under side of the engine, behind the motor. Should you need to replace the red bulb, unscrew the bulb by turning counterclockwise. Reverse the procedure for installing a new bulb. Tinplate 4696 Steam Locomotive...
- Page 7 Standard Lionel SW Unknown 130-Watt Standard Lionel TW 8-18v 175-Watt Standard Lionel ZW A,B,C or D 8-20v 275-Watt Standard Lionel Post-War A,B,C or D Common 0-20v 135/190 Watt Electronic Celebration Series ZW * Conventional Mode Only Tinplate 4696 Steam Locomotive...
- Page 8 Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty When you suspect an item is defective, please check the operator's manual for standard operation and trouble-shooting techniques that may correct the problem. Additional information may be found on the M.T.H.
