PUREWHITE REPLACEMENT LED IN-GROUND POOL & SPA LAMPS
®
Model #s: LPL-P2-WHT-12, LPL-P2-WHT-120, LPL-M1-WHT-12, LPL-M1-WHT-120,
LPL-PR-WHT-120, LPL-PR-WHT-12 PureWhite Replacement LED In-Ground Pool and
spa lamps offer superior, bright white illumination for your pool. This owner's manual
contains important information on installing and using your new PureWhite Replacement
LED In-Ground Pool or Spa lamp. Please read it carefully and keep it in a safe place for
future reference.
WARNING
THIS DEVICE IS NOT INTENDED FOR USE WITH EMERGENCY EXIT FIXTURES
OR EMERGENCY EXIT LIGHTS.
WARNING
PERMANENT DAMAGE TO THE LOW VOLTAGE 12VAC LAMP WILL OCCUR
IF INSTALLED ON A 120VAC CIRCUIT.
PureWhite Replacement LED In-Ground Pool and spa lamps are available in 12VAC
(low voltage) and 120VAC models as indicated on the product packaging. Each lamp has a
screw-in Edison base.
ATTENTION 12V PUREWHITE OWNERS!
A socket voltage range of 12.0 –15.0 will achieve optimal brightness. To verify the voltage,
at the lamp socket, measure the open circuit voltage (no lamp in the socket).
DANGER! RISK OF ELECTRICAL SHOCK OR ELECTROCUTION!
Always disconnect power to the pool light at the circuit breaker panel before attempting
to service the lamp. Failure to do so could result in serious injury or death due to
electrical shock. Refer to the original manufacturer's pool light installation manual before
proceeding. As with any electrical device, installation and service should always be
performed by a qualified individual. This device is not intended for use in anything
other than in-ground pools.
RATED LAMP LIFE
The illumination generated by the PureWhite Replacement LED In-Ground Pool lamp is
based on Light Emitting Diode (LED) technology. The average expected lamp life is rated up
to 50,000 elapsed time hours under normal operating conditions. [Temperature: 33°F to 95°F
(1°C to 35°C), Humidity: 0-95% non-condensing].
SAFETY PRECAUTIONS
• Do not open, service or tamper with any internal component of the PureWhite
Replacement LED In-Ground Pool lamp. Doing so will void the warranty. Follow each
instruction in this owner's manual and pay careful attention to all warnings.
1
• Do not directly expose or immerse the PureWhite Replacement LED In-Ground Pool
lamp in water without containing it in a proper, watertight, NRTL (nationally recognized
testing laboratory) pool light housing and niche assembly.
• Keep the pool light housing dry.
• Handle the PureWhite Replacement LED In-Ground Pool lamp with care. Be careful not to drop the unit.
IMPORTANT NOTE: PureWhite lamps are recommended for installation by a qualified pool
professional.

INSTALLATION

The installation steps in this owner's manual are intended as guidelines. For specific instructions
on how to replace a pool lamp, please refer to the original manufacturer's pool light installation
manual before proceeding.
PureWhite Replacement LED In-Ground pool and spa lamps must be installed in a compatible
NRTL pool light housing.
COMPATIBLE NRTL LIGHT HOUSINGS INCLUDE:
Hayward Astrolite SP058 & SP059 Series
® ™
Pentair Amerlite 784 Series
®
Jacuzzi ® Full Moon ™
Sta-Rite ® SwimQuip ™ Series 0508
GASKET COMPATIBILITY
Hayward Astrolite SP058 & SP059 Housing – Use replacement gasket specified by manufacturer.
® ™
Pentair ® Amerlite 784 Series & SpaBrite ™
– Use replacement gasket specified by manufacturer.
Jacuzzi ® Full Moon ™
Sta-Rite ® SwimQuip ™ Series 0508 – Requires installation with included J&J Gasket.
THE PRODUCT WARRANTY IS VOIDED IF THE PROPER GASKET IS
NOT INSTALLED. SEE THE "WARRANTY" SECTION AT THE END OF THIS
MANUAL FOR DETAILS.
WARNING
READ THIS BEFORE ATTEMPTING INSTALLATION.
Your PureWhite lamp is not an ordinary light bulb. It is a valuable electronic device that is not designed
to come in direct contact with water. An improper installation that results in water leakage into the
pool light housing can permanently damage the PureWhite lamp. Please read these installation steps
and the original manufacturer's pool light installation manual carefully before proceeding.

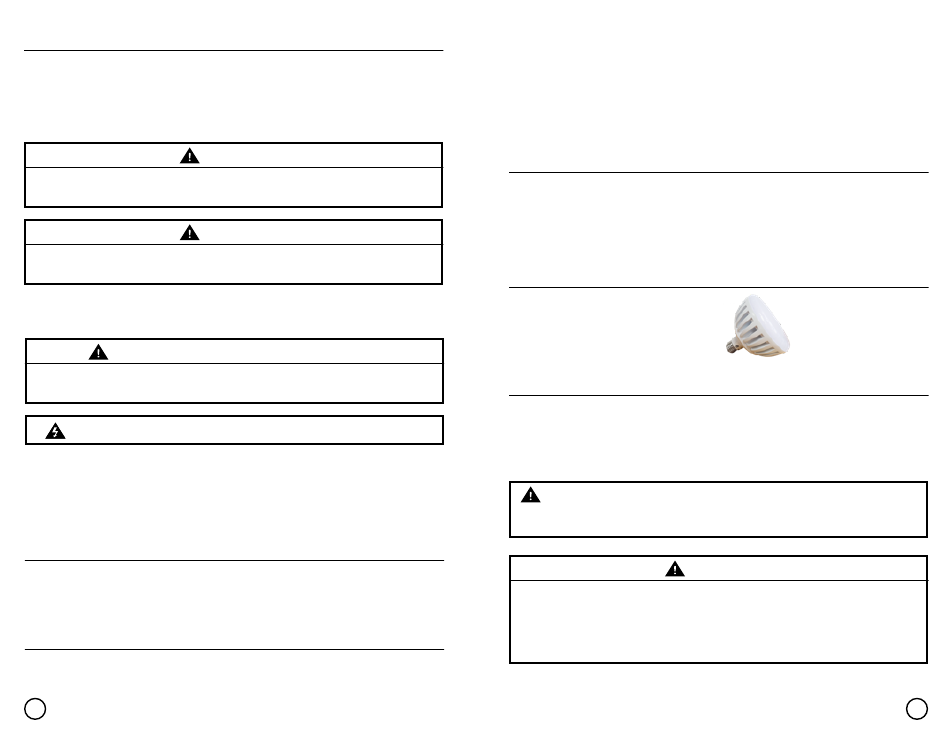

Figure 1: LPL-P2-WHT
Pool Light
Series – Requires installation with included J&J Gasket.
