J&J Electronics ColorSplash XG LPL-F2C Series Installation And Operation Manual

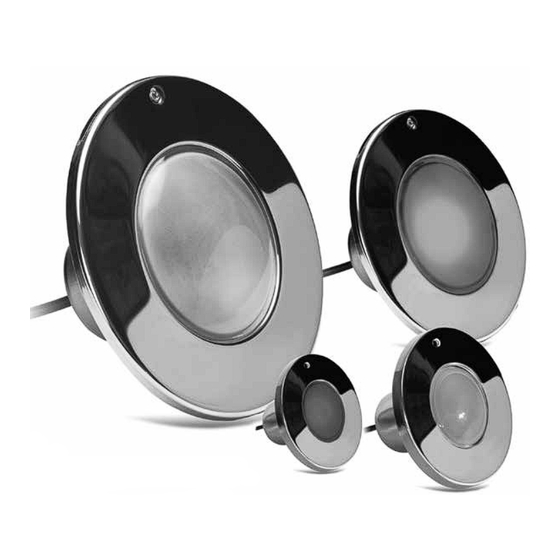

Led pool and spa light fixture
Table of Contents

Advertisement

Available languages

Available languages

TERMS AND CONDITIONS
This warranty is available to the original purchaser of the product(s) only. This warranty applies only when
products are properly installed in an in-ground pool/spa; any other use voids the warranty. Products must be
used in lighting equipment designed and approved for the application and in environmental conditions within
the normal specified operating range. This warranty does not apply to any abnormal use of product(s), use in
violation of any applicable standard, code or instructions for use in installations including those contained in the
latest National Electrical Code (NEC), the Standards for Safety of Underwriters Laboratory, LLC (UL), Standards
for the American National Standards Institute (ANSI). This warranty will not apply in the event of conditions
demonstrating abnormal use or stress, under/over voltage/current conditions, excessive switching cycles or
operating hours or outside the recommended operating conditions. This warranty does not apply to color shifts
or dimming caused by emissions. LED color shifts and dimming occur normally over time. This warranty does
not cover damage occurring during shipment, damage or failure resulting from alteration, accident, acts of God,
theft, abuse, negligent installation, improper service, unauthorized repairs, freezing or where adequate care has
not been taken to prevent damage to the product(s). Tampering with any internal component of this product(s)
will void the warranty.
This warranty gives you specific rights. You may have other rights that vary according to the laws of your state.
LIMITATION OF LIABILITY
THE FOREGOING SHALL CONSTITUTE THE EXCLUSIVE REMEDY OF THE PURCHASER AND IS IN LIEU
OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING ALL WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ALL WARRANTIES ARISING FROM
COURSE OF DEALING OR USAGE OR TRADE. THE LIABILITY OF J&J UNDER THIS WARRANTY SHALL
BE LIMITED TO THE REPLACEMENT, REPAIR OR PRO-RATED CREDIT OF THE PRODUCT(S) AS STATED
HEREIN. J&J IS NOT RESPONSIBLE FOR SHIPPING OR TRANSPORTATION COSTS RELATED TO OBTAINING
WARRANTY SERVICE. IN NO EVENT SHALL J&J BE LIABLE FOR ANY OTHER COSTS OR DAMAGES,
INCLUDING LOST PROFITS OR REVENUES, LABOR CHARGES OR FOR ANY INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES.
J&J reserves the right to change the warranty and/or warranty period without prior notice and without incurring obligation.
To obtain warranty service, retain the failed Product; retain the installation invoice showing product purchase price
and contact J&J Electronics, LLC at 800.735.4553 ext. 242 or warranty
Irvine, California | www.jandjpoolspa.com
© 2019 J&J Electronics, LLC All rights reserved. ColorSplash
All registered and trademarked brands and names are the property of their respective companies. REV. 091319
15
jandjelectronics.com. As of 09/09/2019
@
and PureWhite
are trademarks of and manufactured by J&J Electronics, LLC
®
®
ColorSplash
XG Series
®
LED Pool and Spa Light Fixture
-XG
IMPORTANT SAFETY INSTRUCTIONS
READ, FOLLOW AND SAVE THESE INSTRUCTIONS
TECHNICAL SUPPORT
For technical support on the ColorSplash
®
J&J Electronics Customer Service at:
800.735.4553 ext. 242
For more information about this or other J&J Electronics pool and spa lighting products, please visit:
www.jandjpoolspa.com
Installation and
Operation Guide
XG Series Underwater LED Lights please contact:

Advertisement

Chapters

Table of Contents
loading

Summary of Contents for J&J Electronics ColorSplash XG LPL-F2C Series

  • Page 1 Installation and TERMS AND CONDITIONS Operation Guide This warranty is available to the original purchaser of the product(s) only. This warranty applies only when products are properly installed in an in-ground pool/spa; any other use voids the warranty. Products must be used in lighting equipment designed and approved for the application and in environmental conditions within the normal specified operating range.
  • Page 2: Table Of Contents

    ColorSplash XG Series Light Installation Manual and Contents Operation Guide for the following part numbers series only: Important Safety Precautions and Warnings ....................2-4 LPL-F2C-XXXX, LP-F2CW-XXXX, LPL-S2CW-XXXX and LPL-S2C-XXXX ColorSplash XG Series LED Pool and Spa Light Fixtures Installation ............4-8 COLORSPLASH XG SERIES LED POOL AND SPA LIGHT ®...
  • Page 3: Colorsplash Xg Series Led Pool And Spa Light Fixtures Installation

    INSTALLER NOTICE: This light’s external cord cannot be replaced and should be handled DANGER! FAILURE TO PROPERLY INSTALL AND USE THIS with care. Any damage to this external cord necessitates replacing the light. PRODUCT CAN RESULT IN SERIOUS BODILY INJURY OR DEATH. RATED FIXTURE LIFE: The illumination generated by ColorSplash XG Series LED light fixtures are based on Light Emitting Diode (LED) technology.
  • Page 4: New Construction Installation Steps

    NEW CONSTRUCTION INSTALLATION STEPS 5. Using the stainless steel pilot screw provided, install the ColorSplash XG series fixture assembly into the niche, carefully tightening the pilot screw. (Reference Figure 1) (ONCE ALL ELECTRICAL REQUIREMENTS ARE MET) 6. Fill the pool to completely submerge the light prior to operating the light. Do not operate light out of water, this may cause damage to the light.
  • Page 5: Existing Construction Installation Steps

    5. Tape the three existing light wires to the replacement light cord with electrical insulating tape. Avoid wrapping too much tape around the cords. Otherwise, the thickness will be too great for the cord to be able to be pulled through the conduit to the junction box. INSTALLER NOTICE: This light’s external cord cannot be replaced and should be handled with care.
  • Page 6: Operation For 120Vac And 12Vac Colorsplash Xg Series

    OPERATION FOR 120VAC AND 12VAC COLORSPLASH XG SOLID COLORS SERIES LED POOL AND SPA LIGHT FIXTURES Your XG Series LED light fixture has five colors available for you to experience. Available colors are: ColorSplash XG Series LED Pool and Spa light fixtures are operated through the light’s 8.
  • Page 7: Description Of Light Shows And Colors

    MEMORY MODE 8. PARISIAN BLUE: Fixed Color When your ColorSplash XG light fixtures are turned off for longer than 10 seconds, the 9. NEW ZEALAND GREEN: Fixed Color light show or solid color on display will be stored. The next time the power is turned on, the fixture will display that saved memory light show or color.
  • Page 8 J&J ELECTRONICS, LLC 3-YEAR LIMITED WARRANTY WARNING COLORSPLASH XG SERIES LED LIGHT FIXTURES ® ColorSplash XG Series LED lighting is NOT compatible with the Pentair IntelliBrite J&J Electronics, LLC (“J&J”) warrants its LED In-Ground Light Fixtures to be free from defects in Controller (Part Number: 600054).
  • Page 9 Guía de instalación TÉRMINOS Y CONDICIONES y operación Esta garantía solo está disponible para el comprador original del producto o productos. Esta garantía solo se aplica cuando los productos están instalados correctamente en una piscina/un spa en tierra; cualquier otro uso anula la garantía.
  • Page 10 Manual de instalación de la serie XG de Color Splash y guía de Contenido operación solo para la siguiente serie de números de pieza: Advertencias e Instrucciones de Seguridad Importantes ..............17-19 LPL-F2C-XXXX, LP-F2CW-XXXX, LPL-S2CW-XXXX and LPL-S2C-XXXX Instalación de las Luminarias LED para piscinas y spas de las serie XG de ColorSplash ....19-23 LUMINARIA LED PARA PISCINAS Y SPAS DE LA SERIE XG DE COLOR SPLASH - DISPONIBLE EN MODELOS 120VAC Y 12VAC...
  • Page 11: Instalación De Las Luminarias Led Para Piscinas Y Spas De Las Serie Xg De Colorsplash

    ¡ ADVERTENCIA! ¡ PELIGRO! LA INSTALACIÓN INCORRECTA Y EL USO INCORRECTO DE ESTE PRODUCTO PUEDE RESULTAR EN LESIONES INFORMACIÓN DE SEGURIDAD IMPORTANTE PARA LA INSTALACIÓN DE LA LUZ. CORPORALES GRAVES O LA MUERTE. No empalme el alambre bajo el agua o detrás del nicho de luz durante la instalación de esta luz bajo ningunas circunstancias.
  • Page 12: Pasos Nuevos De La Instalación De Construcción

    PASOS NUEVOS DE LA INSTALACIÓN DE CONSTRUCCIÓN 5. Con el tornillo piloto de acero inoxidable proporcionado, instale la unidad del dispositivo de la serie XG de ColorSplash en el nicho, apretando con cuidado el (UNA VEZ QUE SE CUMPLEN TODOS LOS REQUISITOS ELÉCTRICOS) tornillo de piloto.
  • Page 13: Pasos De Instalación De Construcción Existentes

    A: GFCI, disyuntor y fuente 5. Pegue los tres cables de luz al cable de luz de reemplazo con cinta aislante eléctrica. Evite de alimentación envolver demasiada cinta alrededor de los cables. De lo contrario, el grosor será demasiado Mín. de 1.21 m grande para el cable para ser tirado a través del conducto a la caja de conexiones.
  • Page 14 FUNCIONAMIENTO PARA LUMINARIAS LED PARA COLORES SÓLIDOS PISCINAS Y SPAS DE LA SERIE XG DE COLORSPLASH PARA Su luminaria LED de la serie XG tiene cinco colores disponibles para que usted experimente. Los colores disponibles son: 120 VCA Y 240 VCA 8.
  • Page 15: Solución De Problemas

    FUNCIÓN DE RETORNO 8. AZUL PARISIENSE: Color fijo Puede volver al último efecto de color bloqueado mientras está en un modo de espectáculo 9. VERDE DE NUEVA ZELANDA: Color fijo de luz o colores sólidos fijos mediante la activación de la función “retorno”. Para volver al último efecto de color bloqueado, el ciclo de alimentación se apaga/se enciende catorce (14) veces, y 10.
  • Page 16 GARANTÍA LIMITADA DE 3 AÑOS DE LAS LUMINARIAS ¡ ADVERTENCIA! LED DE LA SERIE XG DE COLORSPLASH DE J&J ® ELECTRONICS, LLC La iluminación LED de la serie ColorSplash XG NO es compatible con el controlador de Pentair IntelliBrite (número de pieza: 600054). La instalación de la luminaria LED de la ®...
  • Page 17 NOTES / NOTA: NOTES / NOTA:...
