INSTRUCTIONS FOR INSTALLATION, OPERATION,
WARNING
SHO-FLOW 1
50-300 GPM
TASK FORCE TIPS LLC
MADE IN USA • TFT.com
©Copyright Task Force Tips LLC 2019-2020
AND MAINTENANCE
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/
serialnumber.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with
the operation, servicing, and safety procedures associated with this product. This manual
should be kept available to all operating and maintenance personnel.
SHO-FLOW 2
LOW FLOW
100-500 GPM
SHO-FLOW
Flow Meter Operations
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
®

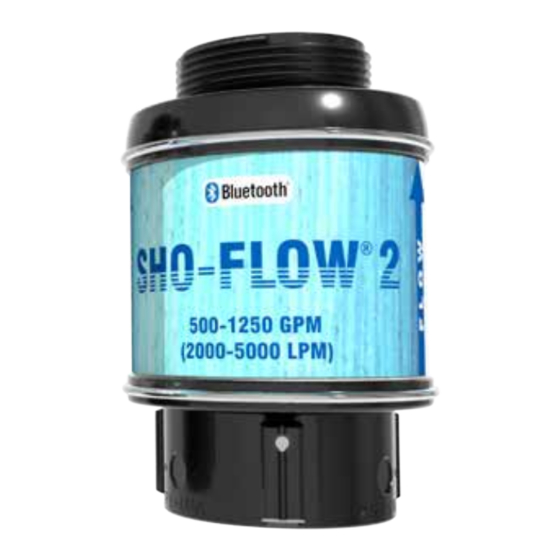

SHO-FLOW 2
HIGH FLOW
500-1250 GPM
LIE-100 August 17, 2020 Rev05
Advertisement
Table of Contents
Related Manuals for TFT SHO-FLOW 1
Summary of Contents for TFT SHO-FLOW 1
- Page 1 Understand manual before use. Operation of this device without understanding the manual and WARNING receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/ serialnumber. This equipment is intended for use by trained and qualified emergency services personnel for firefighting.
- Page 2 DANGER PERSONAL RESPONSIBILITY CODE The member companies of FEMSA that provide emergency response equipment and services want responders to know and understand the following: 1. Firefighting and Emergency Response are inherently dangerous activities requiring proper training in their hazards and the use of extreme caution at all times.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1.0 MEANING OF SAFETY SIGNAL WORDS ......................3 2.0 SAFETY ................................4 3.0 GENERAL INFORMATION ..........................4 3.1 VARIOUS MODELS AND TERMS 3.2 SPECIFICATIONS 3.2.1 DEVICE SPECIFICATIONS 3.2.2 APP SPECIFICATIONS 3.3 COUPLINGS 3.4 USE WITH SALT WATER 4.0 INSTALLATION .............................. -
Page 4: Safety
2.0 SAFETY Equipment may be damaged if frozen while containing significant amounts of water. Such damage WARNING may be difficult to detect visually. Subsequent pressurization can lead to injury or death. Any time the equipment is subject to possible damage due to freezing, it must be tested and approved for use by qualified personnel before being considered safe for use. -
Page 5: Specifications
INLET THREADS OUTLET THREADS DIRECTION OF FLOW Figure 3.1 3.2 SPECIFICATIONS 3.2.1 DEVICE SPECIFICATIONS Model Name SHO-FLOW 1 SHO-FLOW 2 (Low Flow) SHO-FLOW 2 (High Flow) Operating Flow Range 50-300 GPM 100 - 500 GPM 500 - 1250 GPM (200-1200 LPM) -
Page 6: App Specifications
3.3 COUPLINGS The SHO-FLOW 1 is offered with standard hose threaded connections: 1.5” NH, 1.5” BSP, or 1.5” NPSH. The SHO-FLOW 2 is offered with standard hose threaded connections: 2.5” NH, 2.5” BSP, or 2.5” NPSH. Inlets are rigid female threaded couplings. Fluid is sealed using a hose gasket. -
Page 7: Operation
5.0 OPERATION A smartphone app is required to view the flow rate of the SHO-FLOW. Please download the app from either the Google Play Store or the Apple App Store before proceeding. Search SHO-FLOW in either store. Create a flow greater than or equal to the minimum rated flow rate through the SHO-FLOW to turn on the device and start transmitting the Bluetooth signal. -
Page 8: Establishing A Bluetooth Connection
Bluetooth signal. Press scan button to begin searching for SHO-FLOW. Press button with the matching device name to connect. tft.com/EXXXXXX DEVICE NAME Press the CONNECT button. (the name on the SHO-FLOW will match the listed... -
Page 9: Establishing A Remote Viewer Connection
Link Retain Time Anytime you stop the flow (eg. to talk or adjust the set-up), the power stops and the Bluetooth link is broken. Typically, it should take less than 5 seconds to reconnect automatically. If you plan to start and stop the flow often and do not wish to wait the 5 sec for the automatic reconnection to occur, it is possible to set a Link Retain Time. -
Page 10: Maintenance
6.0 MAINTENANCE No maintenance is required. Calibration is not required under normal circumstances. If needed, see section 5.5. If unit becomes damaged and does not display correct data, send it back to the factory for service. Any alterations to the product or its markings could diminish safety and constitutes a misuse of CAUTION this product. -
Page 11: Warranty
46383-9327 USA, within a reasonable time after discovery of the defect. TFT will examine the equipment. If TFT determines that there is a defect attributable to it, TFT will correct the problem within a reasonable time. If the equipment is covered by this limited warranty, TFT will assume the expenses of repair. -
Page 12: Operation And Inspection Checklist
Operating equipment that has failed the checklist is a misuse of this equipment. TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 • 219-462-6161 • Fax 219-464-7155 MADE IN USA • TFT.com ©Copyright Task Force Tips LLC 2019-2020 LIE-100 August 17, 2020 Rev05...
