INTRODUCTION
The Singulair system is the finest equipment available
and utilizes the most up-to-date wastewater treatment
technology. It is a sound investment that protects you and
the environment. Please take the time to familiarize
yourself with the contents of this manual.
HOW THE SINGULAIR
Developed to serve homes and small businesses beyond
the reach of city sewers, the Singulair system employs the
extended aeration process. Similar to the treatment method
used by most municipal
wastewater treatment
facilities, this process
involves a natural,
biological breakdown of
the organic matter in
wastewater.

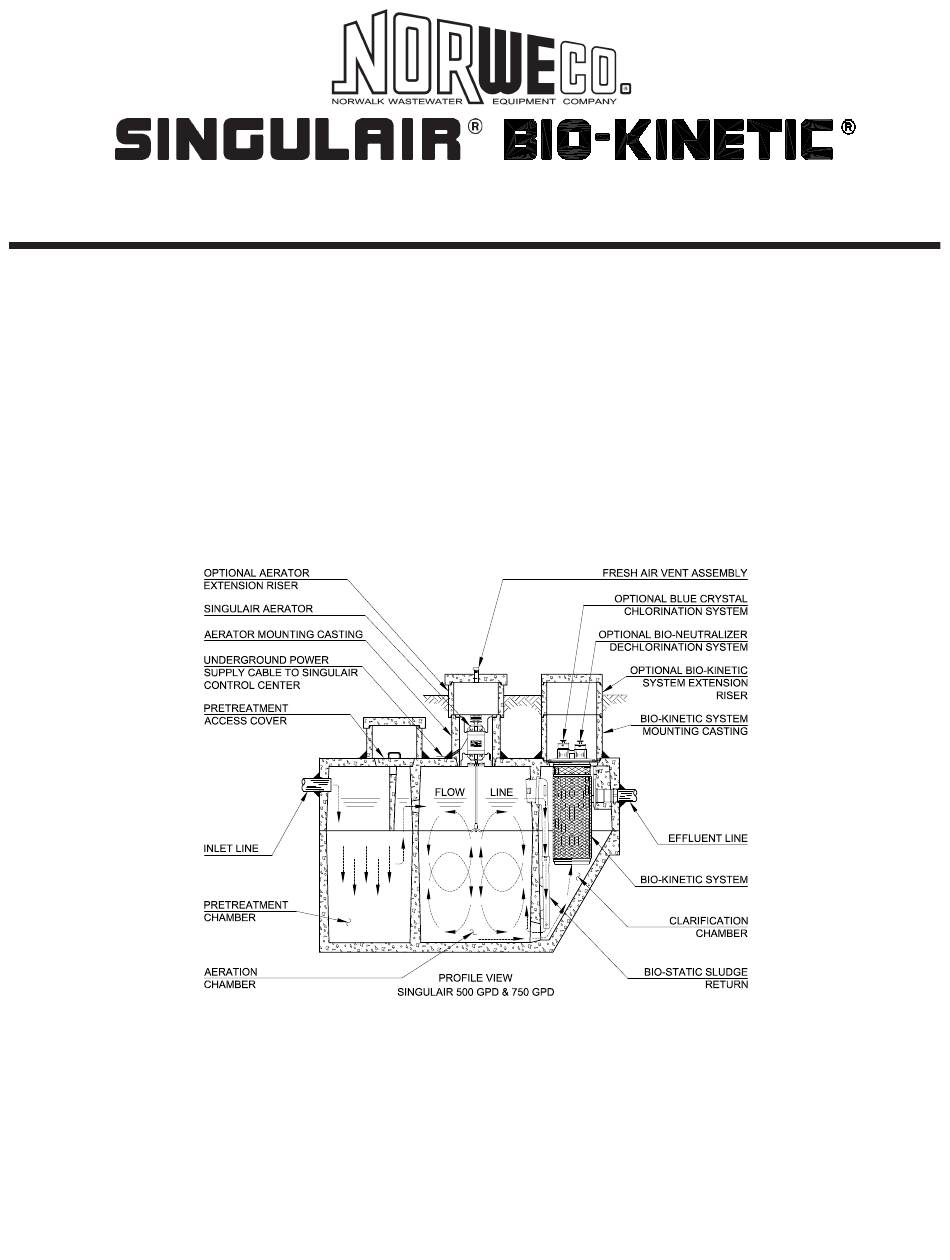

Wastewater enters the
pretreatment chamber
where
anaerobic
bacterial
action
combines with the
effects of gravity to
precondition the waste
before it flows into the
aeration chamber. Once
in the aeration chamber,
aerobic bacteria utilize
the organic matter in
the wastewater to
biologically convert the
waste
into
stable
substances. Following aeration, flow is transferred to the
clarification chamber where the effects of gravity settle out
biologically active material. The Bio-Static sludge return,
located in the clarification chamber, creates hydraulic
currents that gently transfer settled particles back to the
aeration chamber. As clarified liquids pass through
the Bio-Kinetic system, they are filtered, settled and
flow equalized. As a result, complete pretreatment,
aeration, clarification and final filtration are assured. The
Singulair system reliably protects you, your property and
the environment.
MODEL 960 WASTEWATER TREATMENT SYSTEM
OWNER'S MANUAL
®
SYSTEM WORKS
FEATURES AND ADVANTAGES
Singulair tanks, access risers and covers are reinforced
precast concrete, manufactured by the licensed Norweco
distributor. Internal walls and baffles are cast-in-place to
insure uniformity and maximum strength. All components
within the system that will contact the wastewater and
provide treatment are constructed entirely of molded
plastic, stainless steel or rubber.
The Singulair aerator is powered by a 1725 RPM, 115 volt,
60 hertz, single-phase, fractional horsepower motor. It is
the only electrically powered component in the Singulair
All system controls and necessary owner information are
conveniently located at your fingertips.
Non-mechanical flow equalization and final filtration is
accomplished within the Singulair tank by the Bio-Kinetic
system. This revolutionary device is installed in the
clarification chamber and connected to the system outlet.
Optional chlorination and dechlorination may be included in
the Bio-Kinetic system if required. All Singulair components
work together to assure complete pretreatment, aeration,
clarification and final filtration.
system. The aerator
has been designed
specifically for use in
the Model 960. It costs
less to operate and
consumes fewer kilowatt
hours of electricity than
most major appliances.
Singulair aerators are
supplied with a prewired
electrical control center
contained in a corrosion
resistant enclosure.
The control center
contains the Singulair
time clock and selector
switch that control
aerator operation. The
local distributor's name,
address and telephone
number are displayed on
the control center cover.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SINGULAIR BIO-KINETIC 960 and is the answer not in the manual?

Questions and answers

Summary of Contents for norweco SINGULAIR BIO-KINETIC 960

  • Page 1 Singulair tanks, access risers and covers are reinforced and utilizes the most up-to-date wastewater treatment precast concrete, manufactured by the licensed Norweco technology. It is a sound investment that protects you and distributor. Internal walls and baffles are cast-in-place to the environment.
  • Page 2 ® ® SINGULAIR SYSTEM PERFORMANCE SINGULAIR AERATOR Rivaling the performance of the most advanced wastewater The aerator has been specifically designed for use in the treatment plants in the world, the Singulair Model 960 system Singulair system and includes special alloy and molded complies with USEPA wastewater treatment guidelines for plastic parts to prolong aerator life.
  • Page 3 The time clock is factory preset and should not be adjusted by the owner. Your factory-trained Norweco distributor will make necessary adjustments under the specific direction and authorization of the local regulatory agency.
  • Page 4 ® NON-MECHANICAL BIO-NEUTRALIZER DECHLORINATION FLOW EQUALIZATION TABLETS The patented design of the Bio-Kinetic system provides In environmentally sensitive areas, environmental regulations non-mechanical flow equalization for the Singulair Model 960 may require the use of Bio-Neutralizer dechlorination tablets. wastewater treatment plant. Equalization reduces incoming Manufactured as an efficient and dependable means to hydraulic surges (e.g.
  • Page 5 Semi-annual service inspections, at six month intervals for the first two years of system operation, are provided by your local Norweco distributor and are included in the original purchase price of the Singulair system. Costs for travel and labor are not charged to the owner.
  • Page 6 If this card only aerator on the market today backed by a fifty has not been returned to Norweco, complete and mail it year warranty and exchange program. Each Singulair immediately. If it is not returned within thirty days of the...
