  • Page 1 HQUA Instruction Manual for Pond Aeration System HQUA-PAS20...
  • Page 3: Table Of Contents

    Section 2 General Information………..5-13 2.1 System Components 2.2 Specifications 2.3 Installation 2.4 Initial Start-up & Seasonal Operation Section 3 Maintenance…………………..13 3.1 Replacement Parts Section 4 Troubleshooting……………….14 Section 5 After-Sales Service…………...15 Version No.20180101 By James HQUA Technical Support Team At TX...
  • Page 4: Section 1 Safety Information

    Safety Information Section 1 Safety Information Before starting the installation job, it’s very important to read the entire instructions below. Make sure that you understand these in order to avoid potential hazards. Failure to do so may result in serious personal injury or damage to the equipment. Electric Shock •...
  • Page 5: Section 2 General Information

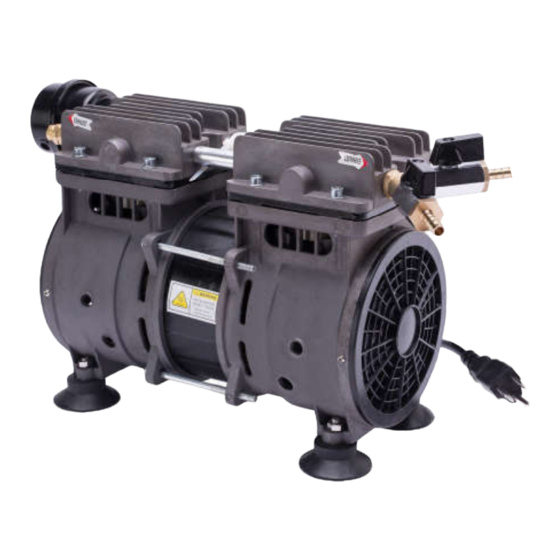

    Section 2 General Information 2.1 System Components HQUA-PAS20RPC Rocking Piston Compressor 1. High efficiency, continuous-duty rocking piston compressor. 2. Rubber compressor mounts reduce noise and vibration for silent operation. 3. 4.5 ft Electrical cord with a 3-pin plug.
  • Page 6: Specifications

    General Information HQUA-PAS20AD Airflow Diffuser 1. EPDM non-stick 10” membrane diffuser sticks provides the synergy of air stones while being virtually maintenance-free. 2. Stainless steel connector for the airline and the diffuser plate. 3. 12” square stainless steel base for the diffuser’s stability HQUA-PAS20AL Airline 3/8”...
  • Page 7: Installation

    General Information 2.3 Installation Tool Required: • Rake • Boat/Raft/Swimsuit • 7/8” Wrench • Shovel • Phillips screwdriver • Coast Guard-approved life jacket...
  • Page 8 General Information...
  • Page 9 General Information...
  • Page 10 General Information...
  • Page 11 General Information Final Step: Installing Diffusers from a Boat/Raft: Have one person on shore guiding the airline as a second person uses a boat or raft, extend the airline out to the area of the pond that the diffuser will be located. Gently release the diffuser into the water.
  • Page 12: Initial Start-Up & Seasonal Operation

    Operating in freezing conditions on an ice-covered pond will cause large open water areas at diffuser sites. Ice thickness around open areas will be much thinner than the surrounding areas. HQUA strongly recommends that “Danger - Thin Ice” be posted at frequent intervals around pond.
  • Page 13: Section 3 Maintenance

    • Turn on compressor to push through line and free any ice blockage. Section 3 Maintenance HQUA PAS20 Aeration Systems are designed for low-maintenance and require minimal scheduled maintenance. Keep the room cool, dry and ventilated for the compressor. • Always unplug system before performing any maintenance or troubleshooting.
  • Page 14 3. GFCI circuit not tripped. GFCI malfunction. 4. Poor connection with the Wiring loosened or was damaged capacitor. during the shipment. Contact HQUA or local dealer for repair/replacements. 5. No capacitor wiring issue can Bad capacitor. be observed. IF THE COMPRESSOR IS WORKING :...
  • Page 15: Section 5 After-Sales Service

    If you need any support, or have questions about the system, please contact our Technical Support team via hqua_qin@163.com and we will be glad to assist you. We sincerely hope that you enjoy the benefits of clean and safe drinking water after the installation of HQUA disinfection system.
