Contents
Section 1 General Information.....................2-6
Section 2 Operation Manual.......................6-13
Electronic Water Descaler
1
HQUA
HQUA 5000E
User Manual
Advertisement
Related Manuals for HQUA 5000E
Summary of Contents for HQUA 5000E
-
Page 1: Table Of Contents
Electronic Water Descaler HQUA 5000E User Manual Contents Section 1 General Information…………..2-6 1.1 What is hard water? 1.2 How does the limescale deposit? 1.3 Traditional water softener 1.4 HQUA 5000E Electronic Descaler 1.5 Why choose new technology? Section 2 Operation Manual…………...6-13... -
Page 2: Section 1 General Information
HQUA Technical Support Team At TX,US Section 1 General Information HQUA 5000E is an electronic water descaler with revolutionary new technology is adopted, against for your hard water problems without the need for salt, chemicals or even the any change in your plumbing system. Before we introduce its function, we must establish some basic scientific concepts. -
Page 3: How Does The Limescale Deposit
Chemicals need to be added periodically to guarantee its function. The continually cost of the maintenance and attention you paid on the replacement are required in this treatment. HQUA 5000E Electronic Descaler HQUA 5000E functions by the complex, frequency modulated electromagnetic... -
Page 4: Why Choose New Technology
HQUA 5000E Descaler. Why choose new technology? Compared to the traditional water softener, HQUA 5000E have so many features present a different performance. Hereby, we summarize these differences in the following table, which can help you better understand the function and effect of... - Page 5 General Information Differences Traditional Water Softener HQUA 5000E Electronic Descaler Water hardness range Depends on the unit. Less than 25 gpg / 425ppm. Yes, bring it back to the No, but the problem (caused by Change of water hardness normal level.
-
Page 6: Section 2 Operation Manual
Operation Manual As you may find out, HQUA 5000E is very competitive in many different aspects as an innovative, eco-friendly programmed device. This technology adopted by HUQA 5000E might be hard to understand its working principle, but still you will observe the changes that happened in your water system. - Page 7 Operation Manual Figure 1 Different Installation Position Notices: Make sure at least five feet from any TV, radio or any other information transmission appliances to minimize the possible interference. And if you would like to install this device outdoor, please make sure you have a waterproof space without direct sunlight.
- Page 8 70/80 feet. Bigger house require more HQUA 5000E Descalers. The diameter of the main water pipe should not exceed 1.5 inch. HQUA 5000E couldn’t handle a larger pipe. HQUA 5000E could fit for any type of water pipe: copper, iron, stainless steel, plastic.

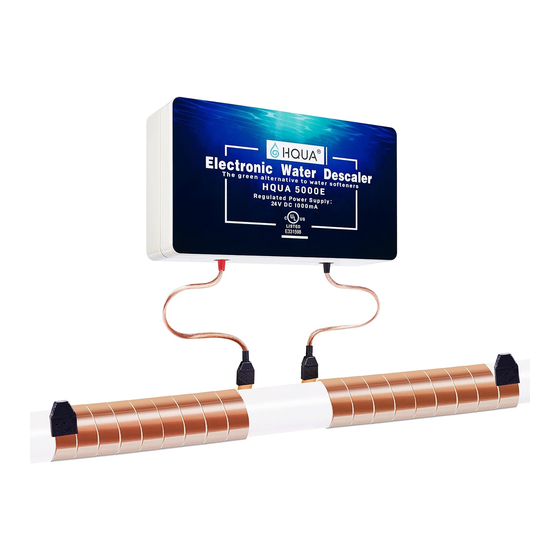

- Page 9 Operation Manual Figure 2 Package List 1. The main unit of the HQUA 5000E. 2. Two output cable band to emit the electromagnetic wave with 40 inch/ 1 meter. 3. Some cable ties for installation. 4. UL listed power supply with 60 inch/ 1-1/2” meter cord.
- Page 10 6. Instruction Manual book that what you reading right now. Installation It is very convenient to install HQUA 5000E with your pipe system compared to the previous water softening technology with no plumbing job needed. Make sure you got everything you need according to our package list before you start it. You are welcome to e-mail us if you have any question with installing this unit.
- Page 11 Operation Manual Figure 4 Wrap the cable on the pipe We suggest you ‘lock’ the connection terminal part on the pipe to start it. And wrap the antenna helically to form a certain coil on the pipe. Make sure there is a gap (around 0.2 inch-5mm) between adjacent cord.
- Page 12 Figure 6 Fix HQUA 5000E with the pipe system Wall installation is easier : take out the self-adhesive pads without a retaining...
- Page 13 Two lights of the below represent the output’s working condition. Section 3 Observation Timetable HQUA 5000E works differently from the traditional water softener, and the water hardness will not show any change. Some phenomenon will happened in the water system help to judge the working condition.
- Page 14 After 1 month: With the help from HQUA 5000E to the water heating system, it should take lesser time for heating the water. And the power consumption will reduce for that. The amount of scale on pipes, faucets and showerheads should be significantly...
- Page 15 Please refer to Section 2.1 to get more information. : Does the pipe type matter? : The HQUA 5000E could fit for all types of plumbing, including copper, iron, stainless steel, plastic and galvanized. : Will the limescale that is cleaned out block the pipes? : No, the scale is slowly dissolved back into a solution and the calcium and magnesium is washed away in the water as a fine powder.
- Page 16 FAQs - Operation : Does the direction of winding matter? : No, it will not influence the output of HQUA 5000E. The reason why we suggest you wrap the cable like Figure 4 or Figure 5 just for easier wiring.
- Page 17 : How long does the effect last? : The mono-crystals that formed by HQUA 5000E have a better in warm water, life time is up to seven days and shorter in cold water (approx. two days).
- Page 18 One-Year Satisfaction Guarantee HQUA 5000E want you to be completely satisfied with the operation of your unit. Accordingly, if our unit which had been purchased from an HQUA authorized seller fails to meet the needs or expectations of the original customer within the first 12 months after purchasing.
