Summary of Contents for Robomow RX
- Page 1 • • • • • •...
- Page 18 Make sure to keep at least 1.5 meters / 5 feet of a Put the last peg very close to the first one straight wire at the very end...

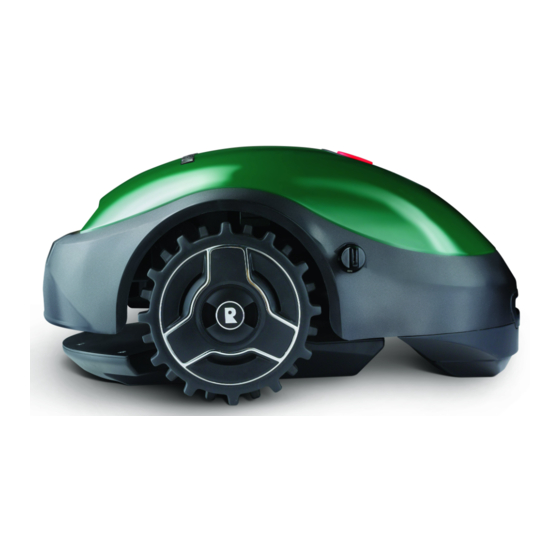

- Page 25 Carrying handle & Product Serial Number Front drive wheel Floating deck...
- Page 26 Operating panel Mowing Height Knob Disabling device Safety decals Rear glider...
- Page 27 Floating mowing deck Mowing blade Rugged drive wheels Lift sensor...
- Page 28 STOP / Home button Lock indication Battery indication ON-OFF indication GO button / ON-OFF switch...
- Page 29 Base Station head Charging pins Base Station Indication Rear slot and opening for head’s removal...
- Page 32 To power Robomow up, press and hold the GO button for 2 seconds. ON/OFF indication will light up. To power Robomow down, press and hold the GO button for 2 seconds.
- Page 33 Charging Fully Charged Running …...
- Page 35 Warming up… In Operation Running …...
- Page 36 Nearly-Empty Battery Empty Battery In Operation Running …...
- Page 37 Press STOP / button to stop current operation. Press the STOP / button again to send Robomow home...
- Page 38 Searching Base… Running …...
- Page 39 To enable/disable child protection, press and hold the GO + STOP buttons together for 6 seconds. When child protection is enabled, Robomow will require a special combination to start a mowing operation or to go back to its base.
- Page 40 Child-Lock ON Child-Lock OFF Running …...
- Page 41 30 seconds. The Lock indication will be temporarily switched off. Press GO to start mowing operation or STOP to send Robomow home. As soon as the mowing operation is started, the child protection will automatically relock itself.
- Page 42 Lawn size Recommended weekly mowing times Up to 50 m 2 hours | 1h x 2 times 50 - 100 m 4 hours | 1h x 4 times 100 - 150 m 6 hours | 1.5h x 4 times 150 – 250 m 9 hours | 1.5h x 6 times * 250 –...
- Page 43 Mower is in base. Wire signal OK. Mower is in operation. Wire signal OK. Blinking fast: wire is cut. Blinking slow: long wire / poor connection. Power supply fault. Signal generator fault.
- Page 49 Locks mower’s panel No switching off allowed (only reset) Alarm will sound if: ⁻ Mower is lifted ⁻ Mower is tilted ⁻ Mower is pulled out of the base ⁻ Cover is opened ⁻ Disabling Device is removed...
- Page 50 Anti-Theft ON Running …...
- Page 51 To unlock mower’s panel for Once activated, the alarm will sound for 5 minutes. operation - connect with a registered device. To deactivate the alarm just The up will automatically unlock connect with a registered the mower for 30 minutes. device and press OK.
- Page 52 Up to 2 Starting Points can be added STOP Mower needs to be in the base to start learning...
- Page 53 All mowers are set to Type A by default Signal type can be change to avoid interference Mower needs to be in the base to change signal type...
- Page 54 This is what RX12u users will see in the app...
- Page 57 The Disabling Device will prevent anyone from operating Robomow when it is removed. If the Disabling Device is pulled out, the current operation will be immediately halted If theft protection is enabled, it will remain active even though the Disabling Device is removed.
- Page 58 GO/STOP when DD Removing DD Idle is removed Running …...
- Page 60 Power Robomow Remove the off by pressing Disabling Device GO button for 2 seconds. Use the provided Allen tool to unscrew the Put on heavy-duty gloves, screws while and place RoboTool over holding the blade the blade so that it covers with the RoboTool.
- Page 62 Charge Robomow fully in its base Switch it off by pressing the GO button for 2 seconds Store in dry indoor conditions at ambient temperatures above 0˚C. No winter storage is required for a Base Station. It can be left on the lawn during the winter period.
