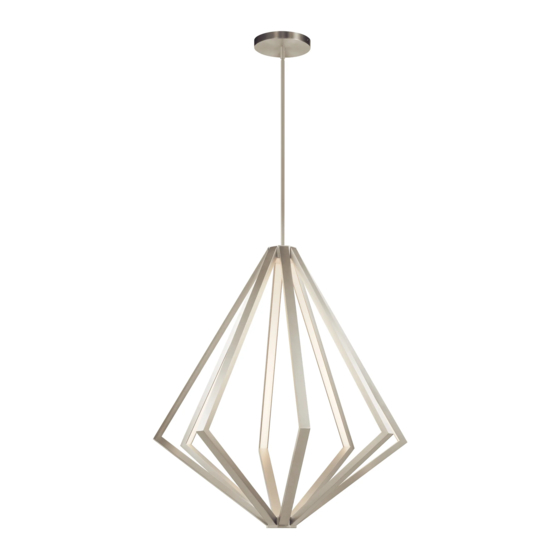

LED CHANDELIER
MODEL #84089
Français p. 9
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-855-226-7169, 8 a.m. - 4 p.m., EST, Monday - Friday.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 84089 and is the answer not in the manual?

Questions and answers

Summary of Contents for Elan 84089

  • Page 1 LED CHANDELIER MODEL #84089 Français p. 9 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-855-226-7169, 8 a.m. - 4 p.m., EST, Monday - Friday.
  • Page 2: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QTY. PART DESCRIPTION QTY. Canopy 6” Threaded Pipe Mounting Bracket 12” Threaded Pipe LED Assembly Coupling Swivel Connector...
  • Page 3: Hardware Contents

    HARDWARE CONTENTS Wire Canopy Connector Short Screw Qty: 3 Machine Qty: 2 Screw Thread Locking Compound Qty: 2 Qty: 1 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING • IMPORTANT: NEVER attempt any work without shutting off the electricity.
  • Page 4 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated assembly time: 30 minutes to 1 hour Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers, electrical tape, ladder, safety glasses.
  • Page 5 ASSEMBLY INSTRUCTIONS 3. Orient the mounting bracket (B) so that the arms Outlet Box are facing away from the outlet box (not included). Connect the mounting bracket (B) to the outlet box with short machine screws (BB). Hardware Used Short Machine Screw OUTLET BOX GROUND WIRE BARE COPPER OR GREEN...
  • Page 6: Care And Maintenance

    ASSEMBLY INSTRUCTIONS 7. Pass canopy (A) over the arms protruding from mounting bracket (B) then secure in place with canopy screws (CC). Hardware Used Canopy Screw CARE AND MAINTENANCE • Always be certain that electric current is turned off before cleaning this item. •...
  • Page 7: Warranty

    IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE OR INFRINGEMENT. ORIGINAL PURCHASER SHALL IN NO EVENT BE ENTITLED TO, AND ELAN LIGHTING SHALL NOT BE LIABLE FOR, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, INCLUDING, BUT NOT LIMITED TO LOSS OF PROFIT, PROMOTIONAL AND/OR MANUFACTURING EXPENSES, OVERHEAD, INJURY TO REPUTATION AND/OR LOSS OF CUSTOMERS.
  • Page 8: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-855-226-7169, 8 a.m. - 4 p.m., EST, Monday - Friday. PART DESCRIPTION PART # 6” Threaded Pipe PIPEX06-SN 12” Threaded Pipe PIPEX12-SN Wire Connector WC001 Short Machine Screw SCR832X050 Canopy Screw CS84088...
  • Page 9 LUSTRE À DEL MODÈLE #84089 JOIGNEZ VOTRE REÇU ICI Numéro de série Date d’achat Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article au détaillant, appelez notre service à la clientèle au 1 855 226-7169, entre 8 h et 16 h (HNE),...
  • Page 10: Contenu De L'emballage

    CONTENU DE L’EMBALLAGE PIÈCE DESCRIPTION QTÉ PIÈCE DESCRIPTION QTÉ Pavillon Tube fileté de 15,2 cm Support de fixation Tube fileté de 30,5 cm Accouplement Ensemble DEL Raccord pivotant...
  • Page 11: Quincaillerie Incluse

    QUINCAILLERIE INCLUSE Adhésif frein-filet Capuchon Canopy Short connexion Screw Qté : 3 Machine Qté : 2 Screw Adhésif frein-filet Qté : 2 Qté : 1 CONSIGNES DE SÉCURITÉ Veuillez vous assurer de lire et de comprendre l’intégralité du présent guide avant d’assembler, d’utiliser ou d’installer ce produit.
  • Page 12: Instructions Pour L'assemblage

    PRÉPARATION Avant de commencer l’assemblage du produit, assurez-vous que toutes les pièces sont présentes. Comparez les pièces avec la liste du contenu de l’emballage et la liste de la quincaillerie. En cas de pièces manquantes ou endommagées, ne tentez pas d’assembler le produit. Temps d’assemblage approximatif : de 30 à...
  • Page 13 INSTRUCTIONS POUR L'ASSEMBLAGE 3. Orientez le support de fixation (B) de sorte que Boîte de sortie les bras soient dirigés à l'opposé de la boîte de sortie (non fournie). Fixez le support de fixation (B) à la boîte de sortie à l'aide des vis à métaux Quincaillerie utilisée Vis à...
  • Page 14: Entretien

    INSTRUCTIONS POUR L'ASSEMBLAGE 5. Placez le pavillon (A) sur les bras sortant du support de fixation (B) et fixez-le à l'aide des rondelles (DD) et vis du pavillon (CC). Quincaillerie utilisée Vis du pavillon ENTRETIEN • Vérifiez toujours que le courant est coupé avant de nettoyer le luminaire. •...
  • Page 15: Garantie

    GARANTIE élan Lighting garantit que ses produits seront libres de tout vice de fabrication ou défaut matériel pendant trois (3) an à compter de la date d'achat par l'acheteur initial. Rails à DEL, lanternes à DEL. Les appliques à DEL, les suspensions à DEL et les lustres à DEL utilisés dans une résidence familiale unique sont garantis pendant trois (3) an en ce qui concerne le moteur lumière et tous les autres composants électriques.
  • Page 16: Liste Des Pièces De Rechange

    LISTE DES PIÈCES DE RECHANGE Pour obtenir des pièces de rechange, appelez notre service à la clientèle au 1 855 226-7169, entre 8 h et 16 h (HNE), du lundi au vendredi. PIÈCE DESCRIPTION Nº DE PIÈCE Tube fileté de 15,2 cm PIPEX06-MBK Tube fileté...
