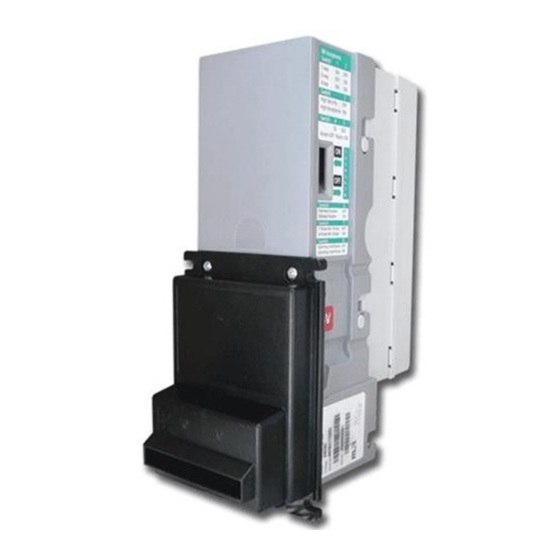

MEI CASHFLOW
2612
NOTE VALIDATOR
ENGINEERS HANDBOOK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CASHFLOW 2612 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MEI CASHFLOW 2612

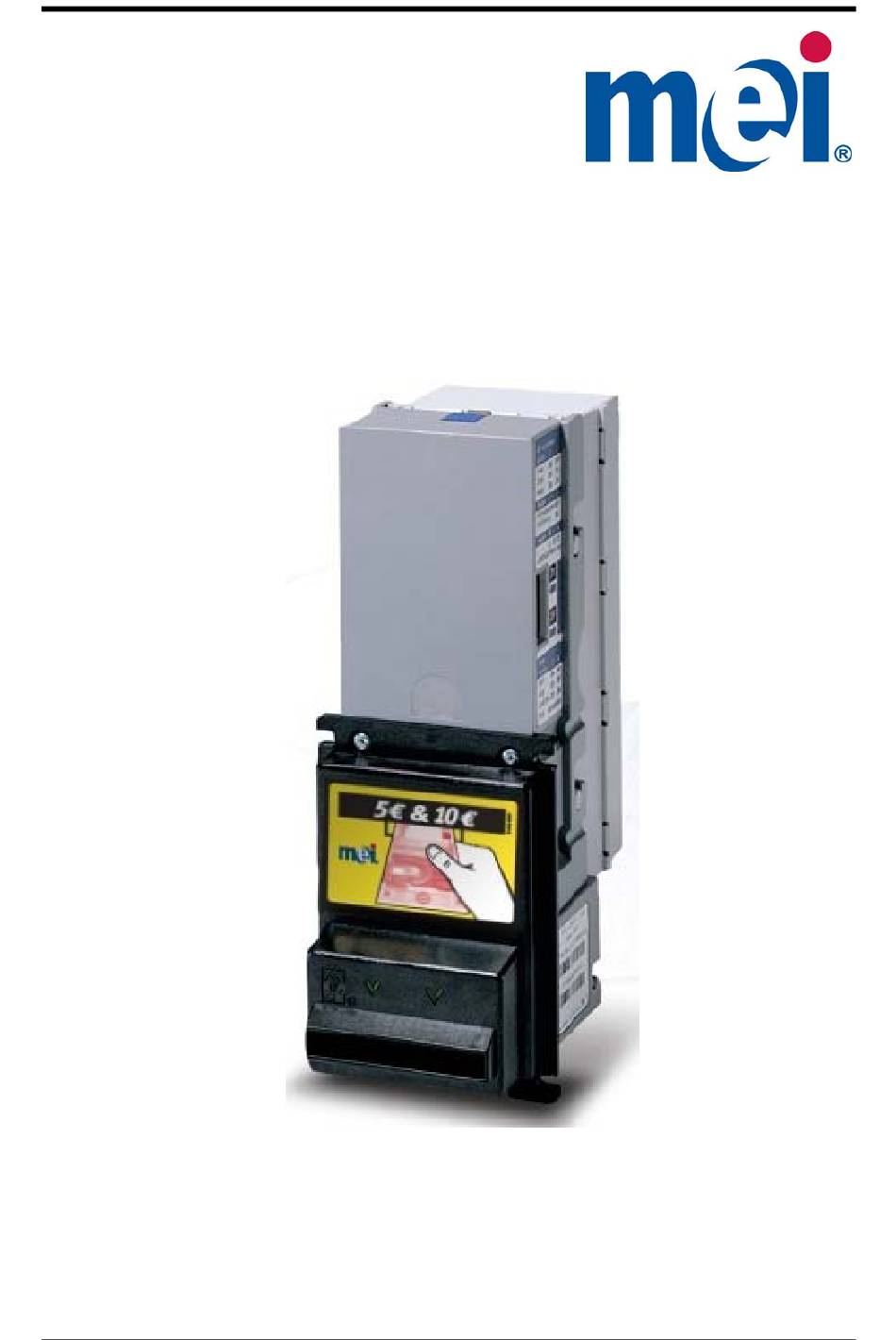

  • Page 1 © MEI CASHFLOW 2612 NOTE VALIDATOR ENGINEERS HANDBOOK...
  • Page 2 MEI UK International Ltd©, MEI and the MEI device are registered trademarks. MEI reserves the right to change the product or the product specifications at any time. While every effort has been made to ensure that the information in this publication is accurate, MEI disclaims any liability for any direct or indirect losses (howsoever caused) arising out of use or reliance on this information.
  • Page 3: Declaration Of Conformity

    2612 Note Acceptors take currency at high acceptance rates and provide a superior level of resistance against specific cheats and frauds. To obtain the best performance from your MEI Note Acceptor, read this manual and the Installation Guide before installing and using the note acceptor Product Summary ©...
  • Page 4: Table Of Contents

    ............................. 30 XPLODED IEWS   Chassis assembly ............................... 31   LED Housing Assembly ............................32   Sensor assembly ................................ 33   Stacker/drive assembly .............................. 34   Magazine Assembly ..............................35   Gearbox Assembly ..............................36 © MEI 2009 Page 4...
  • Page 5: General Information

    2612 Note Acceptors take currency at high acceptance rates and provide a superior level of resistance against specific cheats and frauds. To obtain the best performance from your MEI Note Acceptor, read this manual and the Installation Guide before installing and using the note acceptor.
  • Page 6: Model Number Explanation

    © Cashflow 2612 Engineers Handbook Model Number Explanation Example: © MEI 2009 Page 6...
  • Page 7: Serial Number Explanation

    2000. i.e. 0988 = manufactured in Week 9 2008 0999 = manufactured in Week 9 2009 0908 = manufactured in Week 9 2000 0909 = manufactured in Week 9 2010 © MEI 2009 Page 7...
  • Page 8: Bezels

    Bezel Kits are available to convert from one bezel style to another. Part numbers for the bezel conversion kits are as follows: Compact Bezel Kit Armored Bezel Kit Anti-Vandal Bezel Kit Part Nos: Part No: Part No: 250063179 – Euro 250065178 – Euro 250063174 250066181 – Saudi 250068180 – Russia © MEI 2009 Page 8...
  • Page 9: Magazines

    25006 6186 25006 9017 250064187 700 Magazine (U7) 25006 8021 250062188 1000 Magazine (U10) 250060189 Locking Hasp A locking hasp kit is available that secures the side doors on the 500, 700 and 1000 note magazines. © MEI 2009 Page 9...
  • Page 10: Cables

    MDB MASTER RECEIVE P3-4 BLACK P2-4 P1-14 P2-5 MDB MASTER TRANSMIT P3-5 P2-5 P1-28 GREEN P2-6 MDB COMMON GND P3-6 GREEN P2-6 P1-5 P1-2 DUMMY TERMINALS IN THESE CAVITIES P1-17 TO ENHANCE CONNECTOR RETENTION P1-15 P1-30 © MEI 2009 Page 10...
  • Page 11 P2-8 24v AC LIVE P1-7 GREEN P3-8 CREDIT 1 P1-10 BROWN P3-1 GROUND P1-20 GREY P2-7 24V AC NEUTRAL P1-24 ORANGE D1-1 INHIBIT 12V D1-2 ORANGE P2-6 P1-25 PURPLE P3-9 CREDIT 2 P1-5 P1-21 P3-7 © MEI 2009 Page 11...
  • Page 12 P1-7 GREEN P2-5 CREDIT 1 P1-9 GREY P2-8 BUSY P1-16 BROWN P2-10 24v DC RETURN P1-23 P2-9 24v DC P1-24 ORANGE P2-3 ACCEPT ENABLE P1-25 PURPLE P2-6 CREDIT 2 P1-5 P1-21 P3-1 YELLOW P3-2 LINK © MEI 2009 Page 12...
  • Page 13: Installation

    Disconnect all power to the machine. Connect the interface harnesses from the machine to the unit. Wrap the tie-wrap around the interface harness. Secure the unit to the mounting studs with the appropriate hardware. (OEM Machine with fixing studs) © MEI 2009 Page 13...
  • Page 14: Fixing Bracket

    © Cashflow 2612 Engineers Handbook (OEM Machine requiring bracket) Fixing Bracket Part Number 250067030 Kit Contains: • Mounting Bracket • 6 x NUT, HEX #8-32, LOCKING © MEI 2009 Page 14...
  • Page 15: Dimensions

    © Cashflow 2612 Engineers Handbook Dimensions © MEI 2009 Page 15...
  • Page 16: Changer Configuration

    Refer to these numbers when you contact an MEI Approved Service Center for service or information. The manufacturer’s warranty is based upon the date of manufacture. Parts and labour are included in Warranty repairs.
  • Page 17: Configuration

    2612 is reprogrammed using a coupon with a different configuration, the new configuration will be the default. f any option switch is turned ON, the option switch settings will override the coupon setting. The coupon configuration will remain in memory. © MEI 2009 Page 17...
  • Page 18: Switch Settings

    2612 allows configuration of interface options through option switch selection. The option switches are located on the right-hand side of the note acceptor. The following pages described how the option switches work for specific country variants. Option Swiches © MEI 2009 Page 18...
  • Page 19: Cashflow © 2612 Switch Settings

    If you are connecting the unit to a Serial or MDB interface, turn switches 7 and 8 OFF before connecting the harness. Once power is applied, the unit will recognize the Serial or MDB interface and will ignore switches 7 and 8. © MEI 2009 Page 19...
  • Page 20 If you are connecting the unit to a Serial or MDB interface, turn switches 7 and 8 OFF before connecting the harness. Once power is applied, the unit will recognize the Serial or MDB interface and will ignore switches 7 and 8. © MEI 2009 Page 20...
  • Page 21 If you are connecting the unit to a Serial or MDB interface, turn switches 7 and 8 OFF before connecting the harness. Once power is applied, the unit will recognize the Serial or MDB interface and will ignore switches 7 and 8. © MEI 2009 Page 21...
  • Page 22 If you are connecting the unit to a Serial or MDB interface, turn switches 7 and 8 OFF before connecting the harness. Once power is applied, the unit will recognize the Serial or MDB interface and will ignore switches 7 and 8. © MEI 2009 Page 22...
  • Page 23: Coupon Configuration

    • Fill in the entire block • Do not mark the coupon outside the blocks or on the back of the coupon • Fill in ONE block for EVERY line ( Note: – Coupon not to scale ) © MEI 2009 Page 23...
  • Page 24 Select ON or Flashing for the bezel lights Section 5: (downward arrows). This section applies only to the Compact bezel style. Select Bezel Lights Flashing if the unit has a VFM Retrofit or a Flush Mount bezel style. © MEI 2009 Page 24...
  • Page 25 LED will flash five times. Section numbers are located to the far right of each section on the coupon. If the configuration is rejected, check the coupon and repeat the process. © MEI 2009 Page 25...
  • Page 26: Operation

    © Cashflow 2612 Engineers Handbook OPERATION Functional Overview The acceptance of a note in a MEI Note Acceptor proceeds through the following steps: • Note Detection • Note Transport • Note Recognition • Note Validation • Credit or Return • Note Storage As a Note is inserted, the acceptor senses its presence and the drive motor is energized.
  • Page 27: Interfaces

    All coin tubes are monitored for the presence of change in order to determine if an exact change condition exists. If an exact change condition exists, the exact change light will be turned ON after a note has been inserted. © MEI 2009 Page 27...
  • Page 28: Maintenance

    Remove the LED Housing by holding the metal bar and pulling back on the LED Housing. Clean the note path with a soft cloth. You may use mild, non-abrasive, non-petroleum based cleaners if sprayed on the cloth. © MEI 2009 Page 28...
  • Page 29: Status Led

    (the unit will not accept Reinstall the magazine. 5 Flashes without the magazine attached). Continuou Unit is defective. Replace the unit. Slow Continuou The magazine is full of Remove the money from the magazine. money. Fast © MEI 2009 Page 29...
  • Page 30: Exploded Views

    © Cashflow 2612 Engineers Handbook Exploded Views © Cashflow 2612 Part Description Chassis Assembly LED Housing Assembly Sensor Assembly Stacker/Drive Assembly Magazine Assembly Gearbox Assembly © MEI 2009 Page 30...
  • Page 31: Chassis Assembly

    PK1ASSY S2K 24V AE2800 CTL BD 250061193 Dip Switch Label - English 250051322P Dip Switch Label - Spanish 250053343P Dip Switch Label - Italian 250055342P Dip Switch Label - German 250057341P Dip Switch Label - French 250059340P © MEI 2009 Page 31...
  • Page 32: Led Housing Assembly

    250015020P Pinch Roller 250029011P Loom Control PCA – LED PCA 250073003P Cover, LED Housing 250023031P Lens, LED – Euro 250028204P Lens, LED – Russia/Saudi 250029033P LED Housing – Russia/Saudi 250023195P TRI-LED Board - Russia 250062063 © MEI 2009 Page 32...
  • Page 33: Sensor Assembly

    Qty per Qty per Part Description Part Number Assembly Pack Gasket, Sensor Housing 250065156P Sensor Board – Euro/Saudi 250063191 Sensor Board – Russia 250060047 Loom, Control PCA to Sensor PCA 250078053P Sensor Housing (Complete) 250027056P © MEI 2009 Page 33...
  • Page 34: Stacker/Drive Assembly

    Assembly Pack Stacker/Drive Assembly Euro 250010195P Stacker/Drive Assembly Russia/Saudi 250016011P Tensioner Assembly 250064067 Spring, Tensioner 250045016P Pulley, Wheel 250021010P Timing Belt 143T 250028162P Pulley, Compound 250026009P Shaft, Pulley 250033002P Timing Belt 56T 250023014P Tire(ORC) 250025013P © MEI 2009 Page 34...
  • Page 35: Magazine Assembly

    Qty per Part Description Part Number Assembly Pack Magazine Prism 250027176P Magazine Label - German 250050331P Magazine Label - Spanish 250052330P Magazine Label - French 250057329P Magazine Label - Italian 250058332P Magazine Label - English 250059328P © MEI 2009 Page 35...
  • Page 36: Gearbox Assembly

    250020002P Compound Gear 38/48DP 250028003P Worm 32DPN/13T 250026004P Thrust Washer 250032011P Shaft Gear 250035001P Cover, Gearbox 250028020P Push Ring 250029016P Pusher Plate (Russia/Saudi) 250020024P Friction Pusher Plate (Euro) 250028221P Tach Disk 250020080P Helping you deliver © MEI 2009 Page 36...
  • Page 37 © Cashflow 2612 Engineers Handbook YOUR REPRESENTATIVE © MEI 2009 Page 37...
