- Page 1 MEI CASHFLOW SC / SC Advance ® ® Operation & Maintenance Manual...
-
Page 2: Table Of Contents
Portable Programing Module (PPM) ...... 6-8 ® Replacing the PROM..................9-11 MAINTENANCE Cleaning the Acceptor Module .................12 Calibration ......................12 TROUBLESHOOTING Diagnostic Codes ....................13 Universal Diagnostic BEG Codes ..............13 MMI Diagnostic LED Codes ................ 13-14 MEI CASHFLOW SC / SC Advance Page-2... -
Page 3: Overview Model Number
Tri-Port Harness: RS-232 and SPC USB additional model numbers). Deep Cashbox Tri-Port Harness: RS-232 and GDS USB Example: SCNXL6627B Description SC Advanced 2000 Note Cashbox 66mm Bill Path Retail RS-232 Communication With BNF MEI CASHFLOW SC / SC Advance Page-3... -
Page 4: Serial Number
OVERVIEW Serial Number: 1.02 Serial Number Codification Example Serial Number: 27480369806 Description Week Manufactured (0-52) Year manufactured(Last Digit of Year) Manufacture Location Configuration Code 69806 Sequential Production Number MEI CASHFLOW SC / SC Advance Page-4... -
Page 5: Main Components Of Cashflow Sc ® And Sc Advance

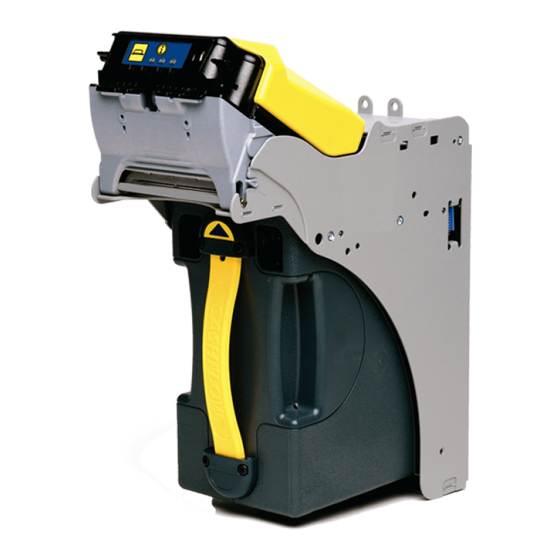

® ® The note acceptor consists of three main components: Cashbox/LRC Acceptor Module Chassis The acceptor module and cashbox are interchangeable with other identical CASHFLOW SC ® SC Advance models. ® Bill Entry Guides for CASHFLOW SC and SC Advance ®... -
Page 6: Updating Software
** Note: Installing a PROM (chip) fully disables the note acceptor from downloading software files with the PPM, and any future software changes can only be made by installing a new PROM (chip change). MEI CASHFLOW SC / SC Advance Page-6... - Page 7 At this point, the USB cable may be disconnected from the note acceptor. 5. Following a successful download, the diagnostic LEDs on the note acceptor will flash green until communication between the note acceptor and the machine is re-established. MEI CASHFLOW SC / SC Advance Page-7...
- Page 8 UPDATING SOFTWARE Using the PPM (Continued): CASHFLOW STS support tool: ® The CASHFLOW STS (support and test systems) software program supports CASHFLOW SC ® ® and SC Advance note acceptors and CASHFLOW Portable Programming Module (PPM) with a ® ®...
-
Page 9: Replacing The Prom
Lift the corners out and then back toward you. The cover will be released once it has cleared the back ramps, as shown in the diagram below: Once the yellow cover is released in the front, slide it back and remove it. MEI CASHFLOW SC / SC Advance Page-9... - Page 10 6. To reinstall the yellow cover, the acceptor module must remain open. Position the back of the cover as shown below: 7. Once the yellow cover is in the correct position, move it forward (as though you were opening the acceptor module) until the cover locks into place. MEI CASHFLOW SC / SC Advance Page-10...
- Page 11 Replacing the Programmed PROM (Continued): 8. Close the acceptor module and reinstall it into the chassis. 9. If the power is on, the note acceptor will power up and then perform a run and stack. MEI CASHFLOW SC / SC Advance Page-11...
-
Page 12: Maintenance
Never use a petroleum-based product to clean this device! Petroleum based products will damage the note path. Mild non-abrasive soap is preferred over alcohol. Calibration: CASHFLOW SC and SC Advance were designed not to require calibration. ® ® MEI CASHFLOW SC / SC Advance Page-12... -
Page 13: Troubleshooting
If not found, replace Antenna PCB. Red(Right) - Solid Green(Left) - Flash Checking tag status Wait 5 seconds to determine if Antenna PCB is Yellow(Center) - Flash found. If not found, replace Antenna PCB. Red(Right) - Flash MEI CASHFLOW SC / SC Advance Page-13... - Page 14 TROUBLESHOOTING MMI Diagnostic LED Codes (Continued): SC Advance and CASHFLOW SC Diagnostic Codes (MMI LED) LED Indicator Status You need to... Green(Left) - Solid Normal Take no action. Yellow(Center) - Off Red(Right) - Off Green(Left) - 1 Flash Disabled by machine interface Fix the machine interface (i.e.
