Summary of Contents for TRENDnet TVP-SP1BK

  • Page 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    Table Contents Introduction......................4 Getting to know the Telephone Kit ................. 4 Packing Contents........................4 Identifying Components ......................4 Getting Started......................6 Minimum System Requirements ....................6 Setting up the telephone kit ....................... 6 Software / Driver Installation ...................... 6 Appliactions Installed .........................

  • Page 4: Introduction

    Introduction Welcome to the VoIP Bluetooth Phone Kit manual. In this manual, you will learn how to use this Phone Kit to do all popular Skype standard functions, such as Contacts, History, SkypeOut, SkypeIn, Conference Call etc. This Phone kit enables you to make and receive Skype calls anywhere, without being in front of the PC. With a long life rechargeable Lithium battery, this Phone kit can sustain up to 6 hours talking time, so you don’t need to speak in rush every time.

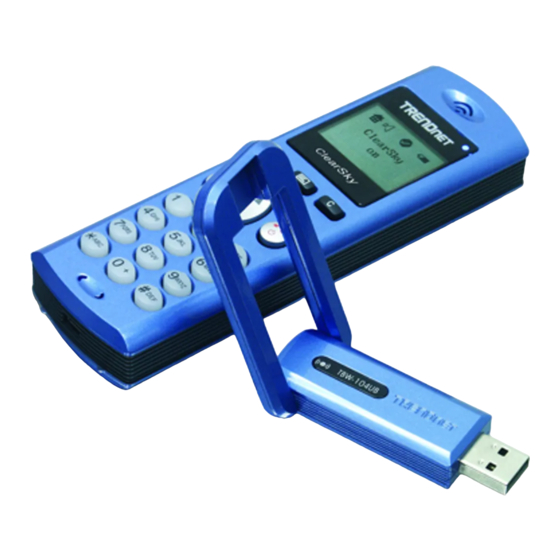

  • Page 5 TVP-SP1B Front View Speaker LCD Display Viewing Area: 30x32 mm, Active Area: 24x14 mm Sync Skype Contacts Clear / Delete / Back Menu Make a call • Answer a call • Redial • Power ON/OFF • End a call • Back to Main page •...

  • Page 6: Getting Started

    Getting Started Minimum System Requirements PC running Windows XP, 2000 Skype software installed At least 400 MHz processor At least 128 MB RAM At least 50MB free disk space on your hard drive CD-ROM drive Setting up the telephone kit 1.
  • Page 7 5. Please click Install. 6. Please click Finish. 7. Please click Yes to 8. Please select begin Bluetooth Language from adapter the drop down installation. menu and then click OK. 10. Please select I accept the terms in the license 9.

  • Page 8: Appliactions Installed

    Skype and then click OK. Appliactions Installed After you finish above installations, “Bluetooth” and “TRENDnet TVP-SP1B” items will be added to Windows Start Menu Programs group. Bluetooth The Bluetooth icon in windows system tray will indicate Bluetooth status by changing appearance.
  • Page 9 You can send a file wirelessly to another device by right-clicking on the intended file and using the “Sending to Bluetooth Device” menu that appears. TRENDnet TVP-SP1B Phone Utility Phone Utility icon ( ) in system tray can display phone utility version and has some options by right-clicking...
  • Page 10 1. BT Phone Setting Utility: This utility help you pair Clearsky Bluetooth Phone with USB bluetooth adapter. 2. TVP-SP1B Utility: This is the main program which enables you doing skype functions from this Bluetooth phone. 3. Uninstall: Remove the TVP-SP1B phone utility from your computer.

  • Page 11: Exploring The Telephone Kit Display

    Exploring the Telephone Kit Display Handset Display Icons Operation Battery Status Key Lock Volume level Skype status Ringtone off Icons Description Operation Indicate which operation your phone is doing. Main page Sync Skype contact lists Configuration Menu Incoming or Outgoing calls connected Incoming call ringing Key Lock Indicate keypad is locked...

  • Page 12: Main Page

    Main page Press to go to main page. 4 possible displays on main page: 1.Show ‘ClearSky sync’ 2.Show ‘ClearSky’ when Bluetooth connection when Bluetooth connection is not ready is ready 3.Show ‘# Missed Calls” 4. Show ‘Skype Unavailable’ when you have missed when calls (Skype new events).

  • Page 13: Configuration Menu

    Configuration Menu Press to enter configuration menu Menu Submenus Descriptions Missed Display Missed call lists History Incoming Display Incoming call lists Outgoing Display Outgoing call lists Change my status. Status options: “Skypeme”, “Online”, “Away”, “Not Status Available”, “Do Not Disturb”, “Invisible”, “Offline” Pairing Let Bluetooth Phone enter Pairing Mode Skype Credit...

  • Page 14: Guide To Basic Functions

    Guide to Basic Functions Call skype contact 1. Press 3 sec. Wait until phone shows “ClearSky sync” press to sync contact lists with PC skype 2. Use List button to scroll up/down the contact lists 3. Press to start a call. 4.

  • Page 15: Redial Outgoing Calls

    3. Press to start this conference call Redial outgoing calls 1. Press to show outgoing call lists. 2. Select the contact (from the outgoing call list) you want to dial to make a call. 3. Press to make a call Redial any call from History 1.

  • Page 16: Appendix

    Appendix Toshiba Bluetooth Utility Contents Bluetooth Functions Toshiba Bluetooth stack supports the following Bluetooth functions (profiles) Term Definition Dial-Up Networking Enables you to establish a dial-up Bluetooth wireless technology connection to the Internet or other networks with a wireless modem station, mobile telephone, or similar device. Enables you to establish a Bluetooth wireless technology connection with a wireless modem station, mobile telephone, or similar device to send or receive a fax.
  • Page 17 Generic Audio/Video Distribution Profile GAVDP Basic profile used to support A2DP, AVRCP and other protocols. Head Set Profile Profile used for headsets. Allows you to connect to a PC and communicate as well as connect to a mobile telephone. Personal Area Networking Profile Supports IP base network.
  • Page 18 4. Searching for Bluetooth devices 5. Select the device name from [Device List] and click on the [Next] button. 6. Please Click “Next” 7. Searching remote devices 8. When a service has been detected, a window 9. The icons of the registered devices will appear and prompting you to enter the Bluetooth passkey (PIN the devices will be ready to use.

  • Page 19: Specifications

    Specifications RF Standard Class 1 Bluetooth v2.0 with EDR, backward compatible with Bluetooth v1.1 & v1.2 RF Frequency 2.4~2.4835 GHz, ISM band Spread Spectrum Frequency Hopping and Adaptive Frequency Hopping RF Output Power Up to 17 dBm 96 x 64 pixel, graphical type STN LCD with back light Display Interfaces One mini-USB connector for charging from computer USB port or external power...

  • Page 20: Troubleshooting

    Troubleshooting Problem: Press “Power on” button, but nothing happen, no display Solution: 1. Make sure the included rechargeable battery is fitted in the handset correctly. 2. Please press “Power on” button for about 3 sec. until you see an icons. Problem: Pop up a Bluetooth Security window Solution: 1.
  • Page 21 Problem: Why can I just invite one contact to join my current call? Solution: If you need to hold a conference call with more than 2 contacts, please choose contacts first and then make a conference call. For “join” function, our phone just allow one participant to join current call. Problem: Another ringer during my conversation Solution: This means another incoming call is waiting for your response.
  • Page 22 TRENDware warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of time from the date of purchase. TVP-SP1BK – 2 Years Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDware shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
  • Page 23 OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDWARE’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
