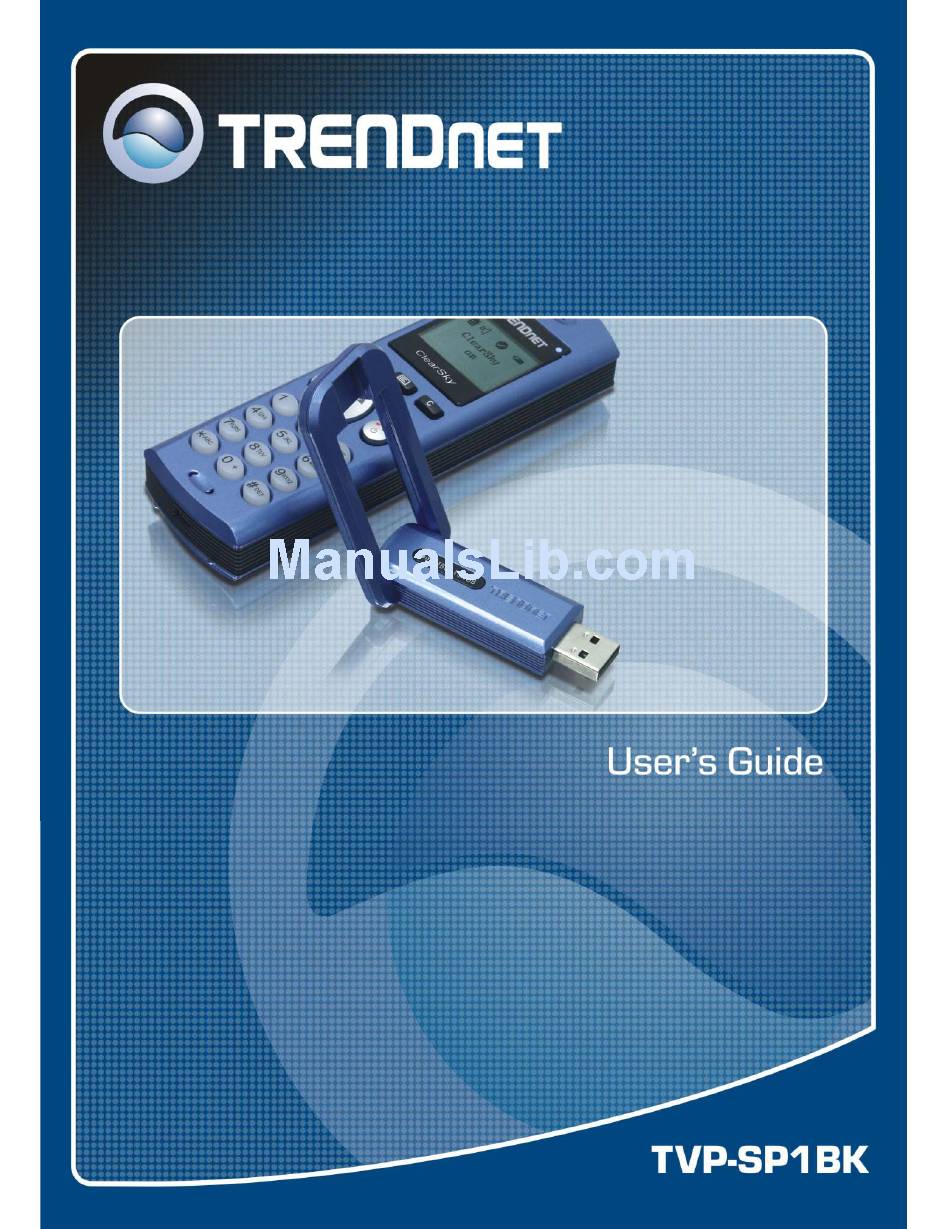

TRENDnet TVP-SP1BK User Manual

TRENDnet TVP-SP1BK User Manual

Voip bluetooth phone kit
Hide thumbs Also See for TVP-SP1BK:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVP-SP1BK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TVP-SP1BK

Summary of Contents for TRENDnet TVP-SP1BK

  • Page 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. reasonable protection against harmful interference in a residential installation. equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    Table Contents Introduction... 4 Getting to know the Telephone Kit... 4 Minimum System Requirements ... 4 Unpacking and Checking the Contents... 4 Identifying Components... 5 Getting Started ... 6 Setting up the telephone kit... 6 Software Installation ... 6 Appliactions Installed... 11 Exploring the Telephone kit Menu ...

  • Page 4: Introduction

    Introduction Welcome to the VoIP Bluetooth Phone Kit manual. In this manual, you will learn how to use this Phone Kit to do all popular Skype standard functions, such as Contacts, History, SkypeOut, SkypeIn, Conference Call etc. This Phone kit enables you to make and receive Skype calls anywhere, without being in front of the PC.

  • Page 5: Identifying Components

    Identifying Components TBW-104UB TVP-SP1B TVP-SP1B Front View...

  • Page 6: Getting Started

    Back View Getting Started Setting up the telephone kit 1. Place the included 700 mAh Li-on battery into the TVP-SP1B’s battery compartment 2. Connect USB cable to charge battery pack (please let the battery charge for a full 6 hours before using the phone for the first time) Software Installation 1.
  • Page 7 1. Click “Install Driver/Utility” to start 3. Please Click “Next”. 5. Please Click “Next”. 2. Click “Next” to continue 4. Please check “Yes, I do.” to launch utility when Windows startup. 6. Installing...
  • Page 8 7. Please Click “Finish” to complete TVP-SP1B installation. 9. Select language for installation 11. Please Click “Next” 8. The installation will continue with Bluetooth adapter installation. Click “Yes” to install Bluetooth driver now. 10. Installing 12. Please check “I accept the terms in the license agreement”...
  • Page 9 13. Please Click “Install” to start installation. 15. Installation will ask you plug Bluetooth Device into USB port, please plug TBW-104UB into USB port then click “OK” to continue 17. Click “Finish” to complete installation. 14. Please choose “I accept” and then click “OK”...
  • Page 10 19. After the Computer is rebooted, Double click on the Bluetooth VoIP Phone icon and Click “Search” 21. Setup Utility is searching for Bluetooth Phones 23. Please click “OK” to finish bluetooth device pairing. 20. Prepare for pairing. Please turn on CleraSky Bluetooth Phone 22.

  • Page 11: Appliactions Installed

    25. Please Click “Yes” to launch Bluetooth Phone Ustility Appliactions Installed After you finish above installations, “Bluetooth” and “TRENDnet TVP-SP1B” items will be added to Windows Start Menu Programs group. Bluetooth The Bluetooth icon in windows system tray will indicate Bluetooth status by changing appearance.
  • Page 12 2. Bluetooth Settings: This program enables you to configure settings when you connect to a Bluetooth wireless technology device for the first time. For details, please refer to Bluetooth->User’s Guide. 3. Remote Cameras When you connect to a Bluetooth wireless technology-compatible digital camera, you ca operate it from the PC side and send captured images to the PC.
  • Page 13 Phone Utility icon ( ) in system tray can display phone utility version and has one “Exit” function by right-clicking to quit this utility. Contents of the “TRENDnet TVP-SP1B” Utility 1. BT Phone Setting Utility: This utility help you pair Clearsky Bluetooth Phone with USB bluetooth adapter.

  • Page 14: Exploring The Telephone Kit Menu

    Exploring the Telephone kit Menu Icons shown on the Handset Icon Meaning Homepage Ringing Configuration Status Call with contacts Volume 0 Online Not Available SkypeMe Invisible Battery Full (The black area reduces as the battery runs low) Charging Online Not Available Skypeme Skype out account Icon...

  • Page 15: Function Keys

    Function Keys: Sync Contacts Cancel, Back Up/Down Configurations Press to enter configuration mode Function in configurations Functions History Missed Display Missed call lists History Incoming Display Incoming call lists History Outgoing Display Outgoing call lists Status Change my status. Status options: “Online”, “Away”, “N/A”, “Not Disturb”, “Invisible”, “Offline”, “Skypeme”...

  • Page 16: Guide To Basic Functions

    Guide to Basic Functions How to call skype contact? 1. Press 3 sec. Wait until phone shows “Clearsky on” press lists with PC skype 2. Use List button to scroll up/down the contact lists 3. Press to start a call. 4.

  • Page 17: How To Redial Outgoing Calls

    4. Choose “P2P CALL” to hold 1 B. invite contacts and conference them together 1. Press to go to the contact list menu. 2. Press “*” to mark the contact you want to include in this conference call. (Conference participants (max 4+host) 3.

  • Page 18: Appendix

    Appendix Toshiba Bluetooth Utility Contents Bluetooth Functions Toshiba Bluetooth stack supports the following Bluetooth functions (profiles) Term Dial-Up Networking Enables you to establish a dial-up Bluetooth the Internet or other networks with a wireless modem station, mobile telephone, or similar device. Enables you to establish a Bluetooth wireless modem station, mobile telephone, or similar device to send or receive a fax.
  • Page 19 Advanced Audio Distribution Profile Allows audio data to be exchanged between wireless headsets and other audio A2DP devices, as well as allowing high-quality music playback. Audio/Video Remote Control Profile A/V remote control functions such as play and stop. The Bluetooth AVRCP remote control operation.
  • Page 20 2. Please Click “New Connection” to add new Bluetooth device. 4. Searching for Bluetooth devices 3. Please choose “Express Mode” 5. Select the device name from [Device List] and click on the [Next] button.
  • Page 21 6. Please Click “Next” 8. When a service has been detected, a window prompting you to enter the Bluetooth passkey (PIN code) may appear. Please enter the passkey and click on the [OK] button. Please refer to your device instruction manual for information on which passkey to use.

  • Page 22: Specifications

    Specifications Class 1 Bluetooth v2.0 with EDR, backward compatible with RF Standard Bluetooth v1.1 & v1.2 2.4~2.4835 GHz, ISM band RF Frequency Frequency Hopping and Adaptive Frequency Hopping Spread Spectrum Up to 17 dBm RF Output Power 96 x 64 pixel, graphical type STN LCD with back light Display Interfaces Handset status (active, standby, sleep, etc.…)

  • Page 23: Troubleshooting

    Troubleshooting Problem: Press “Power on” button, but nothing happen, no display Solution: 1. Make sure the included rechargeable battery is fitted in the handset correctly. 2. Please press “Power on” button for about 3 sec. until you see an icons. Problem: Pop up a Bluetooth Security window Solution: 1.
  • Page 24 Problem: PC music plays in Bluetooth phone Solution: When you finish installation, system default audio device will be set to Bluetooth wave. If you want to change back to PC original default audio device, please go to Settings Control Panel Sounds and Audio Devices Audio to choose default device. Problem: Why can I just invite one contact to join my current call? Solution: If you need to hold a conference call with more than 2 contacts, please choose contacts first and then make a conference call.

  • Page 25: Limited Warranty

    TRENDware warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of time from the date of purchase. TVP-SP1BK – 2 Years Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDware shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
  • Page 26 LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDWARE ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND...
