Lux Products LP1512 User Manual

USER MANUAL
LP1512

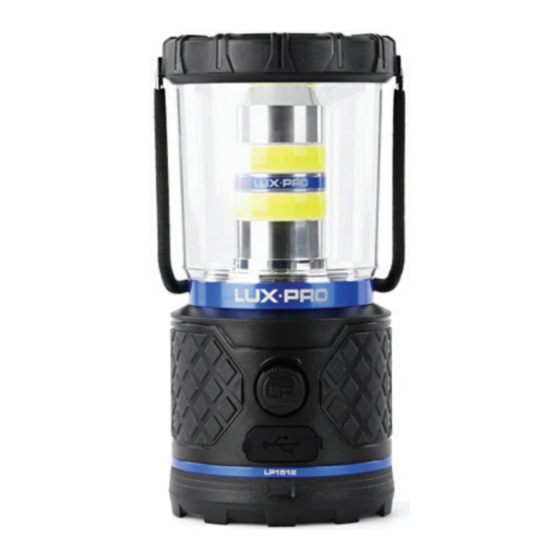

Rechargeable LED Lantern
3
USB
C
Batteries
Rechar geabl e
Not Included
Features
Dual battery design
Rugged-durable rubber design
360° LED technology
Power bank to charge other devices
Variable on/o brightness dial
IPX4 waterproof rating
Rechargeable 2000mAh Li-ion battery (USB cable included)
ANSI/PLATO FL1 STANDARD
MODES LUMENS
10650, 3.7V 2000mAh Rechargeable Battery
High
1000 lm
Low 75 lm
Internal Battery & 3 C Cell Batteries*
High 1175 lm
Low 75 lm
BEAM
RUN TIME DISTANCE
1h 45m 36m
10h 8m
5h 30m 36m
151h 8m
Operation Instructions
On/O : Turn the dial on the front of the lantern clockwise to turn
the light on. Turn the dial counterclockwise completely to turn
the light o . There will be an audible click when turned on or o .
Adjust Brightness: Rotate the dial clockwise to increase the
brightness, and counterclockwise to decrease the brightness.
Charging Instructions
Charging Product:
The LP1512 uses a Li-poly: 3.7V 2000 mAh
rechargeable battery.
To charge the lantern, locate the USB dust
cover below the power dial. Lift the cover to
expose the two charging ports.
Plug the supplied USB cable into the smaller USB port on the left.
Plug the opposite end of the cable into a USB power source.
A red LED light in the charge port will light up to indicate the
lantern is charging. The light is fully charged once the light turns
green.
The lantern will turn on and can be used while charging.
The LP1512 has a charge time of approximately 3 hours.
Charging Other Devices:
The LP1512 can also be used as a power bank to charge other devices.
To use as a power bank, plug the large end of your charging cable into
the larger USB port on the right, and plug the opposite end of the
cable into your electronic device.
While the lantern is on, it will not charge other devices. If the
lantern is turned on while charging a device, it will stop charging
the device until the light is turned o .
luxpro.com
866.553.8886
14725 S Porter Rockwell Blvd Ste C
Bluffdale, UT 84065
