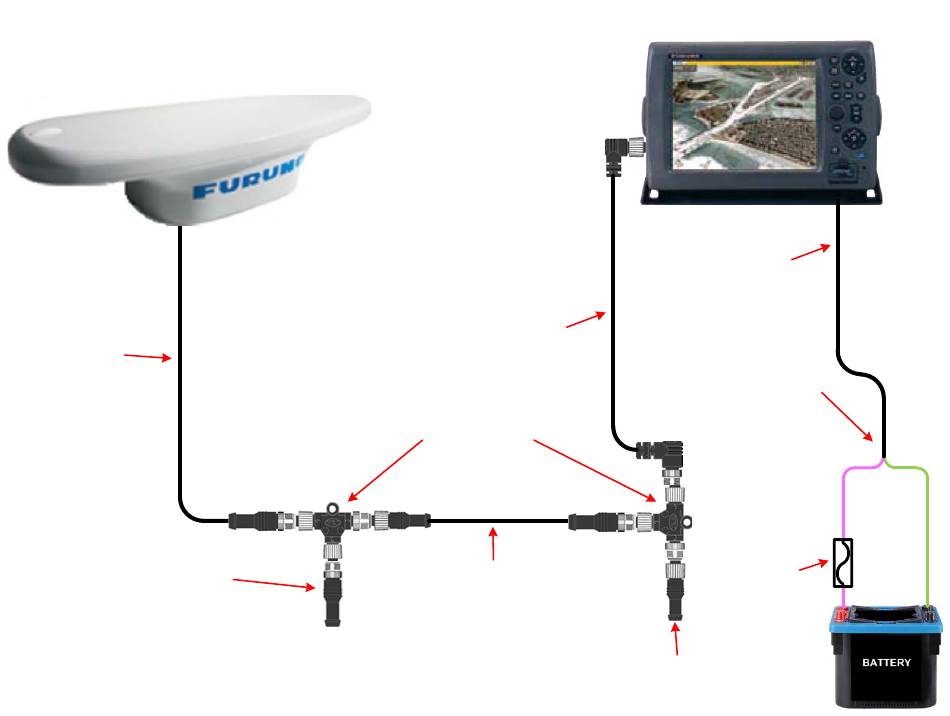

VISIO SC30 Quick Start Manual

N2K: Micro drop cable
6 meter
000-166-887
(supplied)
N2K Terminator
AIR-335-791
SC30 powered through NN3D
(6 meter antenna cable)
No Terminator resistor
in 6 meter cable
Male
N2K: Micro drop cable
.3 meter
000-166-949
N2K "T" Connector
AIR-052-531
Fem/Fem/Male
N2K Micro Double-
ended cable
Male – Female
1 meter = 000-167-962
2 meter = 000-167-963
6 meter = 000-167-964
18 Pin pigtail cable
supplied for use with
Data 2 and 3
000-164-608
This is to supply voltage
for the N2K Bus. The
minimum voltage is 9
VDC and the maximum is
16 VDC.
(recommend 13.5 VDC)
1 amp Fuse
(local supply)
N2K Terminator
Female
AIR-335-792
Pink Light
Data
Green
Port 2
Data
Pin 17
Port 2
Pin 18
