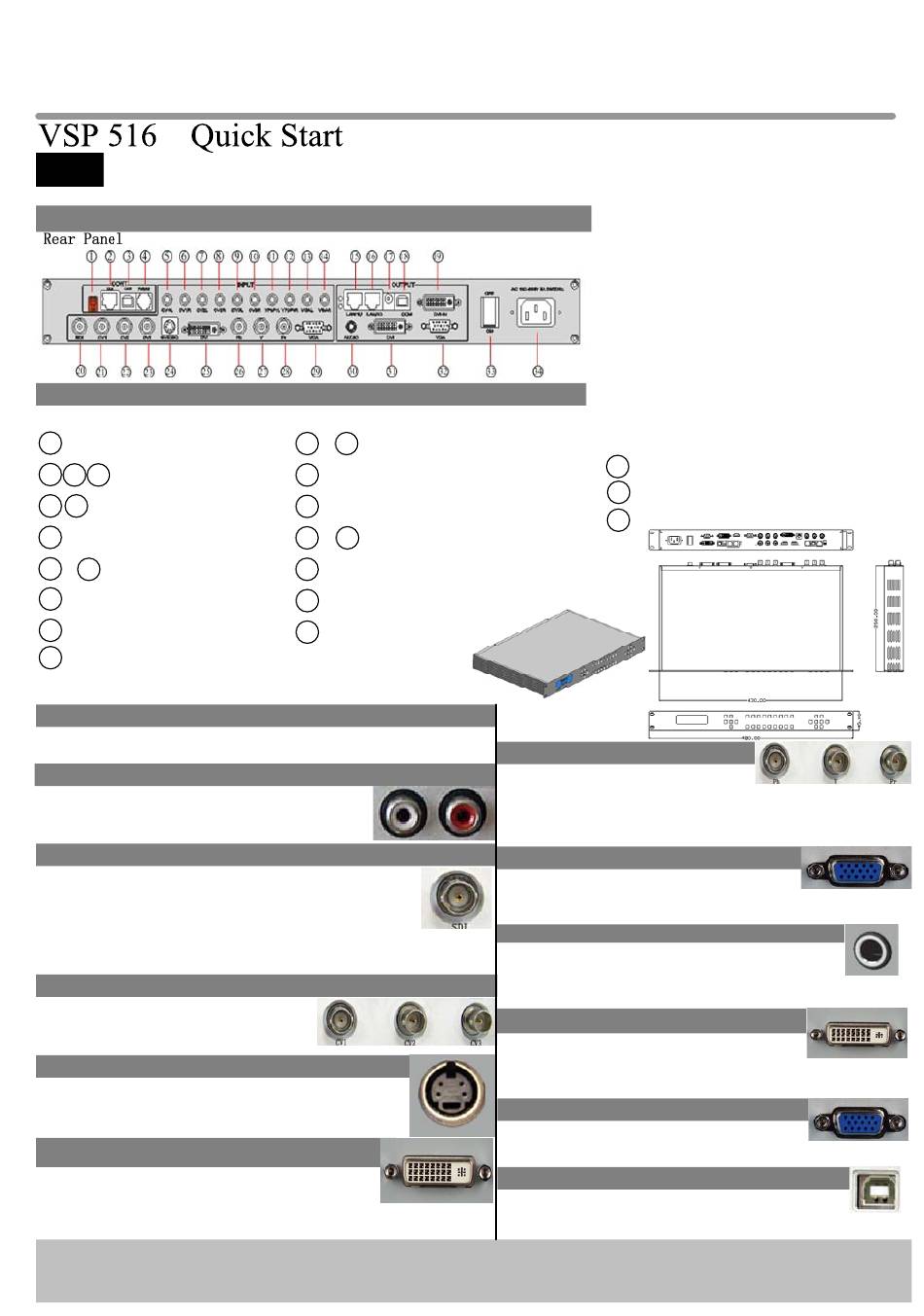

VISIO VSP 516 Quick Start

–
This guide provides quick start instructions for an experienced
Note
installer to set up and operate the VSP 516.
Installation and cabling features
Connections
1
Mini Switches
15 16
2
LAN RJ-45 port
18
3
USB control port
4
RS232 control port
~
14 connector
5
Audio input
17
TX Card Power Connector
19
TX Card DVI Input Connector
SDI input BNC connector
20
Step 1-Mounting
Turn off or disconnect all equipment power sources.
Step 2-Audio Input
Used to input audio signal from Players
with audio output, such as DVD.
Step 3-SDI Input
Used to connect the SDI source such as digital
camera, broadcasting device. SDI input is an
optional module of VSP 516S, based on the
standard VSP 516.
Step 4- Composite Input
Used to input composite signal
(PAL, NTSC, SECAM compatible).
Step 5-S-Video input
Used to input S-Video signal
(PAL, NTSC, SECAM compatible).
Step 6-DVI input
Input the signal from computer,
DVI signal generator and so on.
~
21 23
Composite input BNC connector
24 S-Video (DIN 4) Input connector
25
DVI (DVI-I) Input Connector
~
26 28
Component Female BNC Connector
29
DSUB 15-pin VGA Output Connector
30 connector
Audio output
31
DVI Output Connector
32
DSUB 15-pin VGA Output Connector
33
Power Switch Button
Power Cord Connector IEC-3
34
Step 7-Component input
Used to input signal from DVD
Or media player; Input signal are R/Pr G/Y B/Pb
from left side if check from back panel.
Step 8-VGA input
Input from computer or VGA
source, such as PC or laptop.
Step 9-Audio output
Connect to the audio Amplifier or audio
player.
Step 10-DVI output
Connect to the monitor or LED control
system which has DVI interface.
Step 11-VGA output
Connect to the monitor, projector and
so on.
Step 12-USB connector
Connect VSP516 with PC by USB cable
for control.
VSP 516 Quick Start
Rev 1.0
Page 1 of 3
