Package Contents - D-Link DKVM-4U Quick Installation Manual

Package Contents

4-PORT USB KVM SWITCH
DKVM-4U
KVM CABLE WITH VGA AND USB (X 2)
CONNECT THE DKVM-4U TO YOUR COMPUTERS
QUICK INSTALLATION GUIDE
If any of these items are missing from your packaging, please contact your reseller.

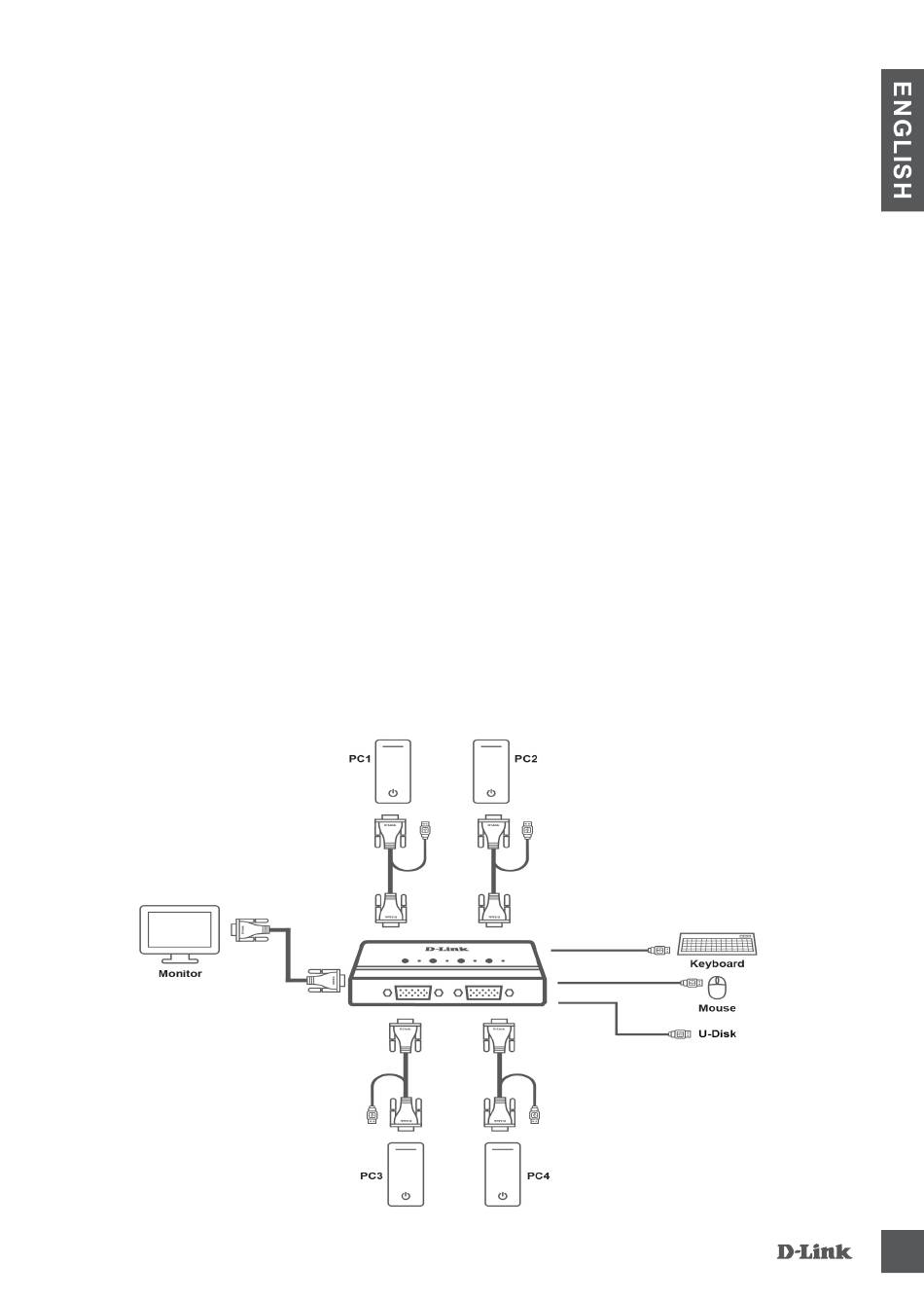

Installing the DKVM-4U
The DKVM-4U supports hot-plugging. You don't need to turn your computers off before installing
the device.
A. Attach your USB keyboard connector to the console USB port of DKVM-4U.
B. Attach your USB mouse connector to the console USB port of DKVM-4U.
C. Attach your monitor's HDB 15 VGA connector to the console port of DKVM-4U.
The following steps below apply to each computer that you are using with your DKVM-4U.
D. Attach the KVM cable (VGA connector) to the VGA port located on the DKVM-4U.
E. Attach the KVM cable (USB connector) to the USB port located on the back of
your computer case.
F. Attach the KVM cable (VGA connector) to the VGA port located on the back of your computer
case.
Installation of the DKVM-4U is now complete.
