OPERATION
SECURITY PIN
The harness loop is the rider's primary connection
to the depower system, as long as it is equipped
with a security pin. This security pin is active only
when the rider is hooked into the harness loop.
Therefore, it is important that a secure connection
is made between the Harness Hook and the
Harness Loop. This critical connection allows
you to depower the kite, spin your bar freely,
and re-launch your kite easily, all while still being
connected to your kite.
• We suggest that you engage the Security Pin
only when ready to launch and/or the Bypass
Leash is connected.
CAUTION: Be advised that when the Security
Pin is engaged, you have a semi-permanent
connection to the kite. As a precaution, know
where your Quick Release Handle is and
be educated on how to activate it before
engaging the Security Pin.
SECURITY PIN – ENGAGING
• Double check that your QR and control system
are set up properly.
• Hook into your harness loop.
• Once hooked into the harness loop, only engage
the Security Pin once you are ready to launch.
• Insert the Security Pin into the center of the
harness hook, making sure it is below the
harness loop. Your harness loop must be
between the harness hook and the Security
Pin in order for this feature to work properly.
(FIG 1 & 2)
• Make sure that the Security Pin is secure. This
will keep your harness loop from accidentally
dropping out of your harness hook.Your Security
Pin is now ready for use.
SECURITY PIN – RELEASING
With your hands, slide the Security Pin out of the
harness hook. (FIG 3)
16
Control System User Manual

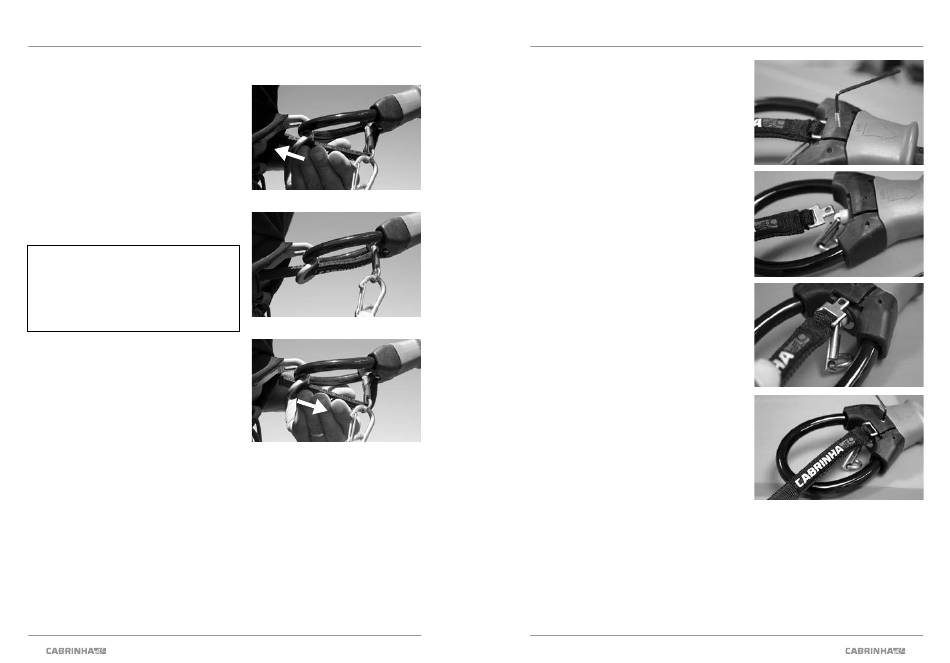

FIG 1
FIG 2
FIG 3
SECURITY PIN REMOVAL
• Using a 2mm Allen Key loosen and remove the
Security Pin Screw by rotating in a counter
clockwise direction. (FIG 4)
• Pull the Security Pin in a downwards motion
(from the Quickloop Body), this may require
some force and may need left to right move
ment. This will remove the Security Pin from
the Quickloop Body. (FIG 5).
• Reinsert the Security Pin Screw and tighten
into the Quickloop Body to avoid loosing it.
SECURITY PIN – CONNECTION
• Using a 2mm Allen Key, loosen and remove the
Security Pin Screw.
• Insert the Security Pin into the cavity on the
bottom of the Quickloop body making sure that
the index dot is facing downwards.
• Using a 2mm Allen Key Re insert the Security
Pin Screw and using a Clockwise rotation,
tighten.
