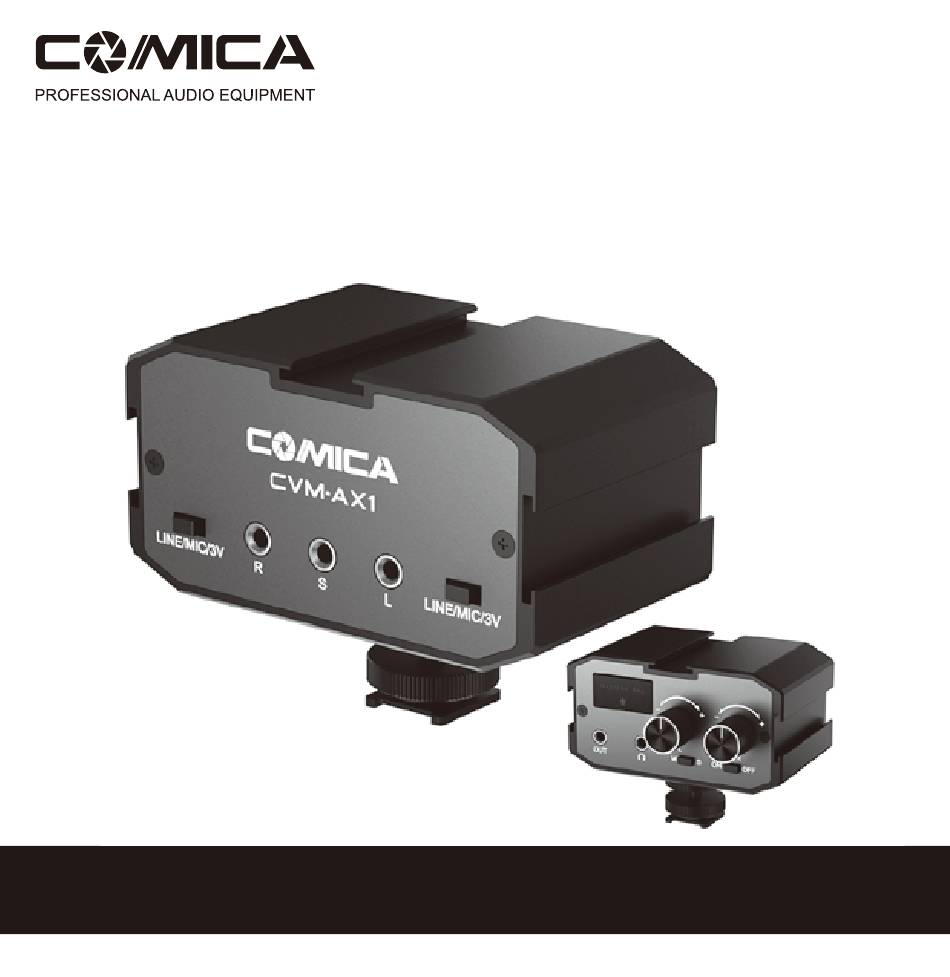

- Page 1 CVM-AX1 3.5mm Dual-Groups Audio Mixer USER MANUAL...
-
Page 3: Main Features
Foreword Thanks for purchasing COMICA CVM-AX1 3.5mm Dual-Groups Audio Mixer. The Comica CVM-AX1 is a 3.5mm Dual-Groups Audio Mixer for shooting videos with any camera and camcorder . It is designed with support positive & passive mic, real-time monitoring, dual gain-control knobs functions etc. It provides a compact audio mixing solution. -
Page 4: Package Contents
Notice Mono and stereo inputs cannot be used simultaneously. Please do not put the device beside the heat or interference source. Please avoid falling, collision or pounding during usage. Don’t expose the device in rain or moist environment . Package Contents Audio Mixer 3.5mm Audio Output Cable Cold Shoe Mount... - Page 5 Components and Instruction Audio Mixer Cold Shoe Interface Audio Output Jack LINE/MIC/3V Switch Real-time Monitoring Jack Mono Input Jack(Right) 3/8 Screw Hole Stereo Input Jack 1/4 Screw Hole Mono Input Jack(Left) Mono/Stereo Switch AAA Battery Holder Power Indicator Light Gain-Control Knob Power Switch 11 12...
- Page 6 Installation and Usage 1. Mount the cold shoe mount to the audio mixer 2. Fix the audio mixer to the camera with the cold shoe mount...
- Page 7 3. Connect audio mixer’s Audio Output Jack(OUT) and camera Audio Input Jack with a audio cable...
- Page 8 4. Mount mics to the cold-shoe Interfaces of audio mixer...
- Page 9 5. Connect the mic and audio mixer...
- Page 10 For stereo mic, connect it to the stereo input jack ('S') For mono mic, connect it to the corresponding 'L' / 'R' input jack Before using, you need to set the "LINE/MIC/3V switch" to the corresponding position according to the microphone type a.
- Page 11 6.Set Mono/Stereo switch Mono/Stereo switch a. When uses only one mic or one channel, select ‘M’ and the output is mono b. When uses two mics or two channels simultaneously, you can optionally switch to 'M' (Mono Mode) or 'S' (Stereo Mode) according to your needs 7.
- Page 12 8.Power on, the indicator light up, and recording starts Indicator light Power Switch 9.If you want to check the audio, you can plug headphone cable into the Real-time Monitoring Jack to monitor audio Real-time Monitoring Jack...
- Page 13 Tech Parameters Input Mono x 2(L/R); Stereo x 1(S) Output 3.5mm Port Output;Headphone Output Battery 1.5V AAA x 2 Dimension 95 x 55 x 49mm Weight 225g Working Temperature 0 ℃ ~ +50 ℃...
- Page 15 CVM-AX1 3.5MM双路音频麦克风混音器 用户使用手册...
- Page 17 前 言 感谢您购买科唛COMICA CVM-AX1 3.5MM双路音频麦克风混音器。 此产品可搭配相机、摄像机进行音频录制。它设计有支持主动/被动式麦克风、实 时监听、双音量调节、单/双声道转换、工作状态指示灯、AAA电池供电、多冷靴 接口等功能，全铝合金材质制作，功能十分强大，能带给您更好的音质效果。 使用前请认真阅读此使用说明书，本产品在出厂时已进行精密校准，请勿自行组 装拆卸零部件，否则不予保修！ 产品主要功能 .双路3.5mm麦克风音频合二为一 .支持主动式/被动式麦克风 .实时监听 .双音量调节旋钮 .单声道/立体声音频输出 .状态指示灯设计 .AAA电池供电 .底部&两侧冷靴接口设计 .全金属制造 AAA电池 双路麦克风 实时监听 支持主/被动式 双音量 单声道 状态指示灯 冷靴接口 全金属制造 合二为一 麦克风 调节旋钮 立体声可选 供电...
- Page 18 注意事项 单声道和立体声输入不能同时工作 使用时请远离热源或干扰源 使用时请避免掉落，碰撞或重击 请勿在下雨或潮湿环境环境中使用，否则会有短路的危险 包装清单 混音器 3.5mm音频输出线 冷靴座 说明书 保修卡...
- Page 19 部件介绍及说明 混音器主体 冷靴接口 音频输出孔 LINE/MIC/3V开关 监听孔 单声道输入孔（右） 3/8螺孔 立体声输入孔 1/4螺孔 单声道输入孔（左） 单声道/立体声开关 AAA电池仓 指示灯 音量控制旋钮 电源开关 11 12...
- Page 20 安装与使用 1.将冷靴座安装至混音器 2.将混音器通过冷靴座固定至相机...
- Page 21 3.用3.5mm音频输出线连接混音器输出孔（OUT）与相机的麦克风输入孔...
- Page 22 4.将麦克风固定至混音器冷靴接口...
- Page 23 5.连接麦克风与混音器...
- Page 24 若是立体声麦克风，接入“S”立体声输入孔 若是单声道麦克风，接入对应的“L”、“R”输入孔 使用时，务必根据使用需求以及麦克风类型， 将‘LINE/MIC/3V开关’拨动至相应位置： a.如使用LINE IN 输入，将开关拨至‘LINE’; b.如使用主动麦克风(麦克风内部有电池供电),将开关拨至‘MIC’; c.如使用被动麦克风(麦克风内部无电池供电),将开关拨至‘3V’; LINE/MIC/3V开关 LINE/MIC/3V开关...
- Page 25 6.设置单声道/立体声（M/S）开关 单声道/立体声（M/S）开关 a. 若使用单只麦克风或一个声道进行录音时，请将开关拨动至‘M’单声道 模式，此状态下只支持M单声道输出； b. 若使用双只麦克风或两个声道同时进行录音，您可根据个人需求选择‘M’ （单声道录音）或‘S’（立体声录音）； 7.为保证录音质量，请将左右声道的两个音量控制旋钮调至合适大小, 以获得最佳音频效果 音量控制旋钮 音量控制旋钮...
- Page 26 8.开机，指示灯亮起，开始录音 指示灯 电源开关 9.如果您想随时检测音频质量，可以将耳机插入混音器监听孔进行监听 监听孔...
- Page 27 技术参数 输入 单声道 x 2(L/R)，立体声 x 1(S) 输出 3.5端口输出，耳机输出 电池 1.5V AAA x 2 尺寸 95 x 55 x 49mm 净重 225g 工作温度 0℃ ~ +50℃...
