OPHARDT HYGIENE PRAESIDIO 1421051 Instruction Manual

P R AE S I D IO C o l u m n
®
Art.-No. 1421051
Technical modifications reserved.
Instruction Manual
Boden Floor
492
Dimensions in mm

Safety information - Attention!

• Mounting must be completed by two people.
• Mount the two column elemets in a horizontal position - risk
of crushing!
• Do not install the appliance in passageways!
• Tighten all fittings.
• Not a toy! Use only under adult supervision.
• Use only the OPHARDT hygiene PRAESIDIO
Maintenance: Please ensure that the column is sufficiently
stable and tighten loose fittings regularly.

Maintenance

• Wipe column with a lightly moistened cloth to remove
• product residue
• Please do not use acidic, caustic (chlorous) purifiers or
scouring powder.
• Use only disinfectant that is compatible with the material

Mounting information

• Please remove the protective film before mounting!
• Instruction Manual
4.
3.2
5.
450
3.1
for the column.
®
1.
Ophardt Hygiene-Technik GmbH + Co. KG • Lindenau 27
47661 Issum • Germany
Phone +49 28 35 18-0 • Fax +49 28 35 18-77
Email customercare@ophardt.com • www.ophardt.com
•

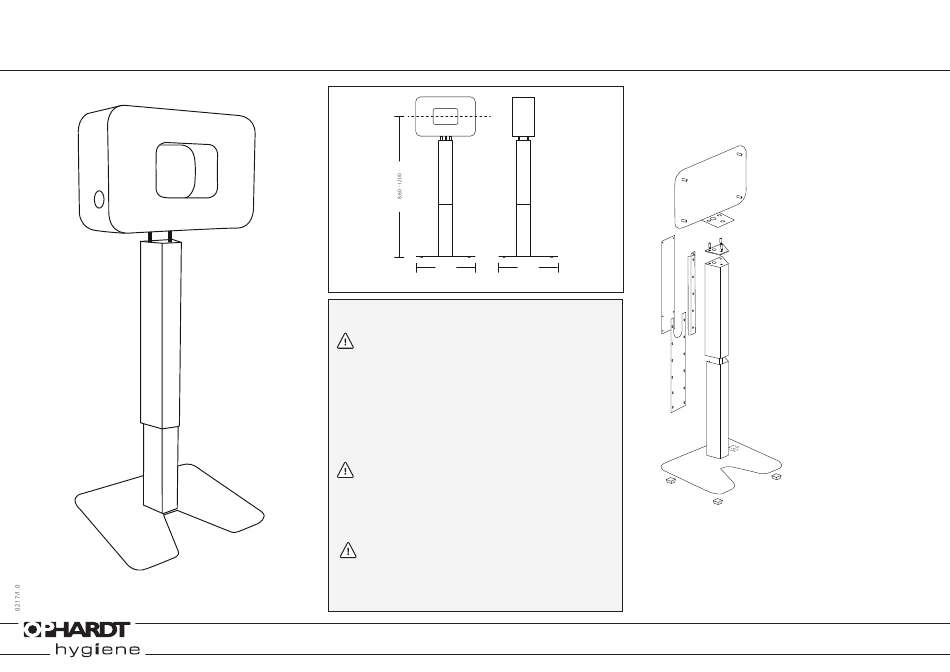

Scope of Delivery:

1. Ground plate
2. 2.1 Column mounted
2.2 Column mounted
3. 3.1 Column back plate
3.2 Column back plate
4. Back plate
5. Fixing rod
6. 3 spacers
7. Cover plate
8. Base, self-adhesive
9. 15 screws
10. 6 nuts
6.
7.

Required tools:

1. Allen key, 3 mm
2. Socket wrench SW 8

List of screws and nuts:

2.2
Typ 1: 15 rounded head screws
M5 x 8
Typ 2: 2 hexagon nuts
M5, self-locking (for 5.),
4 hexagon nuts
M5 (for fixing Praesidio)
2.1
8.
