Center Channel II Placement

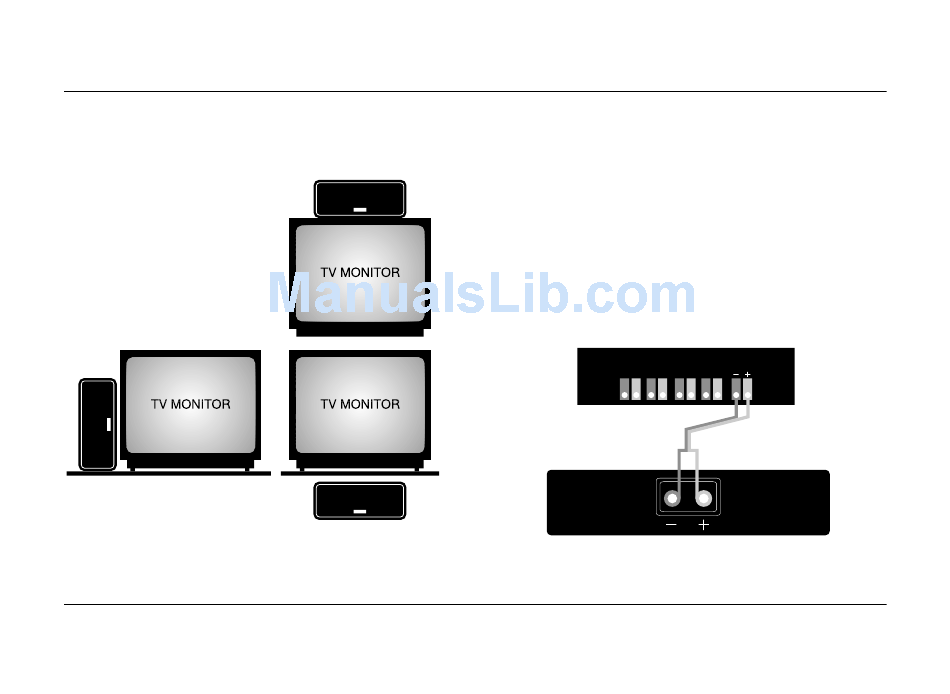

Center Channel II should be placed
directly atop, beneath, or along-
side the TV monitor as shown in
Figure 3. The other speakers in
the system should be placed
approximately as shown in Figure
1 (consult "Getting The Most From
Your Dolby Surround System" for a
more detailed discussion of
placing the other speakers).
Center Channel II is magnetically shielded
so it can be placed directly atop,
alongside, or beneath the TV monitor
Figure 3

Connections

Your center channel speaker
should be connected to the center
channel speaker outputs on your
Dolby Digital or Dolby Surround
with Pro Logic receiver or decoder/
amplifier as shown in Figure 4.
Important note: All speakers
should be connected in phase.
The terminals on your center
channel speaker and on many
receivers and amplifiers are coded
red (+) and black (–) to insure
correct phase. Make sure you
RECEIVER OR DECODER/AMPLIFIER
WITH DOLBY PRO LOGIC SURROUND
SPEAKER CONNECTIONS
FRONT
L
IMPORTANT: Be sure all
speakers are connected
identically in phase as
explained in the text.
CENTER CHANNEL SPEAKER
3
connect the red speaker terminals
to the red receiver terminals and
the black speaker terminals to the
black receiver terminals. Two-
conductor speaker cable is coded
along one conductor with lettering,
with a stripe or a bead–or–the
appearance of the two conductors
differs, usually one copper and one
silver. This allows you to easily
connect the proper conductor to
each terminal.
SURROUND CTR
R L R
Figure 4
