Cambridge Audio Azur 640T Technical Specifications

Tech specs

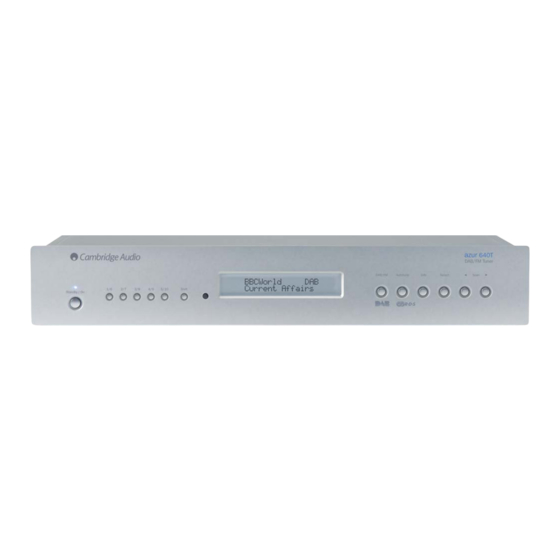

Azur 640T digital DAB/FM radio
Cambridge Audio builds on its award winning DAB
pedigree with this fully featured and versatile design.
Continuing the high-quality design and build found
throughout the entire Azur range, the 640T incorporates
an array of state-of-the-art technologies and
innovations.
Forming the very heart of the unit is the latest highly
integrated DAB (Digital Audio Broadcasting) chipset
from Texas Instruments coupled to a high-performance
Wolfson WM8716 24-bit/192kHz digital to analogue
converter. The 640T fluently conveys both digital and
FM radio broadcasts with superb clarity and passion.
Cambridge Audio's unique Natural Contour
Azur 640T specifications
Wavebands:
Antenna Input Impedance:
Adjacent Channel Selectivity (EN50248): 35dB typical
Far-off Selectivity (EN50248):
DAB Performance
Frequency Range (Band III):
Frequency Range (L-Band):
Frequency Response:
THD&N @ 0dB, 1KHz Output:
Signal to Noise Ratio (A weighted):
Cambridge Audio, Gallery Court, Hankey Place, London, SE1 4BB, England
© 2005 Cambridge Audio Ltd Issued: August 2005
DAB Band III
DAB L-Band
FM
50 ohms
55dB typical
174MHz to 240MHz
1452MHz to 1491MHz
20Hz to 20kHz +/- 1dB
0.007% max
100dB min
w w w . c a m b r i d g e - a u d i o . c o m
TechnologyTM (NCT) domain compensation system
enables easy and subtle adjustment of a radio
broadcast's timbre, via a control on the 640T's rear
panel. The 'Warm' setting balances out heavily digital
sounding broadcasts by intensifying weight and warmth,
while the 'Lively' setting breathes life into compressed,
mechanical transmissions.
The gleaming aluminium front panel boasts a clear
informative LCD display. This provides information
on radio station, artist, track and can even display lyrics
when broadcast.
FM Performance
Frequency Range:
RF Sensitivity for Signal to Noise of 26dB:
Large Signal Handling Capacity:
Ultimate Signal to Noise Ratio at 200mV:
THD&N @ 200mV RF Input, 1KHz audio,
75KHz Deviation:
Max. Power Consumption:
Dimensions (W x D x H) (mm):
Dimensions (W x D x H) (in):
Weight:
Cambridge Audio's policy is one of continuous
improvement. Design and specifications are
therefore subject to change without prior notice.
87.5MHz to 108MHz
0.5mV
500mV
58dB
0.15%
15 watts
430 x 310 x 70
16.9 x 12.2 x 2.8
3.68kg/8.11lbs
