Advent MP51 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

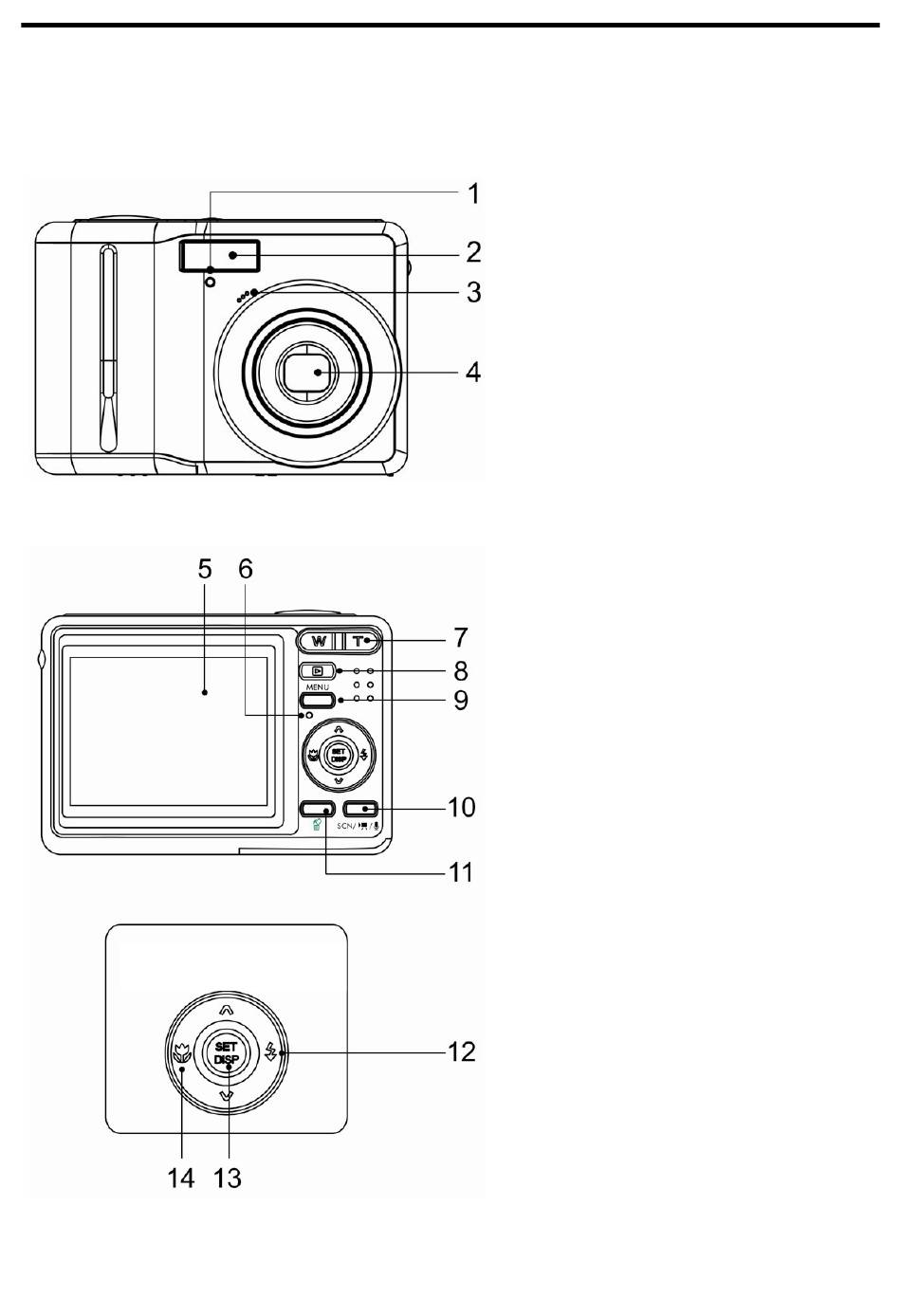

Camera components
1. Pilot timer
2. Flash
3. Microphone
4. Lens
5. LCD Display
6. Operating pilot
7. Zoom button, see also: Thumbnail
Playback Zoom
8. Playback button
9. Menu button (Menu)
10. Mode button
11. Delete button
4-way control
12. Flash button
13. Button SET / DISP
14. Macro Button
one

Advertisement

loading
Need help?

Need help?

Do you have a question about the MP51 and is the answer not in the manual?

Questions and answers

Related Manuals for Advent MP51

Summary of Contents for Advent MP51

  • Page 1 Camera components 1. Pilot timer 2. Flash 3. Microphone 4. Lens 5. LCD Display 6. Operating pilot 7. Zoom button, see also: Thumbnail Playback Zoom 8. Playback button 9. Menu button (Menu) 10. Mode button 11. Delete button 4-way control 12.
  • Page 2 15. Support belt 16. Shutter button 17. Power button 18. Speaker 19. USB / AV 20. Tripod socket 21. Hollow battery...

  • Page 3: Inserting The Batteries

    Inserting the batteries The camera uses two AA alkaline or rechargeable Ni-MH batteries (min. 2500 mAh / 1.2V). Open the battery cover. Slide the battery cover in the direction of the arrow. Insert the batteries. Insert two AA batteries with the plus (+) and negative (-) to coincide with the address in the camera.
  • Page 4 Placing the memory card With this digital camera an SD or MMC card can be used. Slot memory card is located below the battery cover, adjacent to the battery compartment. Open the battery cover. Slide the cover in the direction of the arrow. Insert the card.
  • Page 5 Set Date and Time February Turn the camera on and go to Setup Menu (Setup menu). Select [ Date & Time] (date and hour). Press to select [ Date & to select [ Date & Time] ( date and time) and then press Time] ( date and time) and then press or the button SET ( adjust) to open the or the button SET ( adjust) to open the...

  • Page 6: Using The Lcd Screen

    Using the LCD screen The LCD screen is used to compose images while recording, adjust settings and replay images. On the LCD screen the following icons may appear while recordings are made and images are reproduced. REC mode (recording) one Recording mode one Recording mode eleven Focus Area eleven Focus Area...
  • Page 7 Playback mode one Play mode (play) one Play mode (play) Recording information two Protected two Protected 7 Batteries / Battery 7 Batteries / Battery 3 Sound Recording 3 Sound Recording 8 Date and time of recording 8 Date and time of recording 4 File number / Total 4 File number / Total 9 Sound Control...

  • Page 8: Basic Operation

    Basic operation On and Off the Camera Press the power button () to turn on the camera in recording mode. The camera turns on, the lens unfolds and the green light comes on. Press the play button () to turn on the camera in playback mode.

  • Page 9: Mode Change

    Mode change The recording mode allows you to record images and sounds. Playback mode allows you to play, delete or edit images on the LCD screen. Changing the recording mode to playback mode In recording mode, press the button () to switch to playback mode.
  • Page 10 The digital zoom magnifies the central portion of an image through a software interpolation process. The digital zoom is used to obtain a level of approximately 4-fold increase. Using the flash The flash is used not only for taking pictures when there is insufficient light, it is also used when the subject is in shadow or backlit situations.
  • Page 11 If the battery is low, it may take longer to charge the flash. Using the macro The camera is equipped with a macro function that allows focus on objects nearby. macro mode allows to focus objects located 15 cm above the lens with the option selected maximum angle (away) and 40 cm with the option sockets telephoto (zoomed). February Turn the camera on and go to the recording mode.
  • Page 12 Using the timer and burst Use the timer to set a delay time period between the time when the shutter button and the moment when the shot is taken is pressed. Use the burst to take pictures in rapid succession of static images. Turn the camera on and go to the recording mode.
  • Page 13 This symbol may appear on the product or the instructions means that electronic or electrical appliance may not be disposed at the end of his life with other household waste but separately. there are separate collection systems for recycling in the EU. For more information, contact your local authorities or the shop where you purchased the product.

This manual is also suitable for:

Mp71
