- Page 1 Intelligent Solution Interface V5-NTG45-PNP compatible with Mercedes Benz vehicles with COMAND Online NTG4.5 navigation and Audio20 NTG45 system with 4pin HSD LVDS connector Version 03.06.2015 V5-NTG45-PNP...
- Page 2 Manual switching to rear-view camera Manual return from rear-view and front camera (cancellation of automatic switching) Compatible with all factory video accessories (e.g. rear-view camera, DVD-changer, TV-tuner) USB update-port for software-updates by consumer Plug& Play installation Version 03.06.2015 V5-NTG45-PNP...
-
Page 3: Table Of Contents
Configurable trigger outputs 3.3. Picture settings 4. Operation 4.1. OSD – On-screen display 4.1.1. OSD – Operation 4.1.2. OSD – Additional setting options 4.2. Selecting the interface as current video source 5. Specifications 6. Connections (interface-box) 7. Technical support Version 03.06.2015 V5-NTG45-PNP... -
Page 4: Prior To Installation

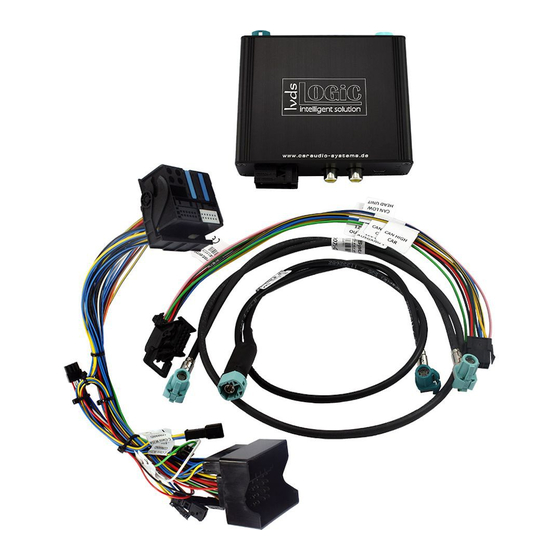

1.1. Delivery contents Take down the SW-version and HW-version of the interface boxes, and store this manual for support purposes. LVDS cable CAB-HSD-MR-060-OZ Interface-box V5C-M613 HW_____ SW_____ V5C-MBN45 harness V5C-UNI01 harness LVDS cable CAB-HSD-DD075-O Version 03.06.2015 V5-NTG45-PNP... -
Page 5: Check Compatibility Of Vehicle And Accessories
Dip 1 COMAND Online NTG4.5 Audio20 NTG4.5 After each change of the dip switch settings you have to execute a power reset of the interface interface-box! 1.4. LED‘s of the interface-box V5C-M613 Valid input source CAN ok Power Version 03.06.2015 V5-NTG45-PNP... -
Page 6: Connection Schema
Back of CAB-HSD-MR-060-OZ head unit 4-Pin HSD LVDS female vehicle harness V5C-MBN45 harness +12V switching output Rear gear signal input (+12V) Interface-box V5C-M613 FRONT Rear-view camera V5C-UNI01 harness Front camera +12V switching Quadlock female output vehicle harness Version 03.06.2015 V5-NTG45-PNP... -
Page 7: Installation
Quadlock connector of harness V5C-MBN45 at the same position. Connect female Quadlock connector of vehicle harness to the male Quadlock connector of harness V5C-MBN45. Connect female Quadlock connector of harness V5C-MBN45 to the male Quadlock connector of the navigation computer Version 03.06.2015 V5-NTG45-PNP... - Page 8 COMAND COMAND - NTG4.5 - NTG4.5 Connection for C-class W204 with Comand NTG4.5 Main C-Class W204 input COMAND - NTG4.5 Main C-Class W204 input COMAND - NTG4.5 COMAND COMAND / AUDIO20 / AUDIO20 - NTG4.5 - NTG4.5 Version 03.06.2015 V5-NTG45-PNP...
-
Page 9: Lvds Connection
4pin HSD LVDS connector (LVDS-OUT) on the rear of the interface-box V5C-M613. Connect the female 4pin HSD LVDS connector of the LVDS cable CAB-HSD-DD075-O to the grey male 4pin HSD LVDS connector on the rear of the head unit. Version 03.06.2015 V5-NTG45-PNP... -
Page 10: After-Market Front Camera
The pink wire of harness V5C-UNI01 can be used for +12V electric power supply (max. 1A) of the after-market front camera. Configure in the OSD- menu “MISC”, menu item “POWER OUT 1” the designated electric power supply (see chapter “Configurable switching outputs”). Version 03.06.2015 V5-NTG45-PNP... -
Page 11: Settings For Connecting An After-Market Front Camera
Note: RGEAR+SPEED / RGEAR+TIME setting: After deactivation you can’t enable the parking process again until the vehicle is driving faster than 20km/h / less than 20 seconds has passed or the ignition is switched off and on. Version 03.06.2015 V5-NTG45-PNP... -
Page 12: After-Market Rear-View Camera
On some vehicles the reverse light signal doesn’t exist on the CAN-bus. Connect the white wire of harness V5C-UNI01 to reverse light signal (+12V of reverse light) if the system doesn’t switch to the rear-view camera automatically after the described OSD-setup (see next chapter). Version 03.06.2015 V5-NTG45-PNP... -
Page 13: Settings For Connecting An After-Market Rear-View Camera
Note: RGEAR+SPEED / RGEAR+TIME setting: After deactivation you can’t enable the parking process again until the vehicle is driving faster than 20km/h / less than 20 seconds has passed or the ignition is switched off and on. Version 03.06.2015 V5-NTG45-PNP... -
Page 14: Configurable Trigger Outputs
POWER OUT 1 +12V when the interface is on (red LED on) (pink) MISC Ignition +12V when ignition is on POWER OUT 2 RearCam +12V when reverse gear is active (green) +12V when parking process is active Version 03.06.2015 V5-NTG45-PNP... -
Page 15: Picture Settings
You can change the basic configurations of the interface in the OSD (on screen display). 4.1.1. OSD – Operation You can control the OSD by the knob. Op ons Long press = enter/leave OSD Back + leaving OSD Op ons Op ons Version 03.06.2015 V5-NTG45-PNP... -
Page 16: Osd - Additional Setting Options
Short press C button to switch the video sources. Each short press will switch to the next enabled input. If all inputs are enabled the order is: FRONT CAM REAR CAM … Inputs which are not enabled are skipped. Version 03.06.2015 V5-NTG45-PNP... -
Page 17: Specifications
Front camera Female input update-connector Mini USB 7. Technical Support Caraudio-Systems Vertriebs GmbH manufacturer/distribution In den Fuchslöchern 3 D-67240 Bobenheim-Roxheim email support@caraudio-systems.de Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ® of their corresponding legal owners.
