ORDER CODE: EDI-516-3600K
MODEL MNT070
3
1
in

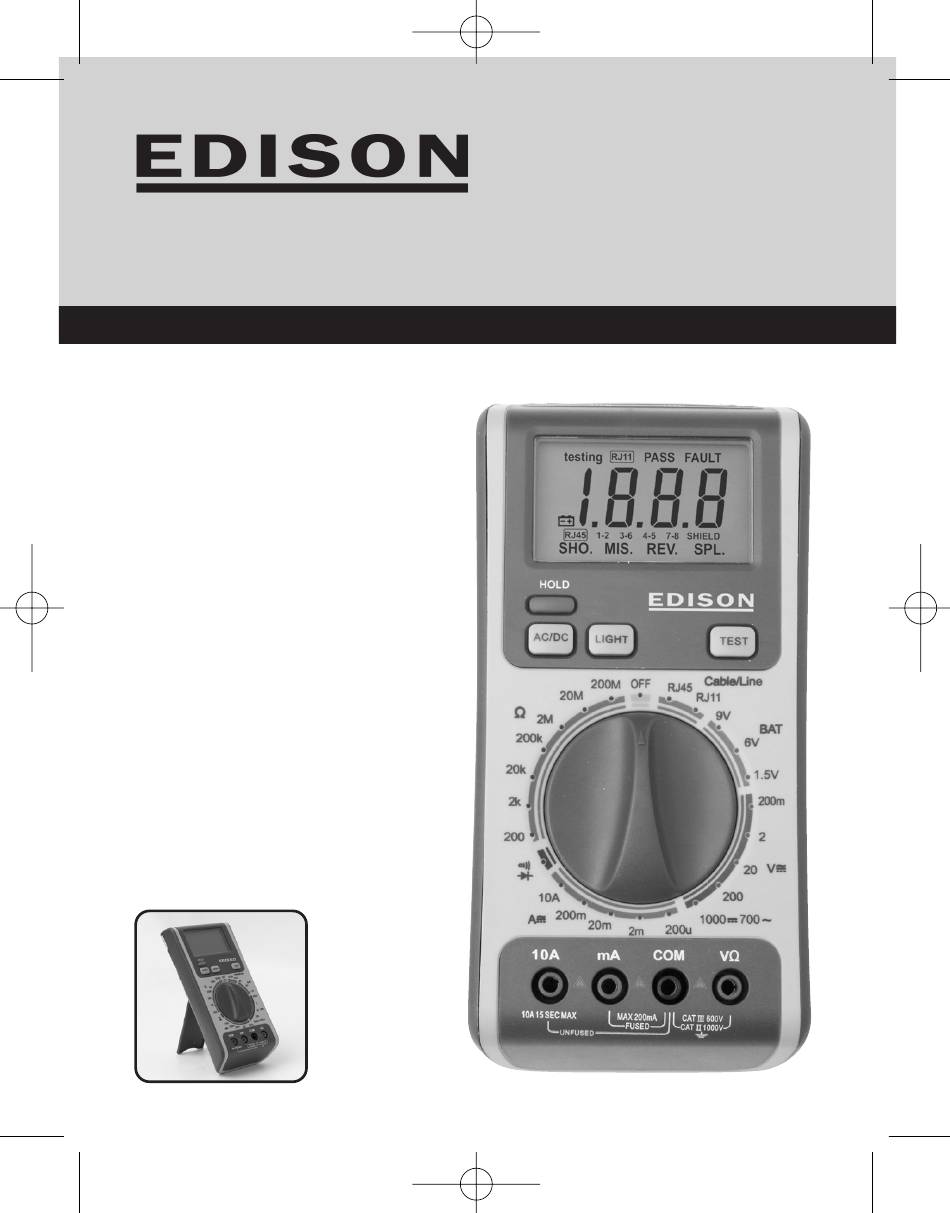

Digital Multimeter and Network
Maintenance Tester
OPERATING MANUAL
F F u u n n c c t t i i o o n n s s
• N N e e t t w w o o r r k k c c a a b b l l e e t t e e s s t t i i n n g g . .
• L L i i n n e e t t e e s s t t i i n n g g ( ( R R J J 1 1 1 1 ) ) . .
• D D M M M M t t e e s s t t i i n n g g . .
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Edison MNT070
Summary of Contents for Edison MNT070
- Page 1 5163600K_Instructions.qxd 17/09/2009 15:14 Page 1 ORDER CODE: EDI-516-3600K MODEL MNT070 Digital Multimeter and Network Maintenance Tester OPERATING MANUAL F F u u n n c c t t i i o o n n s s • N N e e t t w w o o r r k k c c a a b b l l e e t t e e s s t t i i n n g g . .
-
Page 2: Table Of Contents
5163600K_Instructions.qxd 17/09/2009 15:14 Page 2 CONTENT 1. GENERAL INSTRUCTIONS ..................2 2. DESCRIPTION ......................4 3. OPERATING INSTRUCTION ..................6 4. SPECIFICATIONS....................10 5. MAINTENANCE ......................12 6. PACK CONTENT ....................13 1. G E N E R A L I N S T R U C T I O N S This multimeter has been designed according to IEC1010 standards for electronic measuring instruments with an over-voltage category (CAT II 1000V, CAT III 600V) and pollution level 2. - Page 3 5163600K_Instructions.qxd 17/09/2009 15:14 Page 3 3 in 1 Digital Multimeter and Network Maintenance Tester • Before changing functions, disconnect the test leads from the circuit under test. • Before attempting to insert transistors for testing, always be sure that test leads have been disconnected from any measurement circuits.
-
Page 4: Description
5163600K_Instructions.qxd 17/09/2009 15:14 Page 4 2. D E S C R I P T I O N 2.1 Functions The 3 in 1 digital multi-tester has been designed to combine the functions of Digital Multimeter, Telephone Line Tester and Network Cable Tester. •... - Page 5 5163600K_Instructions.qxd 17/09/2009 15:14 Page 5 3 in 1 Digital Multimeter and Network Maintenance Tester...
-
Page 6: Operating Instruction
5163600K_Instructions.qxd 17/09/2009 15:14 Page 6 3. O P E R A T I N G I N S T R U C T I O N Measuring Voltage 1 1 . . Connect the Black test lead to the C C O O M M jack and the Red test lead to the V V Ω Ω jack. 2 2 . - Page 7 5163600K_Instructions.qxd 17/09/2009 15:14 Page 7 3 in 1 Digital Multimeter and Network Maintenance Tester N N O O T T E E : : • If the resistance is above 1MΩ Ω , the meter may take a few seconds to stabilise the reading.
- Page 8 5163600K_Instructions.qxd 17/09/2009 15:14 Page 8 • SHO. - A short circuit condition exists ( ( F F i i g g . . 1 1 ) ) . Fig 1 - SHORT • MIS. - Indicates the improper assignment of individual wire pairs to pins for the wiring schemes tested ( ( F F i i g g .
- Page 9 5163600K_Instructions.qxd 17/09/2009 15:14 Page 9 3 in 1 Digital Multimeter and Network Maintenance Tester • PASS - No problems found, a passed circuit ( ( F F i i g g . . 5 5 ) ) . Fig 5 - RIGHT (PASS) •...
-
Page 10: Specifications
5163600K_Instructions.qxd 17/09/2009 15:14 Page 10 4. S P E C I F I C A T I O N S • Accuracy is specified for a period of 1 year after calibration and at 18°C to 28°C (64°F to 82°F) with relative humidity to 80%. General MAXIMUM VOLTAGE 1000V DC or 700V AC... - Page 11 5163600K_Instructions.qxd 17/09/2009 15:14 Page 11 3 in 1 Digital Multimeter and Network Maintenance Tester AC Current RANGE RESOLUTION ACCURACY 200µA 0.1µA ±(2.0% rdg ±3 digits) 1µA ±(1.0% rdg ±3 digits) 20mA 10µA 200mA 100µA ±(1.8% rdg ±3 digits) 10mA ±(3.0% rdg ±5 digits) •...
-
Page 12: Maintenance
5163600K_Instructions.qxd 17/09/2009 15:14 Page 12 5. M A I N T E N A N C E 5.1 General Maintenance and Cleaning To avoid electrical shock or damage to the multimeter, do not get water inside the case. Remove the test leads and any input signals before opening the case. -
Page 13: Pack Content
5163600K_Instructions.qxd 17/09/2009 15:14 Page 13 3 in 1 Digital Multimeter and Network Maintenance Tester 5.3 Fuse replacement 1 1 . . Set the meter to 'OFF' state. 2 2 . . Disconnect test leads from any inputs terminals. 3 3 . . Use the appropriate screwdriver to unscrew the secured back cover and then the battery cover. - Page 14 5163600K_Instructions.qxd 17/09/2009 15:14 Page 14 Notes...
- Page 15 5163600K_Instructions.qxd 17/09/2009 15:14 Page 15 3 in 1 Digital Multimeter and Network Maintenance Tester...
- Page 16 5163600K_Instructions.qxd 17/09/2009 15:14 Page 16 EDISON The Power Factory, PO Box 14, Wigston, Leicester, England. ISO 9001 Registered Company Edison Products are continuously being developed and improved. All details and illustrations are for guidance and may be subject to change.
