- Page 1 azur 540C/640C V2.0 Compact disc player User’s manual...
-
Page 2: Table Of Contents
CONTENTS Introduction ...3 Safety precautions ...4 Important safety instructions ...5 Rear panel connections...6 Front panel controls ...7 Remote control ...8 Operating instructions...9-11 Custom installation use ...12 Troubleshooting...12 Technical specifications ...13 Limited warranty ...14 2 Azur compact disc player... -
Page 3: Introduction
As with previous Azur CD players, both the 540C V2.0 and 640C V2.0 make use of a custom Cambridge Audio servo solution and transport, at the heart of which is a VLSI (Very Large Scale Integration) circuit which dynamically adjusts in real time the focusing, tracking and output level of the laser for the maximum retrieval of digital information. -
Page 4: Safety Precautions
If the power cord is fitted with a moulded mains plug the unit must not be used if the plastic fuse carrier is not in place. Should you lose the fuse carrier the correct part must be reordered from your Cambridge Audio dealer. -
Page 5: Important Safety Instructions
To clean the unit, wipe its case with a moist, lint-free cloth. Do not use any cleaning fluids containing alcohol, ammonia or abrasives. Do not spray an aerosol at or near your CD player. Ensure that small objects do not fall through any ventilation grille. If this happens, switch off immediately, disconnect from the mains supply and contact your dealer for advice. -
Page 6: Rear Panel Connections
REAR PANEL CONNECTIONS Class 1 Laser Product Luokan 1 Laserplaite Klass 1 Laserapparat Mains Voltage Selector Switch (50 / 60Hz) Power Power AC Manufactured in an ISO9002 approved facility Mains Voltage Selector Switch Switches the mains voltage between 115V and 230V. For use by installer/dealer only. -
Page 7: Front Panel Controls

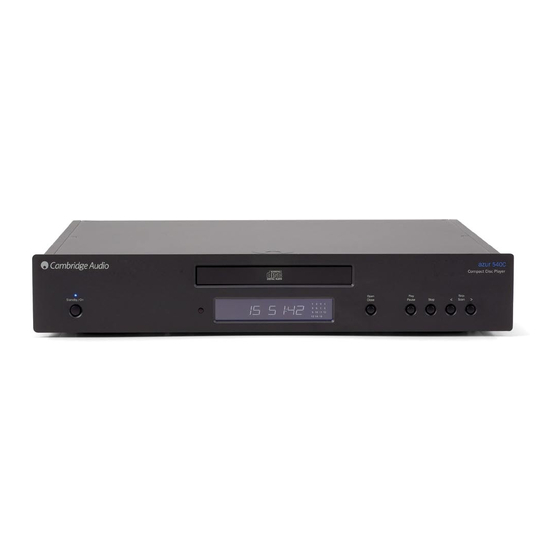

FRONT PANEL CONTROLS Standby / On Standby/On Switches the unit between On and Standby mode. The blue LED indicates that it is On when bright and in Standby mode when dim. Open/Close Allows you to open and close the disc tray thus making it possible to load a disc. -
Page 8: Remote Control
REMOTE CONTROL The 540C/640C V2.0 is supplied with an Azur Navigator remote control that operates both this CD player and Cambridge Audio Azur amplifiers. Insert the supplied AAA batteries to activate. Standby/On Switches the unit between On and Standby mode. -
Page 9: Operating Instructions
4. To close the disc tray, press the Open/Close button again. When the tray, with a correctly loaded disc, is fully closed the disc will start turning automatically. After the CD player has read the disc it will be ready to play. Pressing Play will also close the tray and start playing the disc. - Page 10 2. Press the Random button on the remote control. ‘Random’ will appear on the display. 10 Azur compact disc player 3. Press Play. The CD Player will now play the entire disc in a random order. 4. Press Random to exit Random function. The disc will continue playing to the end in the correct order.
- Page 11 Using the Remain function 1. Ensure that the disc is playing. 2. Press the Remain button on the remote control once to display the time remaining on the track playing. 3. Press Remain a second time to show remaining number of tracks and total disc time remaining.
-
Page 12: Custom Installation Use
CD player “On” command will be generated. If the button is kept held down for a further 12 seconds, a CD player “Off” command is generated. A full code table for this product is available on the Cambridge Audio website at www.cambridge-audio.com. 12 Azur compact disc player... -
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS 540C V2.0 D/A Converter Wolfson WM8740 24-Bit/192kHz capable Filter 3 Pole Double Virtual Earth balanced Freq response (+/-0.2dB) 20Hz to 20kHz THD @ 1Khz 0dBFs < 0.0015% THD @ 1Khz -10dBFs < 0.0010% THD @ 20Khz 0dBFs < 0.0080% IMD (19/20kHz) 0dBFs <... -
Page 14: Limited Warranty
If your dealer is not equipped to perform the repair of your Cambridge Audio product, it can be returned by your dealer to Cambridge Audio or an authorised Cambridge Audio service agent. You will need to ship this product in either its original packaging or packaging affording an equal degree of protection. - Page 15 This guide is designed to make installing and using this product as easy as possible. Information in this document has been carefully checked for accuracy at the time of printing; however, Cambridge Audio's policy is one of continuous improvement, therefore design and specifications are subject to change without prior notice.
- Page 16 azur 540C/640C V2.0 www.cambridge-audio.com Part No. AP18377/2...
