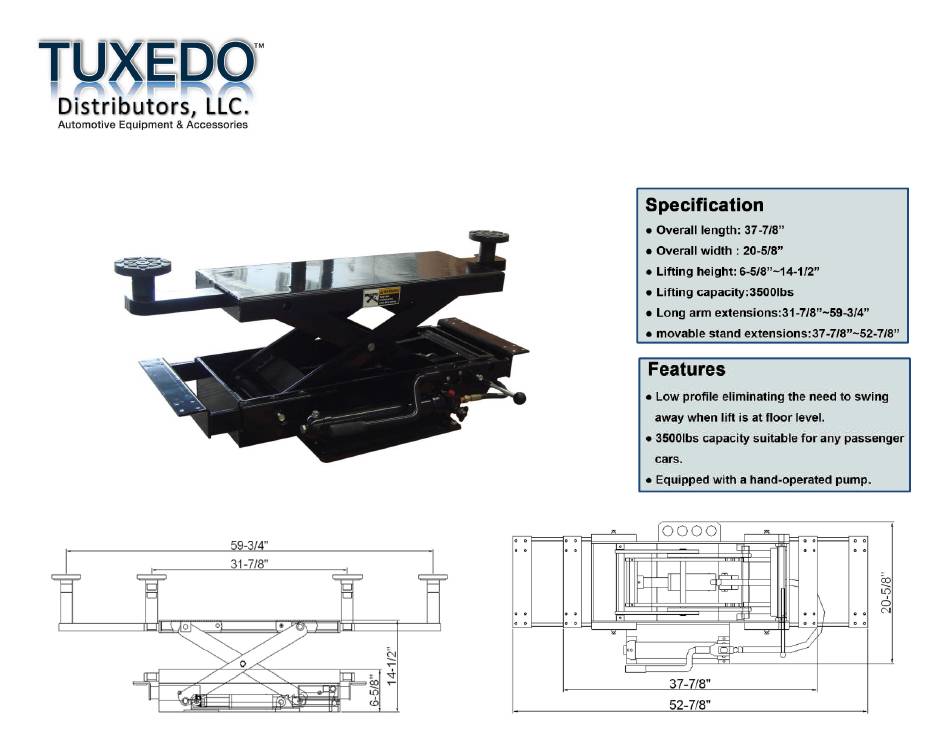

- Page 1 SJ-35 SLIDING SCISSOR JACK 3,500lbs. Capacity...
- Page 2 SJ-35 Sliding Bridge Jack 3,500 lbs. Capacity ASSEMBLY & OPERATION INSTRUCTION MANUAL May 2017...
-
Page 3: Table Of Contents
Safety Instructions....................4 Operating Instructions.................... 5 Maintenance Instructions..................6 Trouble Shooting....................7 Exploded View......................8 Parts List........................ 9 - 10 Warranty......................... 11 SPECIFICATIONS Model Number: SJ-35 Size *Height Pad Width Slider Body Asy Capacity L x W x H (Min/Max) -
Page 4: Description & Features
B. The sliding body assembly arms are adjustable for an inside runway width of 30" (762 mm) minimum to a 45.7” (1162 mm) maximum. (Fig.1) E. The SJ-35 Sliding Jack is equipped (1) pair of contact pad adaptors with rubber pad inserts and two (2) different sizes of stackable height adaptors at 1.5” & 5”. -
Page 5: Installation Instructions
• Thoroughly train all employees in the use and care of sliding jack. • Never overload sliding jack. Capacity of sliding jack is stated on the nameplate. Capacity should not be exceeded. • Observe and avoid any pinch point areas of the linkage mechanism. DO NOT OVERLOAD JACK!!! SJ-35 May 2017... -
Page 6: Operating Instructions
5. To Lower Rolling Jack: Slightly raise jack to release off locks, followed by moving the lock release lever to the right, while carefully turning the hydraulic release valve knob counter-clockwise until the jack lowers completely. CAUTION! Always fully lower jack to prevent damage to the vehicle or lift. SJ-35 May 2017... -
Page 7: Maintenance Instructions
3. Remove fill plug and check fluid level. Fill as required to bottom of fill hole with AW32 hydraulic fluid. Take care to prevent contamination during filling operation. 4. Reinstall plug hand tight only. NOTE: Repair/Replace as required with original equipment parts. SJ-35 May 2017... -
Page 8: Trouble Shooting
WARNING! If sliding jack is in the raised position, be sure to activate the mechanical locking device prior to attempting to service the unit. Failure to do so may cause jack to drop out of control. SJ-35 May 2017... -
Page 9: Exploded View
EXPLODED VIEW SJ-35 May 2017... -
Page 10: Parts List
PARTS LIST ITEM Tux P/N M-Ref P/N DESCRIPTION SJ-35-001 LJ03-00005-000 Nylon Pad SJ-35-002 LJ03-07000-000 Slider Body Frame SJ-35-003 5107-05010-000 Screw, M5x10 SJ-35-004 LJ03-08000-000 Base Weldment SJ-35-005 5101-08016-000 Screw, M8x16 SJ-35-006 5114-06010-000 Threaded Pin, M6x10 SJ-35-007 LJ03-00002-000 SJ-35-008 LJ03-10100-000 Contact Pad... - Page 11 SJ-35-035 5101-08030-000 Screw, M8x30 SJ-35-036 5201-00008-000 Nut, M8 SJ-35-037 LJ03-09000-000 Cylinder 37.1 SJ-35-037.1 LJ03-09006-000 Duct Ring 37.2 SJ-35-037.2 LJ03-09004-000 guide ring 37.3 SJ-35-037.3 LJ03-09005-000 Guide Ring 2# 37.4 SJ-35-037.4 LJ03-09007-000 Piston Rod 37.5 SJ-35-037.5 LJ03-09003-000 Piston 37.6 SJ-35-037.6 LJ03-09002-000 Guide Ring #1 37.7...
-
Page 12: Warranty
SJ-35 May 2017...
