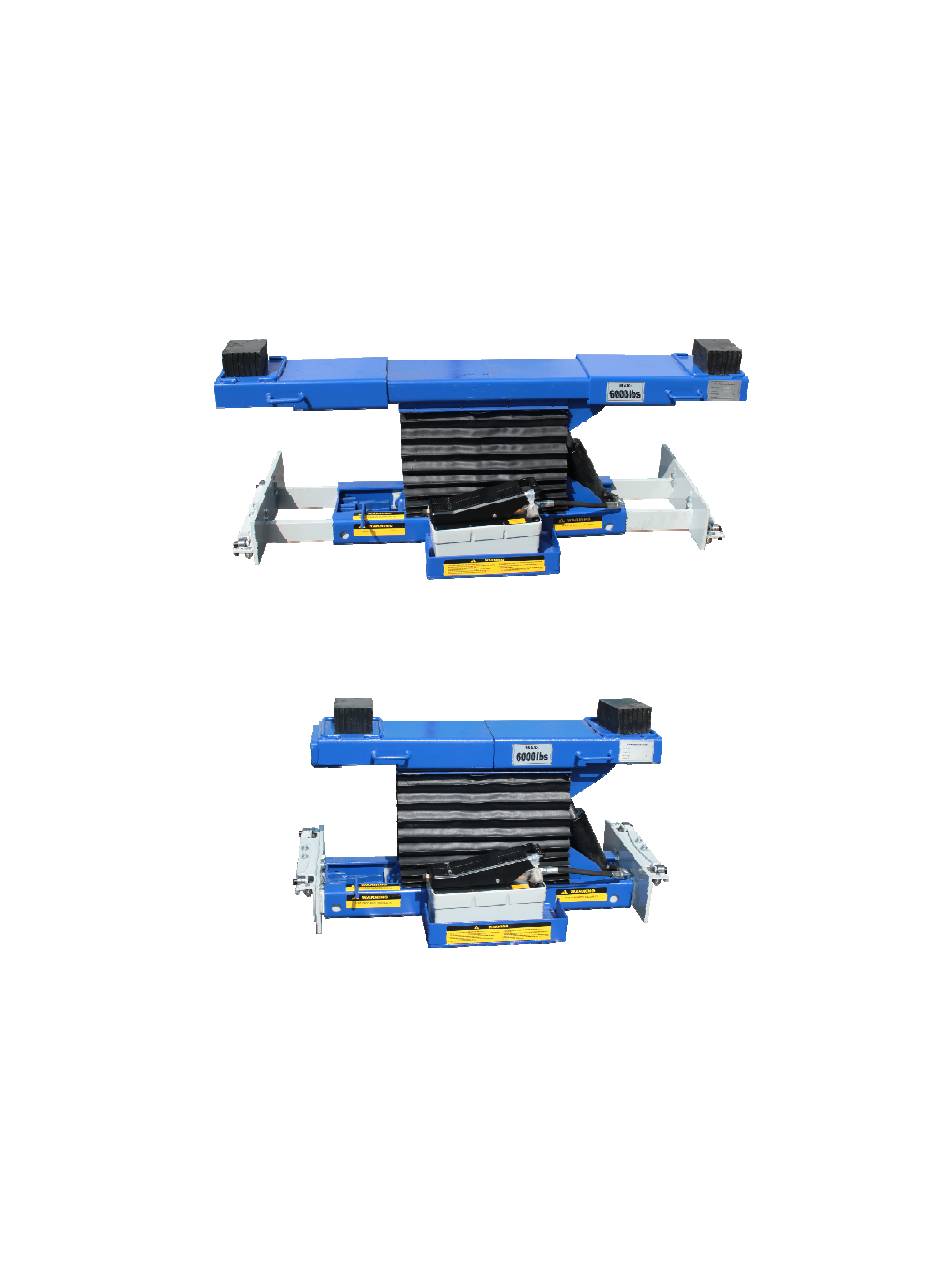

- Page 1 RAJ-6K Series Rolling Bridge Jacks 6,000 lb. Capacity (High Mount & Low Mount) RAJ-6K-H (High Mount) RAJ-6K-L (Low Mount) ASSEMBLY & OPERATION INSTRUCTION MANUAL Oct. 2017...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Specifications......................2 Description & Features.....................3 Installation Instructions.....................3 Safety Instructions....................4 Operating Instructions....................4 Maintenance Instructions..................5 Trouble Shooting...................... 6 Exploded View......................7 Parts List........................8 - 9 Warranty........................10 SPECIFICATIONS Model Numbers: RAJ-6K-H & RAJ-6K-L Size *Height Pad Width Roller Body Asy Capacity L x W x H (Min/Max) -
Page 3: Description & Features

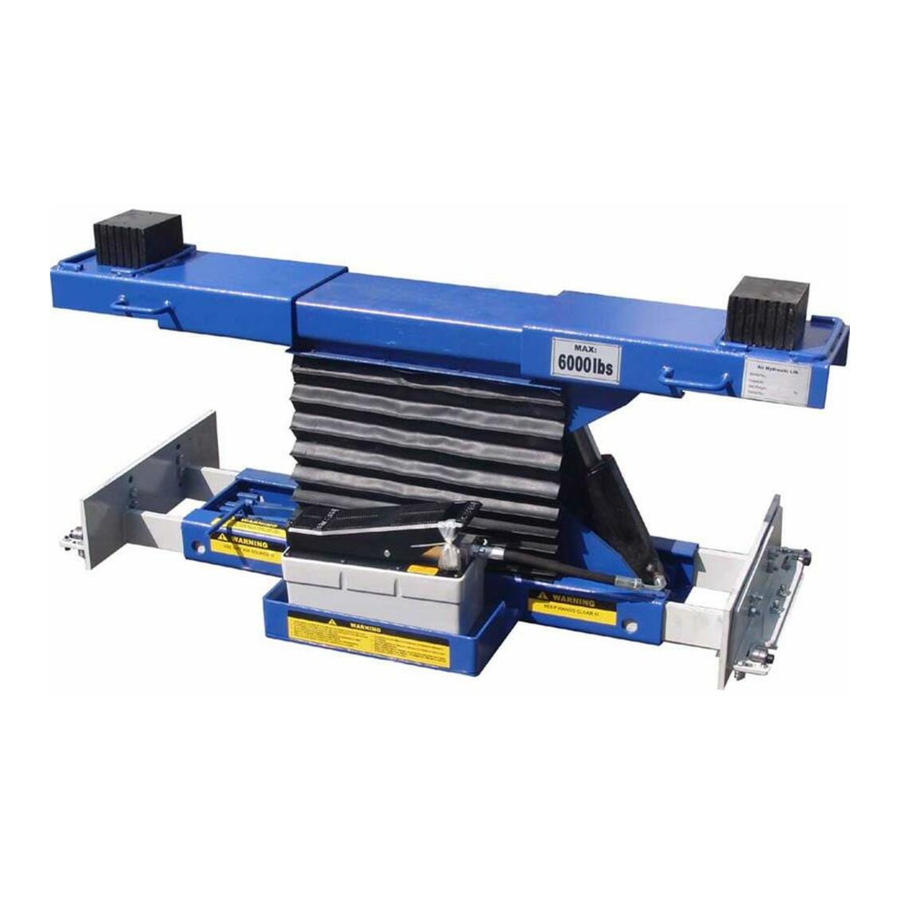

DESCRIPTION This RAJ-6K-H & RAJ-6K-L Rolling Jacks are pneumatic / hydraulic operated, scissor-style rolling bridge jacks, designed to be mounted on four post or scissor lift’s jack rails, between runways. Both models are capable of lifting the wheels off runways to provide ‘wheels free’ service for brake, suspension, tire repairs and maintenance. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS • Never allow unauthorized or untrained persons to operate the rolling jack. • Thoroughly train all employees in the use and care of rolling jack. • Never overload rolling jack. Capacity of rolling jack is stated on the nameplate. Capacity should not be exceeded. -
Page 5: Maintenance Instructions
Air / Hydraulic Pump Diagram Air Fitting / Inlet Port Fitting / Hydraulic Hose Press to Raise Press to Lower Fig 2. MAINTENANCE INSTRUCTIONS WARNING! If you are not completely familiar with automotive lift maintenance procedure, please contact your distributor for instructions before any practice. TO AVOID PERSONAL INJURY, permit only qualified personnel to perform maintenance on this equipment. -
Page 6: Trouble Shooting
TROUBLE SHOOTING TROUBLE CAUSE REMEDY Rolling Jack will 1. Jack loaded beyond capacity. 1. Use Jack only to rated capacity. not raise after 2. External fluid leak at pump, 2. Repair leak, refill reservoir.* contacting load hose or cylinder. 3. Internal leakage. 3. -
Page 7: Exploded View
EXPLOED VIEW RAJ-6K-H (High Mount) Roller Body RAJ-6K-L (Low Mount) Roller Body RAJ-6K-H RAJ-6K-L (High Mount #27) (Low Mount #29) Roller Body Assy. Roller Body Assy. RAJ-6K-H & RAJ-6K-L Oct. 2017... -
Page 8: Parts List
PARTS LIST ITEM Tux P/N M-Ref P/N DESCRIPTION RAJ6K-001 LJ01-00007-000 Rubber Block RAJ6K-002 LJ01-02000-000 Sliding Arm RAJ6K-003 LJ01-08000-000 Arm Weldment RAJ6K-004 LJ01-00005-000 Side Curtain RAJ6K-005 LJ01-00004-000 Screw, M6 x 8mm RAJ6K-006 LJ01-00009-000 Shaft #3 RAJ6K-007 LJ01-00001-000 Slide Block #1 RAJ6K-008 LJ01-00006-000 Slide Block #2 RAJ6K-009... - Page 9 RAJ-6K-H (High Mount) Roller Body Assembly Parts (#27) ITEM Tux P/N M-Ref P/N DESCRIPTION 27-1 RAJ6K-027.1 5206-00006-000 Lock Nut, M6 27-2 RAJ6K-027.2 5301-00006-000 Flat Washer, D6 27-3 RAJ6K-027.3 LJ04-01001-000 Small, Side Bearing (High Mount) 27-4 RAJ6K-027.4 LJ04-01003-000 RB Support Frame 27-5 RAJ6K-027.5 5104-06030-000...
-
Page 10: Warranty
RAJ-6K-H & RAJ-6K-L Oct. 2017...
