User Manual

Premium Bluetooth

Class 1 Headset

Table of Contents

Need help?

Do you have a question about the Dragon and is the answer not in the manual?

Questions and answers

Summary of Contents for Callpod Dragon

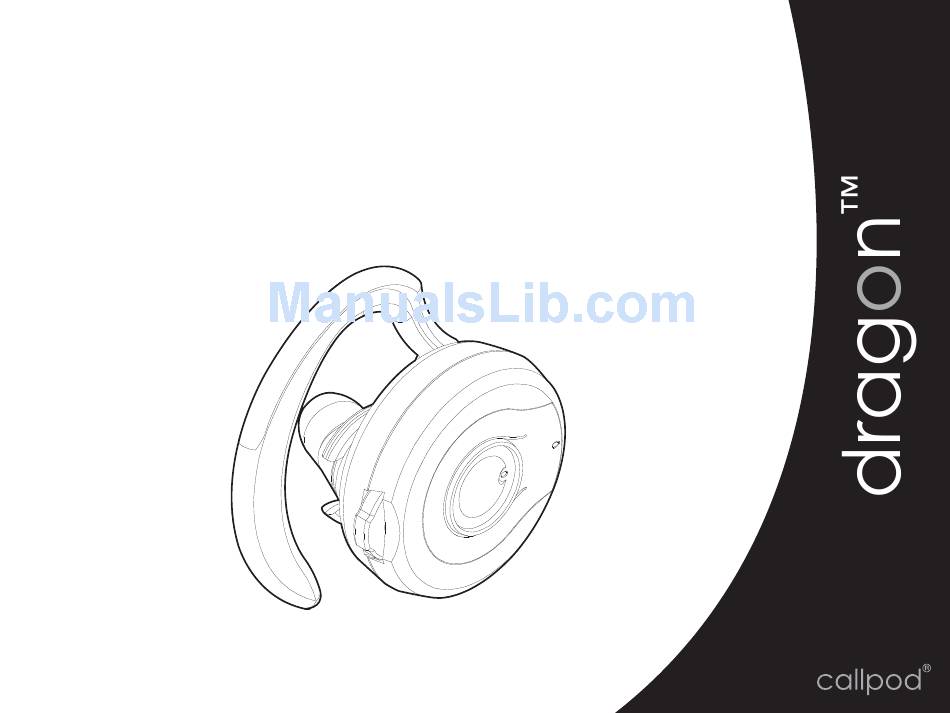

Page 1: User Manual
User Manual ® Premium Bluetooth Class 1 Headset...
Page 3: Table Of Contents
12. Pairing the Headset...17 13. Disconnecting the Headset...18 14. Reconnecting the Headset...19 15. Operation...20 16. Advanced Features...22 17. Using the Headset with Phoenix 18. Battery Information...25 19. Copyright Notice...26 callpod ® Copyright © 2007 Callpod, Inc. Patents Pending ™ ...24...
Page 4 20. Approved Accessories...27 21. Notice to International Users...28 22. Callpod Limited Warranty...29 ® Exclusions...30 Who Is Covered?...32 What Will Callpod Do?...32 What Other Limitations Are There?...34 23. Product Registration...36 24. Export Law Assurances...37 Copyright © 2007 Callpod, Inc. Patents Pending callpod ®...
Page 5: General Safety Information
O n l y u s e a p p r o v e d C a l l p o d accessories and components with your Dragon headset to ensure proper operation. Use the Dragon headset responsibly while driving.
Page 6: Introduction
[100m] when connected to another class-1 device—ideal for small office, field and home environments. In addition, the Dragon can be connected to two devices at the same time, allowing a user to answer calls on either device. For further help, please contact Callpod by visiting us at: www.callpod.com or by phone: 1-800-951-CPOD...
Page 7: Warning - Volume Levels: Always Protect Your Hearing
Exposure to sound at a close range, even at lower levels, could potentially result in hearing loss. The Dragon headset can reach a maximum volume of approximately 100 decibels. This volume is controlled by the user through both the headset volume control as well as via the mobile device that it is paired to (e.g.
Page 8: Care And Maintenance
• Do not clean the headset with harsh chemicals, and keep it away from liquids. • Do not expose the headset to extreme temperatures. • Do not paint or apply coatings or stickers to the headset, as you might affect moving parts, damage internal components, or block or impede the microphones.
Page 9: Certification
Certification The Dragon is certified by UL, CE, FCC, PSE and Bluetooth for safety and ® reliability. Unauthorized changes or modifications to this device may impair your ability to operate this device and will void the warranty. This device complies with Part 15 of the FCC Rules. Operation is subject to the...
Page 10: About Bluetooth Technology
Technology ® Bluetooth technology allows devices to communicate without wires over a short ® range. The Dragon is compliant with Bluetooth Specification 2.0, which supports ® the Headset Profile 1.1 and Hands-free Profile 1.5. To learn more about Bluetooth and the applications of the technology, ®...
Page 12: What's Included
What’s Included The Dragon headset package contains the following: a Class 1 Bluetooth headset (MHC1-0001) ® b Large ear wrap (HSEW-0001) c AC/DC wall adapter (ACDC-0002) d Car charger (CCAD-0002) e USB charging cable (USBC-0001) f 5-pin mini USB adapter for Chargepod (MUCA-0001) ®...
Page 13: Headset Components
Power/volume control button b Dual microphones c Multifunction button d Red/blue LED e Charging port Ear bud g Speaker callpod ® Copyright © 2007 Callpod, Inc. Patents Pending...
Page 14: Charging
Charging Before using your Callpod Dragon headset, you must fully charge the headset. ® Charge the Dragon using the included wall adapter, car charger, USB cable or with the Chargepod (base unit sold separately) using the included Chargepod ® adapter. The Dragon is powered by an internal lithium-ion rechargeable battery.
Page 15 Charging (3 ways) The charging components that are included with the Dragon allow you to charge via USB port on your computer, AC/DC wall adapter or car charger. computer/laptop AC/DC wall adapter car charger callpod ® Copyright © 2007 Callpod, Inc. Patents Pending...
Page 17 Charging with chargepod ® To charge multiple Dragon headsets or the Dragon headset with other devices simultaneously, use the Callpod Chargepod (sold separately) with the included ® adapter. For more information about Chargepod, visit www.callpod.com/chargepod. callpod ® Copyright © 2007 Callpod, Inc. Patents Pending...
Page 18: Turning The Headset On And Off
Turning the Headset On and Off To turn the headset on, press the power/volume control button until the red LED illuminates. The headset will play an ascending tone and the LED will flash red and blue indicating that it is ready to pair.
Page 19: Pairing The Headset
You have 100 seconds to pair the Dragon to your cell phone or PC before it enters a low power sleep mode. If the headset is not paired within 100 seconds, simply push the power/volume control button and it will enter discoverable mode for another 100 seconds.
Page 20: Disconnecting The Headset
Dragon in discoverable mode. To do this, simply push the power/volume control button once. The blue and red LEDs will flash and you may now begin pairing the Dragon to your second device.
Page 21: Reconnecting The Headset
Reconnecting the Headset When powered on, the Dragon headset will automatically reconnect to the last connected phone. If the headset is on but not connected to any devices, pressing the multifunction button will establish a connection to the last connected phone.
Page 22: Operation
Alignment. The two microphone holes on the headset should make a line that points to your mouth when the Dragon is in use. Placing a call. Once the Dragon headset is connected to your phone, you may dial your phone as usual. The headset will automatically turn on when the call is placed.
Page 23 Placing a call with voice dialing (if supported by phone). With no call present, press the multifunction button and speak the name of the person you want to call. For the best results, record the voice tags for voice dialing using the Dragon headset.
Page 24: Advanced Features
® To connect two devices simultaneously, refer to the instructions on page 17. When connected to two devices, the Dragon headset is able to control call handling through the multifunction button. If you are on your cell phone and a call comes in from your Skype account, you can answer the call by pressing ®...
Page 25 250,000 sq. foot [76,200 sq. meter] area (in open spaces). To connect two headsets together: Make sure Dragon A is in a discoverable state (flashing red and blue LED) Power off Dragon B Power on Dragon B while holding the multifunction button. The blue LED will flash repeatedly.
Page 26: Using The Headset With Phoenix
™ ™ The Dragon headset is configured to operate in 2-way communication mode when used with the Phoenix conferencing unit. When connected to the Phoenix, the multifunction button opens and closes the audio channel. To learn more about this function and the Callpod Phoenix, go to: ®...
Page 27: Battery Information
A rechargeable lithium-ion battery powers the Dragon headset. The full performance of a new battery is achieved only after two or three complete charge and discharge cycles. To charge the Dragon headset, use only Callpod ® designated power supplies and adapters.
Page 28: Copyright Notice
® by copyright. Copying, reproducing, reverse engineering or distributing any information of Callpod-related products hardware or software without a formal and written authorization and license from Callpod, Inc. is prohibited and may result in legal action. callpod ®...
Page 29: Approved Accessories
Callpod is not responsible for devices damaged while using non-approved products and or accessories. The use of non-Callpod-branded accessories (e.g. power adapters and power cables) with your Dragon headset will void your warranty. For a list of approved Callpod accessories, please visit us at: www.callpod.com callpod ®...
Page 30: Notice To International Users
Prior to traveling outside of the United States of America, please make sure to have a compatible plug adapter to use internationally. For a list of universal outlet adapters for recommendation and purchase, please visit us at: www.callpod.com callpod ® Copyright © 2007 Callpod, Inc. Patents Pending...
Page 31: Callpod Limited Warranty
This limited one-year warranty is a consumer’s exclusive remedy and applies as follows to new Callpod products and accessories purchased by consumers. This warranty is limited to one-year from the time of purchase by the original consumer (i.e.
Page 32: Exclusions
Callpod , are excluded from coverage. ® Use of Non-Callpod Products and Accessories. Defects or damage that result from the use of non-Callpod-branded or certified products, accessories, software or other peripheral equipment are excluded from coverage.
Page 33 (b) broken seals or seals that show evidence of tampering; (c) mismatched serial numbers; or (d) nonconforming or non-Callpod housings or components, are excluded from coverage. Communication Services. Defects, damage, or the failure of products, accessories or software due to any communication service or signal you may subscribe to or use with the products, accessories, or software is excluded from coverage.
Page 34: Who Is Covered
What Will Callpod ® Under this warranty, Callpod, at its sole discretion, will at no charge either repair, replace or refund the purchase price of any covered product, accessory or software. We may use functionally equivalent reconditioned/refurbished/pre- owned or new products, accessories or parts.
Page 35 (b) a written description of the problem; (c) the name of your service provider, if applicable; (d) the name and location of the installation facility if applicable and (e) your mailing address and telephone number. callpod ® Copyright © 2007 Callpod, Inc. Patents Pending...
Page 36: What Other Limitations Are There
WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL CALLPOD BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY...
Page 37 This warranty may give you specific legal rights, and you may also have other rights that vary from state to state or from one jurisdiction to another. callpod ® Copyright © 2007 Callpod, Inc. Patents Pending...
Page 38: Product Registration
Register products online at: www.callpod.com/product/registration or by phone: 1-800-951-CPOD Product registration is an important step towards enjoying your new Callpod ® product. Registering helps us facilitate warranty service and permits us to contact you should your product require an update or other service. Registration is not required for warranty coverage.
Page 39: Export Law Assurances
America. The Government of the United States of America may restrict the exportation or re-exportation of this product to certain destinations. For further information contact the U.S. Department of Commerce and International Trade Commission. callpod ® Copyright © 2007 Callpod, Inc. Patents Pending...
Page 40 ® trademark of Callpod, Inc. The Bluetooth wordmark and logos are owned by Bluetooth SIG, Inc. The use of such marks by Callpod, Inc. is under license. All other trademarks included herein are property of their respective owners. Design and specifications subject to change...

This manual is also suitable for:

Cdhs-0011 Cdhs-0021
