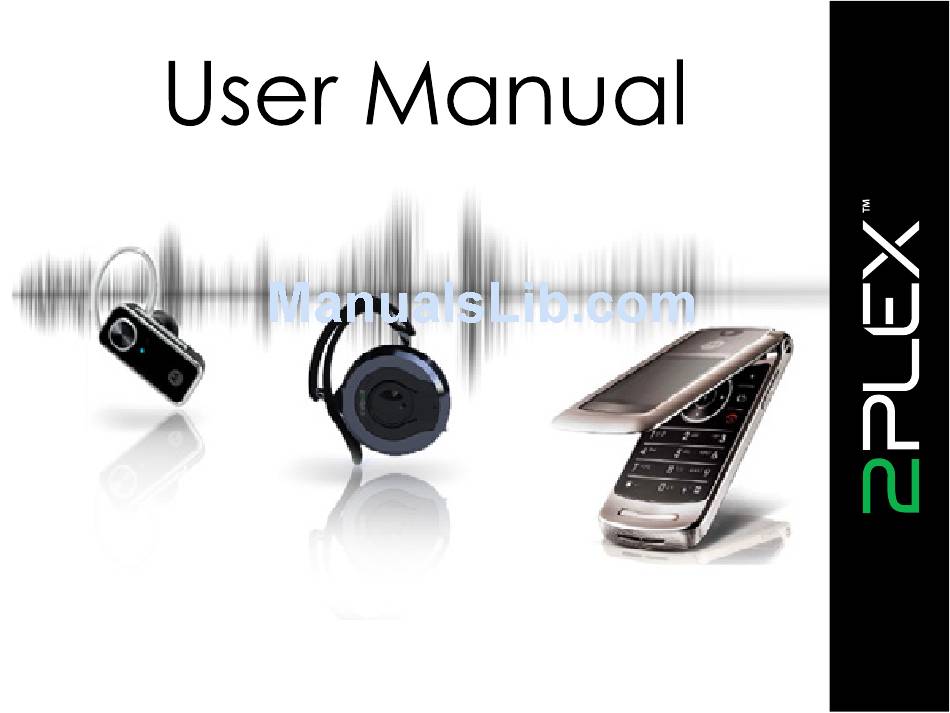

- Page 1 Multi-Plex Your Dragon with the Power of 2...
-
Page 3: Table Of Contents
5. Pairing the Headset...6 6. Placing a Call with Two Headsets...7 7. Reconnecting the Headset...8 8. Disconnecting the Headset...9 9. Operation...10 10. Mic Alignment...11 11. About Bluetooth Technology...12 ® 12. Copyright Notice...13 13. Certification...14 callpod ® Copyright © 2008 Callpod, Inc. Patents Pending. -
Page 4: Introduction
This software allows you to join a second Bluetooth headset (any brand) into your phone call for a private and secure mobile conference. 2PLEX utilizes the Dragon’s 100m (328 ft) range when connected to a second Callpod Dragon Bluetooth headset or any other class-1 Bluetooth headset. 2PLEX is a proprietary and unique mobile communication software that was pioneered by Callpod. -
Page 5: Warning - Volume Levels: Always Protect Your Hearing
Exposure to sound at a close range, even at lower levels, could potentially result in hearing loss. The Dragon headset can reach a maximum volume of approximately 100 decibels. This volume is controlled by the user through both the headset volume control as well as via the mobile device that it is paired to (e.g. -
Page 6: Technical Specifications
Specifications Connectivity Profile Support Frequency Band RF Output Working Range Copyright © 2008 Callpod, Inc. Patents Pending. Bluetooth 2.0/AFH ® Hands-free 2.4-2.4835 GHz Class 1 <100m (328ft) callpod ®... -
Page 7: Downloading And Installing 2Plex
Callpod Updater. This authentication code must be entered when prompted to ensure correct installation of 2PLEX software. To install 2PLEX open the Callpod Updater and plug in your Dragon headset (using the included USB data cable) to any computer/laptop. Select the 2PLEX update and enter your authentication code when prompted. -
Page 8: Pairing The Headset
Pairing the Dragon to a 2nd Headset To pair the Dragon to another standard Bluetooth headset of your choice, first make sure your Dragon is turned OFF. Next, press the power/volume control button AND the multifunction button at the same time until the blue LED illuminates. -
Page 9: Placing A Call With Two Headsets
If necessary, instruct your phone or computer to complete the connection with the Dragon. You only need to pair the Dragon with your phone once; simply select the Dragon from the menu on your phone when you wish to use it. -
Page 10: Reconnecting The Headset
Reconnecting the Headset When powered on, the Dragon headset will automatically reconnect to the last connected headset and phone. If the headset is on but not connected to any devices, pressing the multifunction button will establish a connection to the last connected headset and phone. -
Page 11: Disconnecting The Headset
Disconnecting the Headset To disconnect your headset from your current device, you can: Shut the Dragon off. To turn off the headset, press and hold the power/volume control button until the red LED turns off. Clear the pairing memory. To clear the pairing memory of the Dragon, press and hold the multifunction button until the LED lights blue and red at the same time. -
Page 12: Operation
Placing a call with voice dialing (if supported by phone). With no call present, press the Dragon’s multifunction button and speak the name of the person you want to call. For the best results, record the voice tags for voice dialing using the Dragon headset. -
Page 13: Mic Alignment
In order for the headset to function properly, the two microphones must be positioned towards your mouth. This is easy to do. Once the headset is put on your ear, simply rotate the headset towards your mouth until the ear bud is compressed comfortably against your ear. -
Page 14: About Bluetooth Technology
Technology ® Bluetooth technology allows devices to communicate without wires over a short ® range. The Dragon is compliant with Bluetooth Specification 2.0, which supports ® the Headset Profile 1.1 and Hands-free Profile 1.5. To learn more about Bluetooth and the applications of the technology, ®... -
Page 15: Copyright Notice
® by copyright. Copying, reproducing, reverse engineering or distributing any information of Callpod-related products hardware or software without a formal and written authorization and license from Callpod, Inc. is prohibited and may result in legal action. callpod ®... -
Page 16: Certification
Certification The Dragon is certified by UL, CE, FCC, PSE and Bluetooth for safety and reliability. ® Unauthorized changes or modifications to this device may impair your ability to operate this device and will void the warranty. This device complies with Part 15 of the FCC Rules. Operation is subject to the...
