ASME A112.18.1 / CSA B125.1
ICC/ANSI A117.1

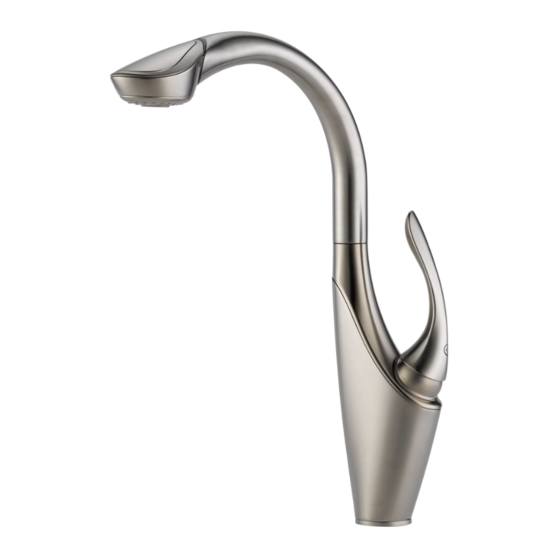

Models/Modelos/Modèles
64255LF, 64355LF & 64955LF
Series/Series/Seria
VUELO™
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
WARNING: THIS FAUCET IS NOT TO BE USED WITH
PORTABLE DISHWASHERS! / ADVERTENCIA: ¡SESTA
LLAVE NO SE DEBE UTILIZAR CON MAQUINAS
LAVAPLATOS PORTATILES! / AVERTISSEMENT: ON NE
DOIT PAS BRANCHER UN LAVE-VAISSELE PORTATIF
SUR CE ROBINET!
For easy installation of your
Brizo
faucet you will need:
®
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and
maintenance information.
Para instalación fácil de su llave
Brizo
usted necesitará:
®
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
Pour installer votre robinet
Brizo
facilement, vous devez:
®
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
PULL-DOWN KITCHEN, BAR AND
70006
HI ARC TOUCH FAUCETS
LLAVES DE AGUA ELEVADAS,
DESLIZABLES HACIA ABAJO,
PARA COCINAS Y BARES / PREP
ROBINETS TACTILES À BEC HAUT
RÉTRACTABLE POUR ÉVIER DE BAR
OU D'ÎLOT
Articles dont vous pouvez avoir besoin:
70006
1
You may need
Usted puede necesitar
3/10/11
Rev. A
Advertisement
Related Manuals for Brizo VUELO 64255LF
Summary of Contents for Brizo VUELO 64255LF

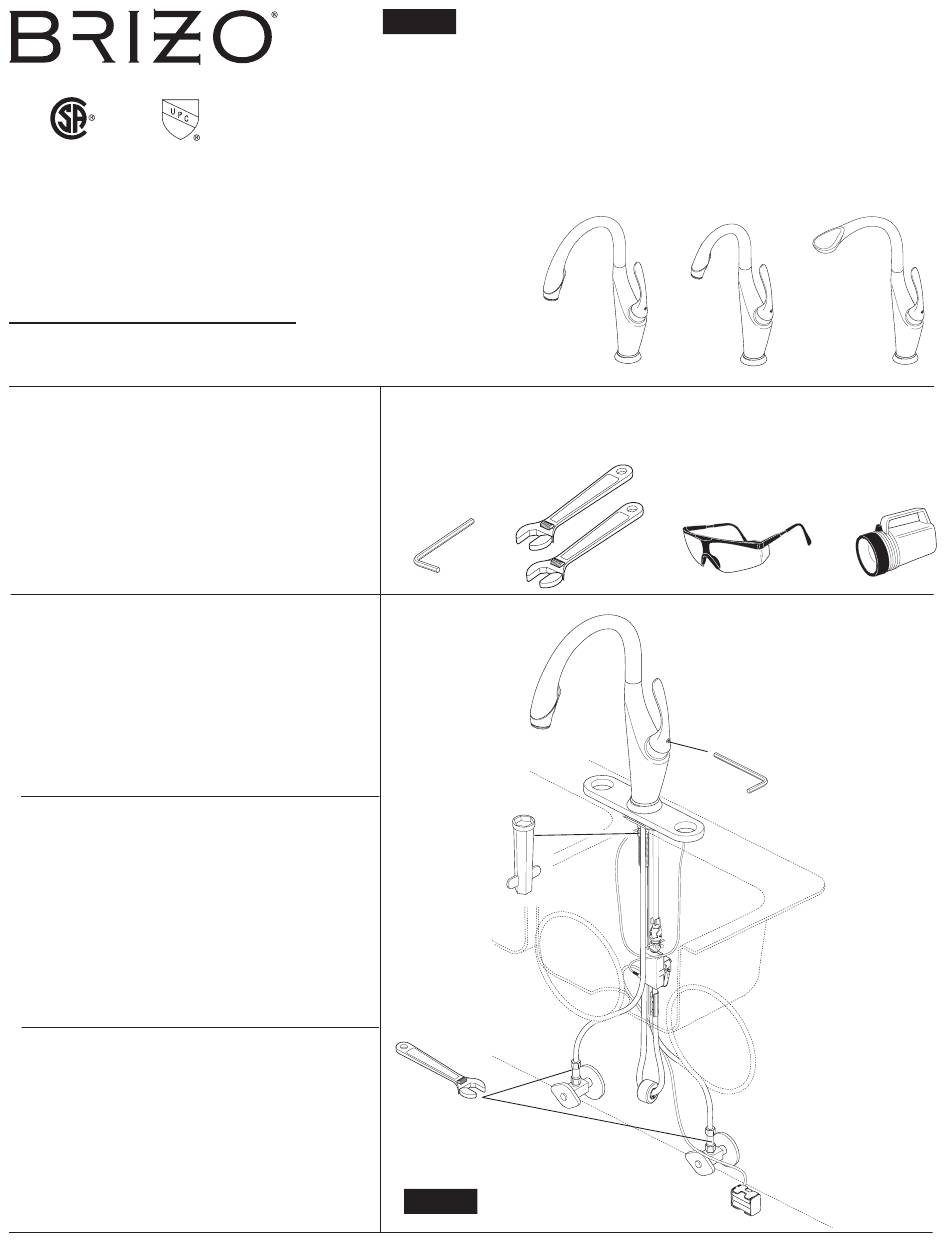

- Page 1 LLAVE NO SE DEBE UTILIZAR CON MAQUINAS LAVAPLATOS PORTATILES! / AVERTISSEMENT: ON NE DOIT PAS BRANCHER UN LAVE-VAISSELE PORTATIF SUR CE ROBINET! For easy installation of your Brizo faucet you will need: ® • To READ ALL the instructions completely before beginning.
- Page 2 1-877-345-BRIZO (2749) (in the U.S. and Canada) or by writing to: this warranty applying except the duration of the warranty. This warranty is applicable to Brizo ®...
- Page 3 RP70570▲ RP70565▲ Spout Assembly Handle, Set Screw & Button RP64473▲ Ensamble del Dispenser Assembly Manija, Tornillo de presión (Accessory Order Only) Tubo de Salida y Botón Ensamble del Dispensador Poignée, Vis de calage (Orden de Accesorio Solamente) et Bouton Distributeur RP70576▲...
- Page 4 Hose Installation For this step, use the parts shown above. Feed hose assembly (1) through spout (4) and hub (5). Screw the threaded fitting of hose (1) into spray head (2) to prevent the Slide spout assembly (4) onto hub (5). Use caution not to pinch hose from being pulled into the spout until you are ready to flush the lines.
- Page 5 Top Mount Sinks / Instalación por Encima / Bâti supérieur 1 1/4" Min. From Center Line To Sink Bowl. 1 1/4" Mínimo. De la línea de centro para hundir el tazón de fuente. 1 1/4" ; Minimal. De la ligne centrale pour descendre la cuvette.
- Page 6 Under Mount Sinks / Instalación por Debajo / Sous le bâti 1 1/4" Min. From Center Line To Sink Bowl. 1 1/4" Mínimo. De la línea de centro para hundir el tazón de fuente. 1 1/4" ; Minimal. De la ligne centrale pour descendre la cuvette.
- Page 7 Solenoid Installation Then slide adapter/solenoid assembly onto tube (4) and snap on swing For this step, use the parts shown above. clip (5). Pull down moderately to ensure connection has been made. Note: Metal yoke (6) on solenoid may be touch sensitive (activate Assemble adapter (1) and solenoid (2) together using clip (3), as shown.
- Page 8 Remove hose guide and slide hose weight (1) over end of hose (2). Push hose end (1) onto solenoid assembly outlet (2). Attach clip (3) over hoses as shown. Pull down moderately to ensure connection has been made. Quite la guía de la manguera y deslice la pesa (1) de la manguera por Coloque, presionando, el extremo de la manguera (1) en la salida (2) del ensamble del solenoide.
- Page 9 Wire Connections For this step, use the parts shown above. Briefly touch the cold stop or other ground with hand to dissipate any static charge. Attach wire (1), from the solenoid assembly, onto the groove on the spout mounting nut (2). Orient clip (1) so wire exits away from wire (3). Conexiones de Alambre Para este paso, utilice las piezas mostradas anteriormente.
- Page 10 Wire (3), extending from faucet base, is shipped with a Connect battery cable (1), from the solenoid, to battery protective plastic cap (4). Remove this by grasping the box (2). Load 6 “AA” batteries (3) into the battery box For this step, use the parts plug and pulling off the cap.
- Page 11 Water Line Connections Custom Fit Connections WARNING: Do not use pipe dope or other sealants Important: To ensure proper operation of your If you determine the PEX supply tubing for this on water line connections. plumbing it is essential to install these check faucet is too long and must be shorter to create an valve assemblies onto your supply stops.
- Page 12 Incorrect Installation Correct method Instalación Incorrecta Método Correcto Installation Incorrecte Bonne méthode Do not install sleeve Ensure cut is straight. upside down. No instale la manga Asegúrese que el corte Custom Fit Connections - Plastic Sleeve Installation Instructions boca abajo. esté...
- Page 13 Optional Opcional Facultatif Soap Dispenser Installation Turn on hot and cold water supplies (1). Pull the hose assembly (2) out of the spout and remove the spray head (3). Note: Model 64955LF sprayer cannot be (Accessory Order Only - RP64473 Specify Finish) disconnected from hose.
- Page 14 Optional Opcional Facultatif Manual Bypass of Electronic Features Remove the battery pack (1) Momentarily connect the from the battery cable (2). “+” terminal of the battery (1) to the “-” terminal of the sole- noid (2) and the “-” terminal Disconnect the two spade of the battery to the “+”...
- Page 15 Cleaning the Screen / Filtro de Limpieza: / Nettoyage du filtre SHUT OFF WATER SUPPLIES. Check and clean screen (7) located in solenoid valve (8). CIERRE LOS SUMINISTROS DE AGUA. Compruebe y limpie la pantalla (7) situada en la válvula electromagnética (8). FERMEZ LES ROBINETS D’ALIMENTATION.
- Page 16 Solenoid Troubleshooting Note: Normal operation of the faucet will turn off water flow if faucet is not 3. If your LED base indicator is not displaying any lights, touched for 4 minutes. a. Check to make sure the spout connector, RP53233 is attached to the spout and the wire from the solenoid / electronics kit.
